Description

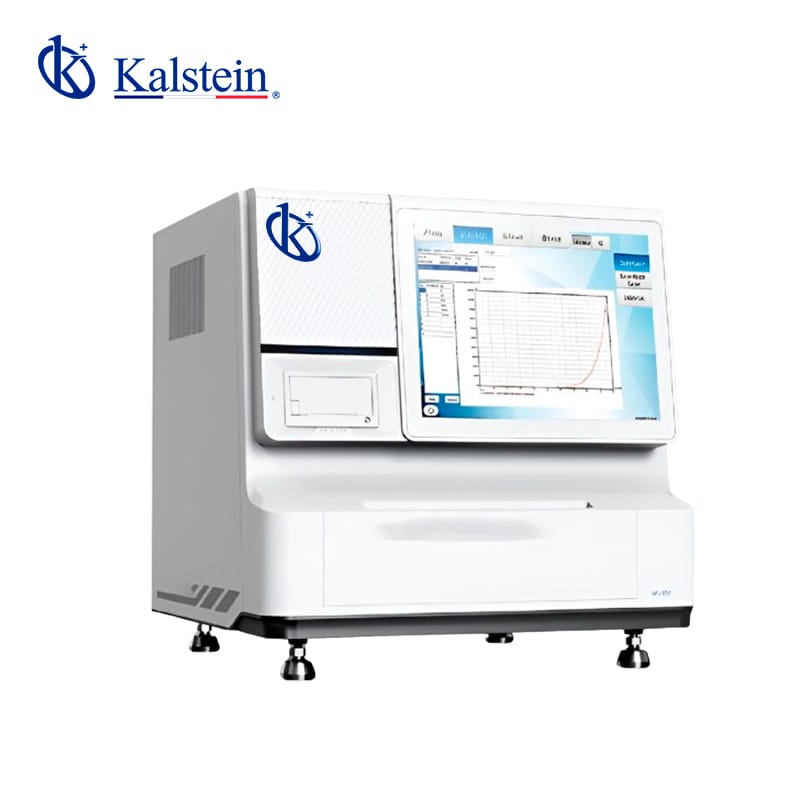

- This advanced chemiluminescent immunoassay analyzer offers double independent chambers, allowing for efficient emergency functions. It operates as a full-automatic system, accommodating 16-channel parallel tests with flexible test item combinations.
- The test time varies according to the specific test item, and it is compatible with various sample types including human plasma, serum, and urine, depending on the reagent used. Utilizing CLEIA and magnetic separation methodology, it ensures precise and reliable results. The incubation temperature ranges from 37°C to 42°C, and the sample volume required ranges from 30 to 200 microliters, tailored to the reagent type.
Technical Specifications
Model | YR06388 |
Spectrum | 300-650nm |
Data storage
|
Patient data: >100000
|
QC Data: >100000
|
|
Calibration Data: >100000
|
|
Dimensions |
520 (W) * 550 (D) * 550 (H) mm
|
Weight | 55kg (approx) |
Power supply | 100-240 Vac |
Power frequency | 50Hz |
Input power | 200VA |
Printer | Built-in |
Computer | Built-in |
Screen |
LCD touch-screen
|
Operation |
24h operation (standby) recommended
|
