Viscometers are essential instruments used in various laboratory applications to measure the viscosity of liquids. Understanding viscosity is crucial for ensuring product quality in industries such as food, pharmaceuticals, and cosmetics. By selecting the right viscometer, you can achieve accurate results that are vital for your processes.

Choosing a viscometer involves considering factors such as the type of fluids being measured, the required precision, and the operational environment. Investing in a high-quality viscometer not only enhances measurement accuracy but also contributes to the overall efficiency of your laboratory operations.

View category

What you should know before selecting a viscometer and making an investment

Key factors to consider

When selecting a viscometer, it’s important to evaluate the measurement range and the viscosity of the fluids you will be testing. Different viscometers are designed for specific viscosity ranges, so understanding your needs will help you choose the right model. Additionally, consider the temperature and pressure conditions in which the viscometer will operate.

Another factor is the type of viscometer technology, which includes rotational, capillary, and falling ball methods. Each technology has its advantages and is suited for different applications, making it vital to align your choice with your specific laboratory requirements.

Market price range

The price of viscometers can vary significantly based on their type, features, and accuracy. Basic models may start at a few hundred dollars, while advanced viscometers with digital interfaces and high precision can cost several thousand dollars. Establishing a budget that reflects your laboratory's needs and expected usage is crucial when selecting a viscometer.

Consider the total cost of ownership as well, which includes maintenance, calibration, and potential repairs. Investing in a reliable viscometer may yield better long-term value, reducing the need for frequent replacements or repairs.

Value for money

When evaluating viscometers, consider their features relative to the price. A higher initial cost may be justified if the viscometer offers enhanced accuracy, durability, and ease of use. Compare different models and brands, focusing on their specifications, warranty, and support services to ensure you receive good value for your investment.

Moreover, consider the adaptability of the viscometer for future applications. A versatile instrument can save costs in the long run, as it may serve various purposes as your laboratory needs evolve.

Expected lifespan based on use and maintenance

The lifespan of a viscometer largely depends on its design, frequency of use, and maintenance practices. Regular calibration and proper cleaning can extend the life of your instrument, ensuring consistent performance. It's essential to follow the manufacturer's guidelines on maintenance to prevent early wear and tear.

Investing in high-quality viscometers can lead to longer life spans, reducing replacement costs. Additionally, consider the availability of spare parts and service support when selecting a model, as these can impact long-term usability.

VISCOMETER KALSTEIN

Discover viscometer for your laboratory

Explore our extensive range of viscometers designed to meet the diverse needs of laboratories. Our products combine advanced technology with user-friendly interfaces, ensuring accurate viscosity measurements for various applications. Whether you need a high-temperature viscometer or a precision analyzer, we have the right solution.

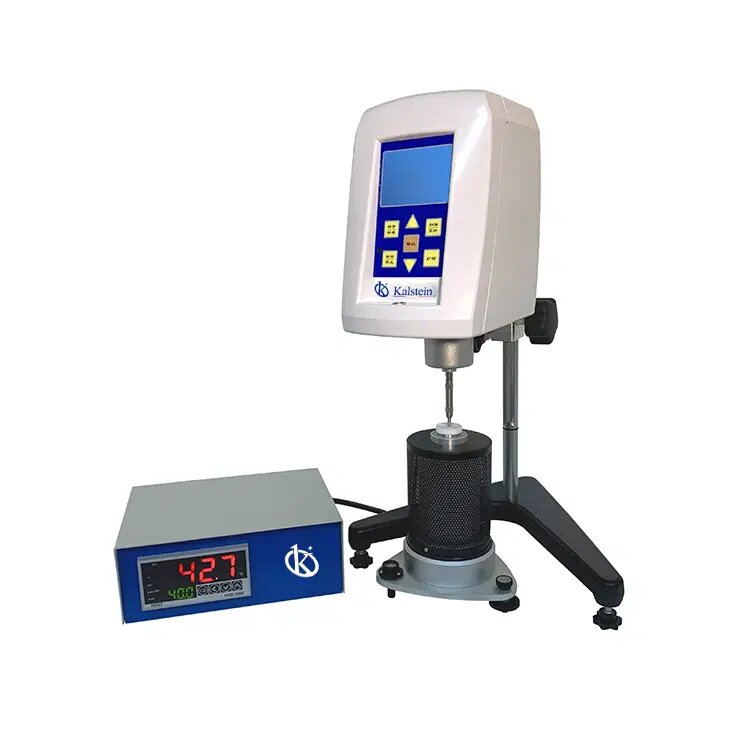

High Temperature Viscometer YR05843 // YR05846

The High Temperature Viscometer YR05843 // YR05846 is an advanced instrument designed for precise viscosity measurements at elevated temperatures. Thi

View product

Viscosity Measuring Analyzer Laboratory Viscometer YR05855 - YR05856

The Viscosity Measuring Analyzer Laboratory Viscometer YR05855 - YR05856 is a state-of-the-art tool designed for precision and reliability in viscosit

View product

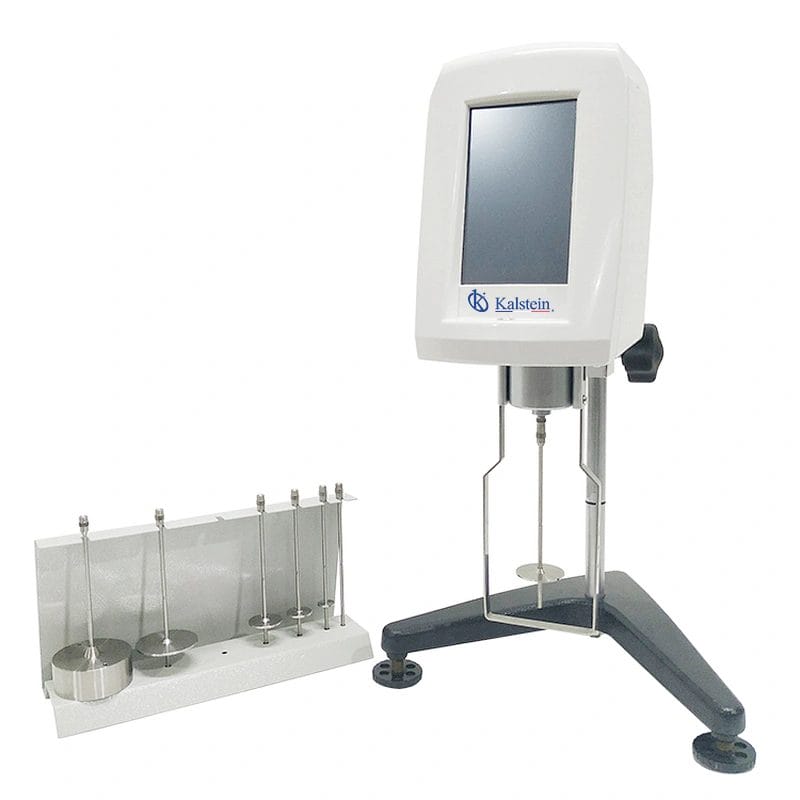

Brookfield Viscosity Tester YR05860 // YR05864

The Brookfield Viscosity Tester YR05860 // YR05864 offers seamless integration of touch-screen technology, ensuring fast and precise viscosity measure

View product

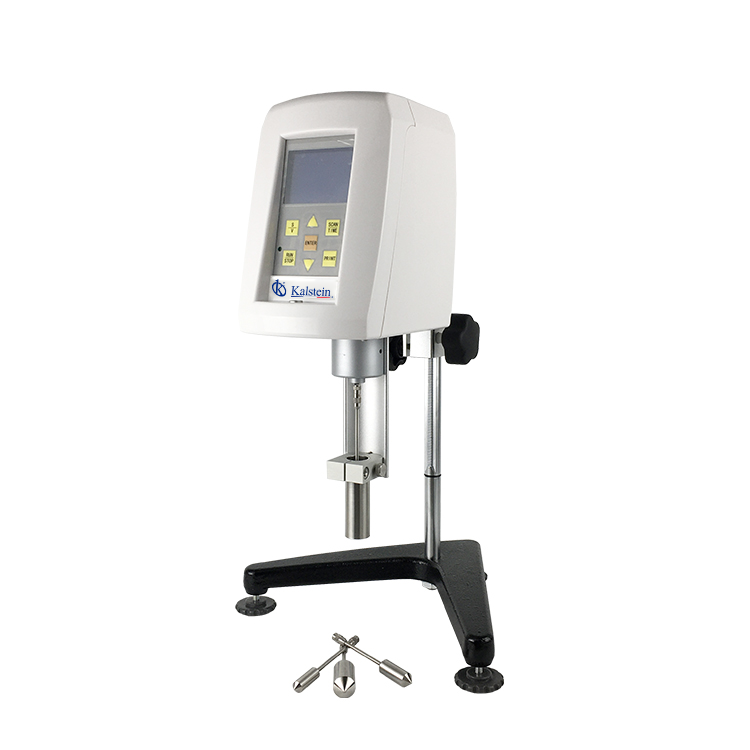

Digital Small Sample Viscometer YR05840 // YR05842

The Digital Small Sample Viscometer YR05840 // YR05842 is a cutting-edge instrument designed for high-temperature viscosity measurements. Utilizing a

View product

Our best-selling viscometer

Digital rotary viscometer YR06639//YR06644

The YR06639//YR06644 Series Digital Rotary Viscometer is a high-precision tool designed for advanced fluid analysis. With a measurement capacity reaching up to 320 million mPa.S, this equipment is the ideal solution for laboratories and industries working with high-viscosity materials. Its intuitive design allows operators to obtain fast and reliable results, offering accuracy comparable to the most demanding international standards. It is the perfect device for those seeking cutting-edge technology at a competitive cost without sacrificing precision.

Design and Technology

This equipment features a control panel with a touch keyboard and a large LCD screen that facilitates the reading of complex data. Key technological innovations include:

Auto-Scanning: The system recommends the optimal combination of rotor and speed for unknown samples.
Dual Connectivity: Includes two RS232 ports, allowing simultaneous connection to a computer for data management and a printer for physical records.
Rheological Analysis: Ability to display shear rate and shear stress, allowing for an in-depth study of fluid behavior.
Computerized Calibration: Each measurement range is software-adjusted to minimize human error.

Frequently Asked Questions (FAQ)

Is the device difficult to level? No, it features a level control on the front for quick and visual adjustment.
Can I measure very hot samples? Yes, using the optional high-temperature furnace, it can measure molten materials such as asphalt or waxes.
What if my sample size is very small? There is an optional small sample adapter (SSR) designed specifically for volumes of only 7 to 11 ml.
Does it come with PC software? Yes, it can be connected to a computer via the RS232 interface to track viscosity curves.

Advantages and Disadvantages

Advantages:

Extremely wide measurement range (up to 320M mPa.s).
Stable results and high resistance to electrical interference.
Easy conversion of units (mPa.s, Pa.s, P, cP) and temperature (°C/°F).
Excellent quality-to-price ratio compared to imported brands.

Disadvantages:

Requires optional accessories (Pt100 probe) to measure temperature with 0.1°C precision.
The equipment's size (12 kg) requires a fixed and stable workspace.

Field Use and Recommendations

This viscometer is essential in industrial quality control laboratories and biochemical research centers. Its use is highly recommended in:

Chemical Industry: Production of paints, inks, and adhesives.
Cosmetics: Formulation of high-density creams and gels.
Food Industry: Analysis of starches, pulps, and syrups.
Construction: Evaluation of asphalts and hot-melt glues.
Operating Tip: To achieve maximum precision, ensure the front level bubble is perfectly centered before starting any measurement.

Technical Specifications

Specification	YR06639	YR06640	YR06641
Speed (r/min)	0.3 – 100 (37 tipos)	0.3 – 100 (37 tipos)	0.3 – 100 (37 tipos)
Rank R2 - R7 (mPa.s)	100 - 13.000.000	200 - 26.000.000	800 - 104.000.000
Rank URL (mPa.s)	6.4 - 1.000	12.8 - 1.000	51.2 - 2.000
Rotor 21# (mPa.s)	50 - 167.000	100 - 333.000	400 - 1.300.000
Rotor 27# (mPa.s)	250 - 834.000	500 - 1.700.000	2.000 - 6.700.000
Rotor 28# (mPa.s)	500 - 1.700.000	1.000 - 3.300.000	4.000 - 13.300.000
Rotor 29# (mPa.s)	1.000 - 3.300.000	2.000 - 6.600.000	8.000 - 26.600.000
Dosage R1-R7	500 ml	500 ml	500 ml
Dosage ULR	21 ml	21 ml	21 ml
Dosage 21# / 27#	7.8 ml / 11.3 ml	7.8 ml / 11.3 ml	7.8 ml / 11.3 ml
Dosage 28# / 29#	12.6 ml / 11.5 ml	12.6 ml / 11.5 ml	12.6 ml / 11.5 ml
Measurement Error	±1%	±1%	±1%
Repetitive Error	±0.5%	±0.5%	±0.5%
voltage	110V / 220V	110V / 220V	110V / 220V
Dimensions	300300450(mm)	300300450(mm)	300300450(mm)
Weight	12 kg	12 kg	12 kg

Specification	YR06642	YR06643	YR06644
Speed (r/min)	0.1 – 200 (58 tipos)	0.1 – 200 (58 tipos)	0.1 – 200 (58 tipos)
Rank R2 - R7 (mPa.s)	100 - 40.000.000	200 - 80.000.000	800 - 320.000.000
Rank URL (mPa.s)	3.2 - 1.000	6.4 - 1.000	25.6 - 2.000
Rotor 21# (mPa.s)	25 - 500.000	50 - 1.000.000	200 - 4.000.000
Rotor 27# (mPa.s)	125 - 2.500.000	250 - 5.000.000	1.000 - 20.000.000
Rotor 28# (mPa.s)	250 - 5.000.000	500 - 10.000.000	2.000 - 40.000.000
Rotor 29# (mPa.s)	500 - 10.000.000	1.000 - 20.000.000	4.000 - 80.000.000
Dosage R1-R7	500 ml	500 ml	500 ml
Dosage ULR	21 ml	21 ml	21 ml
Dosage 21# / 27#	7.8 ml / 11.3 ml	7.8 ml / 11.3 ml	7.8 ml / 11.3 ml
Dosage 28# / 29#	12.6 ml / 11.5 ml	12.6 ml / 11.5 ml	12.6 ml / 11.5 ml
Measurement Error	±1%	±1%	±1%
Repetitive Error	±0.5%	±0.5%	±0.5%
voltage	110V / 220V	110V / 220V	110V / 220V
Dimensions	300300450(mm)	300300450(mm)	300300450(mm)
Weight	12 kg	12 kg	12 kg

View product

Detailed analysis of viscometer for an effective and safe choice

Advanced Comparison: Stormer Viscometer YR05857 vs. Stormer Viscometer KU-3

Viscometers play a crucial role in various industries, providing essential measurements for the consistency and flow properties of liquids. In the spotlight today are two key products: the Stormer Viscometer YR05857 by Kalstein and the Stormer Viscometer KU-3 by BYK. Each offers unique features and specifications, catering to different professional needs. Understanding their capabilities will empo

Revolutionizing Lab Measurements: Discover the Kalstein Viscometer

Kalstein Viscometer: A Brand You Can Trust Kalstein's viscometer is synonymous with precision and reliability in the field of laboratory measurements. As someone who has not only reviewed these devices but has also interacted extensively with them, I am confident in the robust capabilities they bring to any laboratory setting. Kalstein has maintained its reputation due to its consistent production

The Viscometer and its Importance in the Scientific World

The measurement of viscosity is crucial in numerous branches of science and industry, being a vital component in fields such as medicine, chemistry, and product manufacturing. At the center of this process is the viscometer, a tool that has evolved over time and has made measuring viscosity as simple as it is crucial.

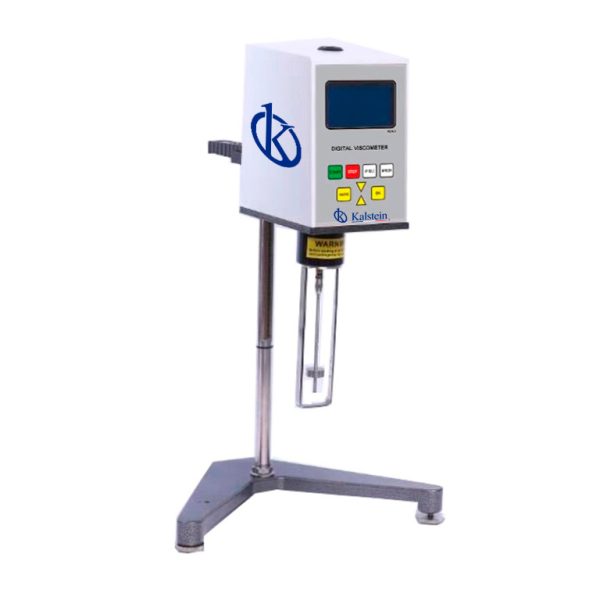

The true importance of viscometers for producing large-scale products

Viscometers are a valuable tool for manufacturers of large-scale products. It is a scientific measuring instrument that is used to measure the viscosity of a liquid. Viscosity refers to the resistance to flow of a liquid when it is subjected to an external force. This makes viscometers an invaluable tool for controlling and ensuring the quality and consistency of products on a large scale.

viscometer offer catalog

Guides about viscometer

Complete guides to choose viscometer

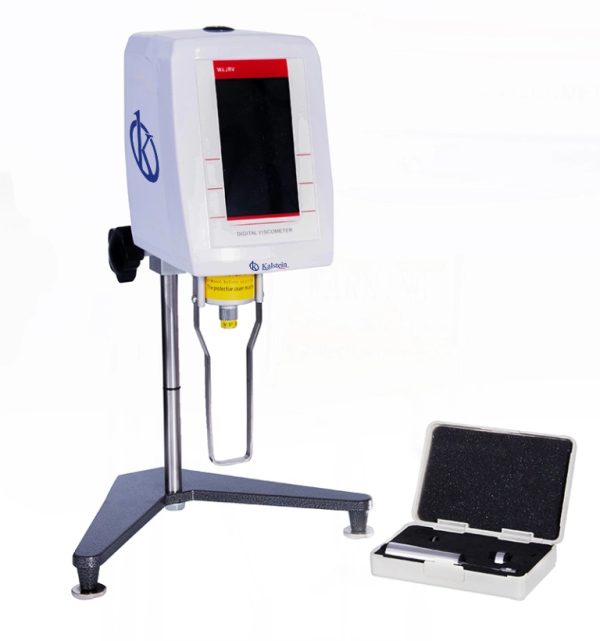

What types of fluids are measured with viscometers?

Viscometers are devices used to measure the viscosity of a fluid, which is a measure of its resistance to flow. These devices can measure the viscosity of a variety of fluids such as: lubricating oils, lubricating additives, industrial lubr

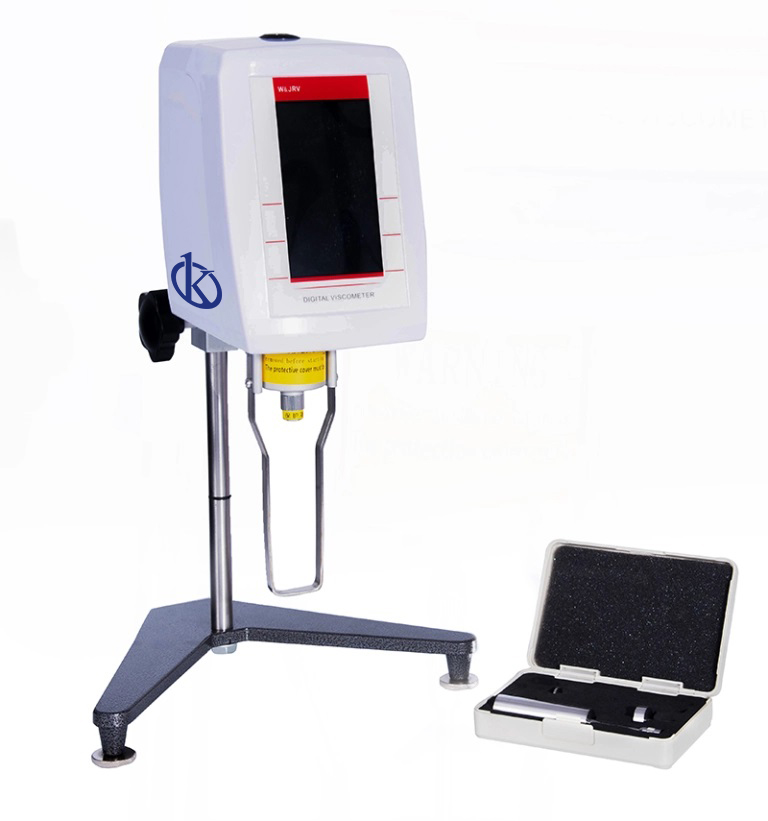

How is the Viscometer used?

The viscometer is the instrument used to measure the viscosity of liquids and their flow properties. It is equipment with various applications and can be used in different substances and materials, such as oil, plastic, paints, coatings, ad

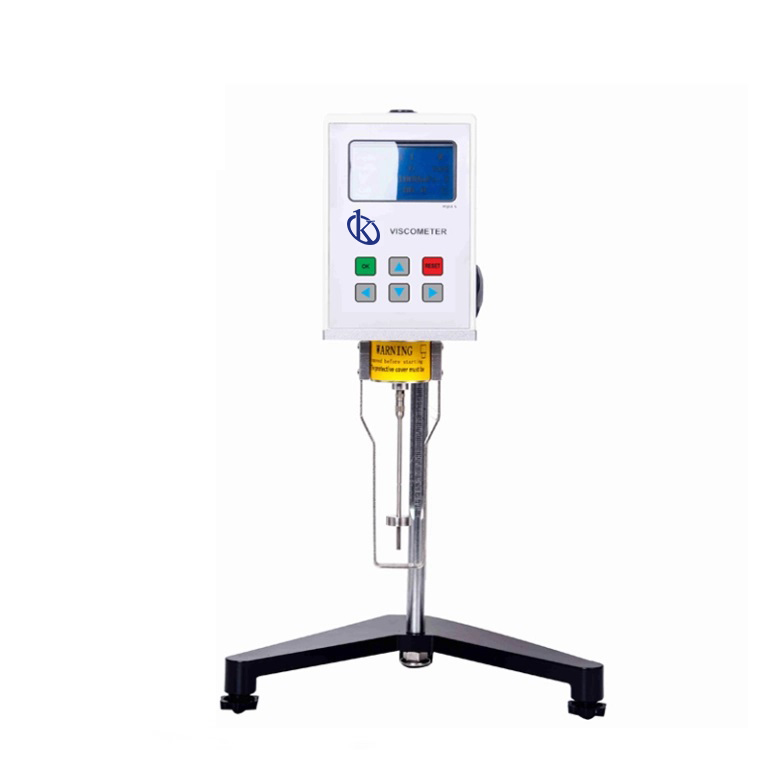

What are the types of Viscometer?

A viscometer is a device used to measure the viscosity of liquids and their flow properties. These equipments have different applications in different types of substances and materials, such as oil, plastic, paints, coatings, adhesives, wax

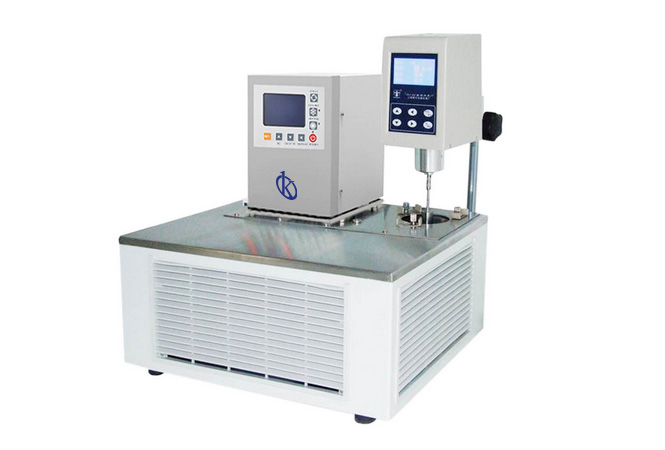

Use of the Viscometer for the Production of Cosmetics

Viscosity belongs to the field of rheology, change of form and flow of substances, elasticity, viscosity and plasticity. Since viscosity is the measure of internal friction in a fluid, viscometers act as a tool within rheology. Viscometers
