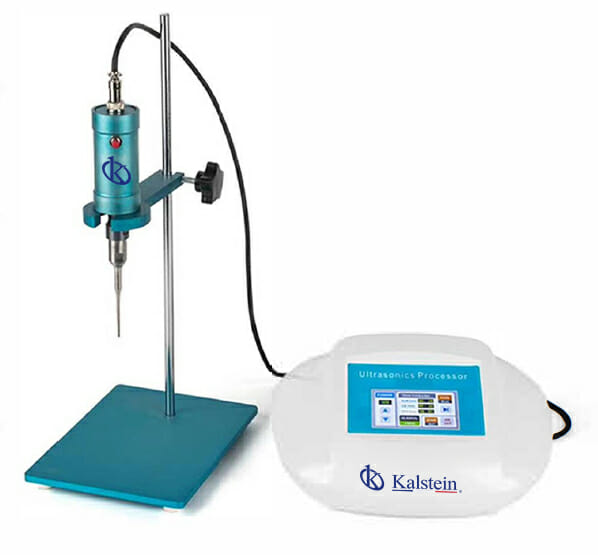

Ultrasonic Homogenizer Processor Sonicator for Liquid Processing YR05829 // YR05831

Manufacturer: Kalstein

Description

The Ultrasonic Processor Homogenizer for Liquid Processing YR05829 // YR05831 is an advanced and multifunctional solution for laboratories that require efficient processing of solid and liquid samples. Equipped with an intelligent and fully digital ultrasonic generator, this device creates cavitation in liquids, making it an ideal tool for applications such as emulsification, separation, homogenization, and the extraction of animal, plant, and viral cells. With a compact design and cutting-edge features like a 3.5-inch touch screen and manual or automatic operation modes, this sonicator is an indispensable tool in fields such as biochemistry, microbiology, and medicinal chemistry.

Additionally, the YR05829 // YR05831 offers adjustable ultrasonic power ranging from 5 to 400 W, allowing for the optimization of sample treatment processes. The device includes a temperature control system with an optional probe, ensuring that samples are processed precisely without the risk of overheating. Thanks to its ability to work in either continuous or intermittent mode, this ultrasonic processor is suitable for both extended experiments and fast processes that require high intensity. The ultrasonic probe, made from TC4 titanium alloy, guarantees durability and resistance even during continuous use.

Market Price

The Ultrasonic Processor Homogenizer YR05829 // YR05831 is priced between $200 and $1600 USD, depending on the selected configuration and optional accessories such as different probe sizes and temperature controllers. This price range makes it an affordable and efficient option for laboratories seeking high-quality equipment for sample processing.

Frequently Asked Questions

  • What applications are ideal for this ultrasonic processor?
    This equipment is ideal for emulsification, cell extraction, nanoparticle dispersion, and accelerating chemical reactions.
  • Is it safe for sensitive samples?
    Yes, the precise control of temperature and ultrasonic power ensures that delicate samples do not suffer thermal or mechanical damage.

Advantages and Disadvantages

Among the main advantages of the YR05829 // YR05831 are its ability to handle small to medium samples, its compact design that saves space in the lab, and the stability provided by its intelligent ultrasonic generator. Additionally, the equipment can operate both continuously and intermittently, increasing its versatility. However, for laboratories with large volume processing needs, the capacity of the smaller model may be insufficient.

Field Use

In practice, this ultrasonic homogenizer is used in biotechnological research to break cells and extract proteins, as well as in material chemistry laboratories for nanoparticle dispersion. Its capacity to process volumes ranging from 0.1 ml to 300 ml makes it an excellent option for quality control laboratories and water analysis, where sample pretreatment is crucial for obtaining accurate results.

To maximize the performance of the YR05829 // YR05831, regular maintenance of the equipment is recommended, including cleaning the ultrasonic probe and checking the temperature control system. If you’re interested in this equipment or would like more information about its features, we invite you to request a quote or generate one automatically through our Kalstein Plus platform. Enhance the quality of your processes with this advanced liquid processing sonicator.

Technical Descrption

Models YR05829 YR05830 YR05831
Operating mode Automatic, Manual
Screen size 3.5 inch high definition large touch screen control
Ultrasonic power(W) 5-150 5-250 5-400
Frequency(KHz) 19-25
Duty ratio(%)  1~99%
Handling capacity(ml) 0.1-50 0.5-100 0.5-300
Ultrasonic time(s/min) 1s-99m-99h
Random horn(Φ mm) 2 3 6
Temperature control Temperature probe(Optional)
Power source 220V/ 50Hz(110V Can be customized)
Optional horn(Φ mm) 2,3 2,3,6 3,6,8
Mainframe Weight(kg) 4.2 4.5
Total package weight(kg) 5.8 6.2 6.5



Additional information

Weight 4,1 kg
Dimensions 35 × 25 × 25 cm
Modelo

YR05829, YR05830, YR05831, YR05831-op1, YR05831-op2

Characteristic Feature

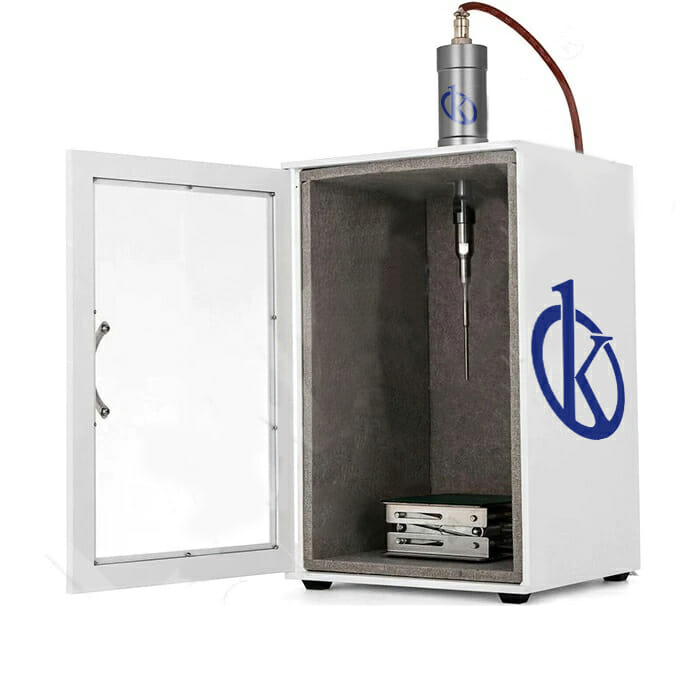

No Features, Titanium alloy(Ti-6Al-4V) Φ2~Φ6, White soundproof box, lifting platform
