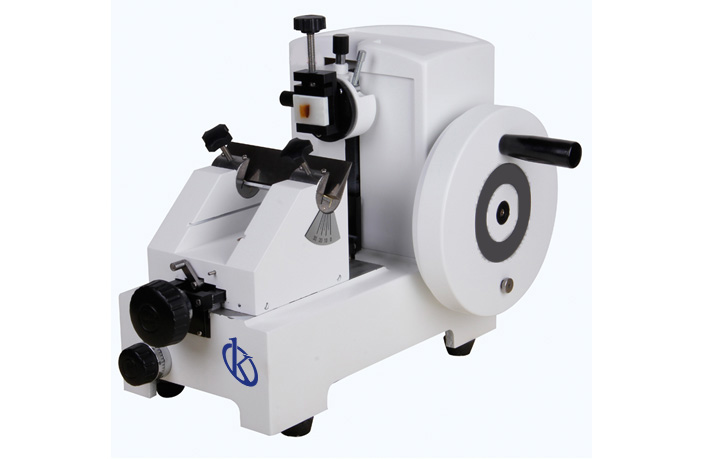

Manual Microtome YR421

The YR421 Manual Microtome integrates advanced international technology and design, equipped with high-precision roller guide rails to ensure exact cuts in histology and pathology laboratories. This device offers stable performance, comfortable and flexible operation, and wear resistance that minimizes abrasion, allowing the production of continuous high-quality sections comparable to those of recognized imported brands.

Market Price

The YR421 Manual Microtome is available on the market with prices ranging between $4200 and $5000 USD, depending on additional specifications and shipping costs. For a detailed and personalized quote, we recommend using our Kalstein Plus platform. Obtain the latest technology in histological cuts now and improve the precision of your research without compromising quality.

Frequently Asked Questions

• What is the minimum cutting thickness achievable with the YR421?

The YR421 can be adjusted to achieve a minimum cutting thickness of 1 μm, ideal for applications requiring high precision in histological cuts.

• How is the cutting thickness adjustment performed on the YR421?

The microtome allows easy adjustment of cutting thickness through precise controls, ensuring reproducible results in each operation.

Advantages and Disadvantages

Advantages:

• High-precision roller guide rails for exact cuts.
• Comfortable and flexible operation for intensive laboratory use.
• Wear resistance that minimizes the need for frequent maintenance.

Disadvantages:

• Initial familiarization may be required to fully utilize all functions.
• Periodic adjustments may be necessary to maintain precision in high-performance environments.

Product Use in the Field

The YR421 Manual Microtome is essential in histology and pathology laboratories for the precise preparation of samples before microscopic analysis. Its ability to handle samples up to 50 × 60 mm and adjust cutting thickness precisely makes it ideal for demanding scientific research and clinical studies.

Recommendations

To optimize the performance of the YR421 Manual Microtome, regular adjustments and calibrations are recommended according to your experiment specifications. Follow the detailed maintenance instructions provided in the user manual to ensure precise and consistent results in every use. Discover how the YR421 Manual Microtome can enhance precision in your laboratory. Request a personalized quote now through Kalstein Plus and advance towards greater efficiency in your histology processes. Get your automatic quote today and experience innovation in your daily laboratory work.

Technical Specifications

Model	YR421
Trimming Thickness Setting Range	0– 500μm
Minimum Setting of Sectioning Thickness	1μm
Specimen Holder Rotation	at any angle within360 degrees
Specimen Orientation	XY – 8°
Total Horizontal Specimen Feed	28mm
Vertical Specimen Stroke	60mm
Movement Range of the Base of BladeHolder Base	0-50mm (front to back)
Maximum Specimen Size	50×60mm
Precision Error	±5％
Dimensions	420×330×330 mm (W×D×H)
Net weight	19kg
