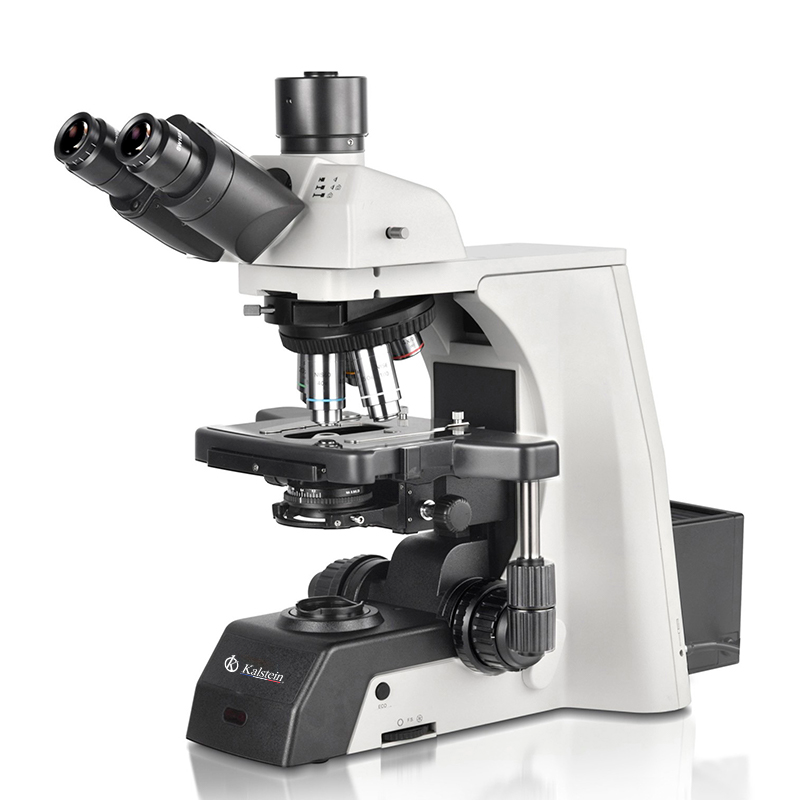

Manual Halogen Laboratory Microscope YR0266A // YR0266C

Description

The Manual Halogen Laboratory Microscope YR0266A // YR0266C represents a significant advancement in scientific research equipment. This innovative full auto motorized microscope is designed for high-level laboratory applications, featuring state-of-the-art functionalities like an electric platform, auto-focus, and powerful imaging software. Equipped with a touch screen controller, it ensures precise observation, image acquisition, and processing, reducing repetitive tasks. With the ability to restore previous settings, this microscope enhances imaging stability and accuracy, ensuring quick and efficient operation.

Market Price

The market price for advanced scientific microscopes like the YR0266A // YR0266C ranges approximately from $29,500 to $30,000. While this represents a significant investment, the cutting-edge features and improved laboratory throughput offered by this microscope provide excellent value.

Frequently Asked Questions

What are the main differences between the YR0266A and YR0266C models? The main difference lies in the illumination and body types. The YR0266A is equipped with manual body options and either halogen or LED illumination, while the YR0266C offers full auto functionality.
Is technical support available for these microscopes? Yes, Kalstein provides comprehensive technical support for all its products, ensuring that your microscope remains operational with minimal downtime.

Advantages and Disadvantages

Advantages: The YR0266 series offers auto-focus features and robust imaging software, facilitating efficient and precise microscopy. Its ergonomic design improves user comfort during extended use.

Disadvantages: While it offers numerous advanced features, the initial investment may be higher compared to simpler models that lack automation.

Product Use in the Field

The YR0266A // YR0266C microscopes are ideal for laboratory and clinical settings requiring high precision and efficiency. With applications ranging from biological research to clinical diagnostics, this microscope enhances workflow with its motorized controls and intuitive software.

Recommendations

For optimal performance, regularly calibrate your microscope and ensure that all software updates are installed. Consider additional training for your team to fully leverage the powerful imaging capabilities of this equipment.

Features

Full auto motorized functions with electric platform and auto-focus
Innovative NIS60 Infinity Optical System
Touch screen controller with powerful imaging software
Capability to restore previous configuration settings
Comes with extensive accessories for adaptability

Technical Specifications

Full Auto Motorized Research Level Scientific Laboratory Microscope		Accessory Number	YR0266A	YR0266B	YR0266C
Optical System	NIS60 Infinity Optical System		●	●	●
Observation Method	Bright Field		●	●	●
	Dark Field		○	○	○
	Polarizing		○	○	○
	Phase Contrast		○	○	○
	Flourescent		○	○	○
	DIC		○	○	○
Main Body	Manual Body + HalogenIllumination.	YR0266C-op1	●	–	–
	Manual Body + LEDIllumination.	YR0266C-op2	●	–	–
	Semi-Auto Body + HalogenIllumination.	YR0266C-op3	–	●	–
	Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	YR0266C-op3	–	●	–
	Semi-Auto Body + LEDIllumination.	YR0266C-op4	–	●	–
	Auto Nosepiece + Auto Condenser + Auto Brightness Adjust	YR0266C-op4	–	●	–
	Full Auto Body + LEDIllumination.	YR0266C-op5	–	–	●
	Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage+ Touch LCD Screen	YR0266C-op5	–	–	●
Head	Seidentopf Binocular Head, Inclined 30°,	YR0266C-op6	○	○	○
	Interpupillary Distance 47-78mm	YR0266C-op6	○	○	○
	Seidentopf Trinocular Head, Inclined 30°,	YR0266C-op7	●	○	●
	Interpupillary Distance 47-78mm,	YR0266C-op7
	3 Level Light Split Switch E100:P0/E20:P80/E0:P100	YR0266C-op8

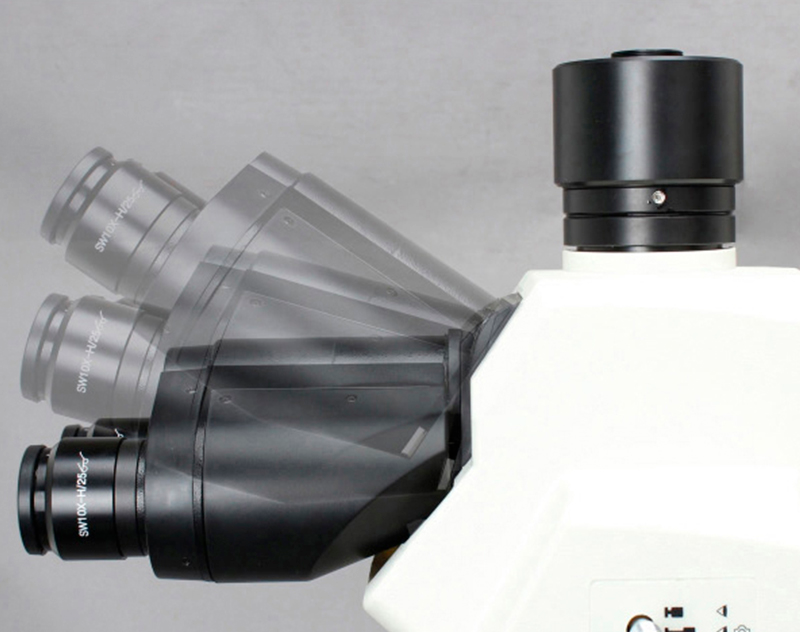

	Ergo Tilting Trinocular Head, Inclination 0°~35°,	YR0266C-op8	○	●	○
	Interpupillary Distance 47-78mm,	YR0266C-op9
	3 Level Light Split Switch E100:P0/E20:P80/E0:P100	YR0266C-op9
Eyepiece	SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YR0266C-op10	●●	●●	●●
	SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YR0266C-op11	○	○	○
	EW12.5x/16mm, High Eyepoint	YR0266C-op12	○	○	○
	WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YR0266C-op13	○	○	○
	WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm	YR0266C-op14	○	○	○
Nosepiece	Manual Nosepiece, Quintuple, Backward, Center Adjustable	YR0266C-op15	○	○	○
	Manual Nosepiece, Sextuple, Backward	YR0266C-op16	●	–	–
	Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust	YR0266C-op17	○	–	–

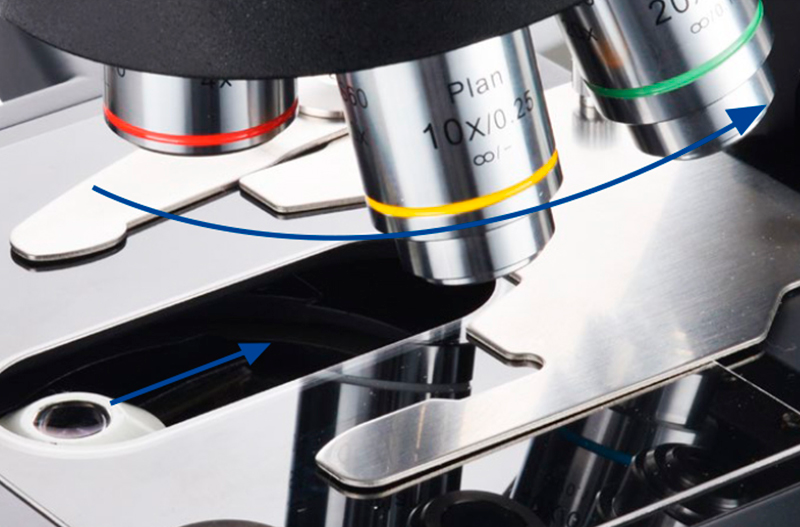

	Auto Coded Nosepiece, Sextuple, Backward,	YR0266C-op18	○	●	●
	Motorized Switch Objectives, Controled By:
	1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly

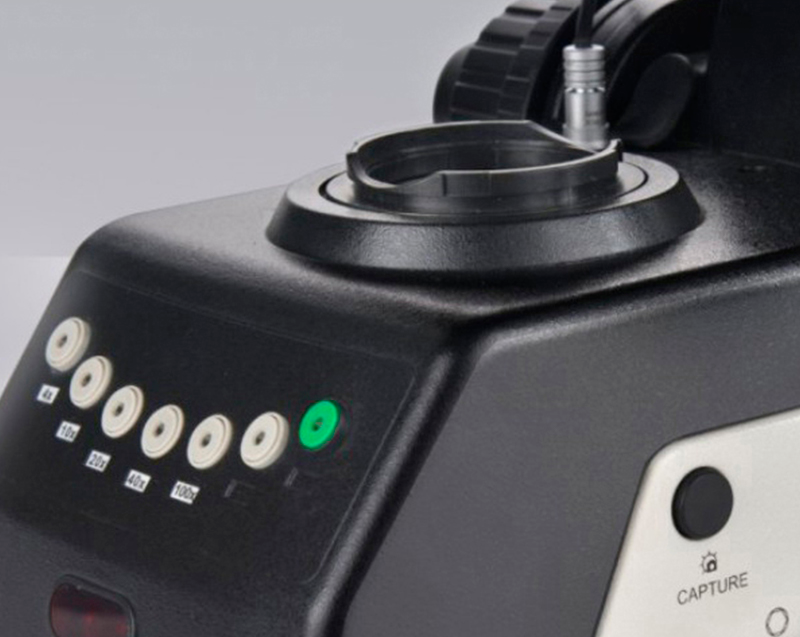

	2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them
	With Slot For Polarizing Compensator Slider Or DIC Slider		●	●	●
	Protect Cover For Nosepiece Holes	YR0266C-op19	●	●	●

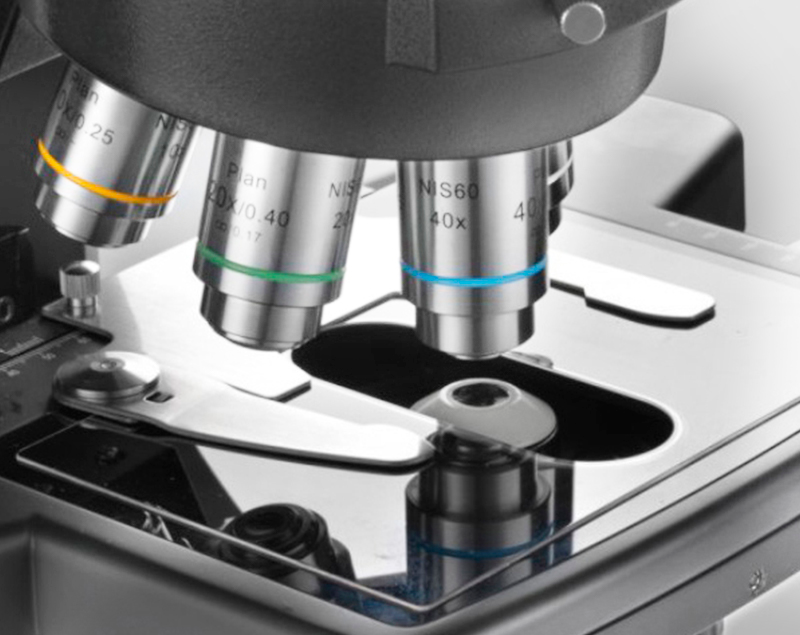

NIS60	2x/0.06, W.D.7.5mm, Cover Glass 0.17mm	YR0266C-op20	○	○	○
N-PLN	4x/0.10, W.D.30mm, Cover Glass 0.17mm	YR0266C-op21	●	●	●
Infinity Plan Objective	10x/0.25, W.D.10.2mm, Cover Glass 0.17mm	YR0266C-op22	●	●	●
	20x/0.40, W.D.12mm, Cover Glass 0.17mm	YR0266C-op23	●	●	●
	40x/0.65, W.D.0.7mm, Cover Glass 0.17mm	YR0266C-op24	●	●	●
	50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm	YR0266C-op25	○	○	○
	60x/0.8, W.D.0.3mm, Cover Glass 0.17mm	YR0266C-op26	○	○	○
	100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm	YR0266C-op27	●	●	●
NIS60APO Infinity Plan	20x/0.75, W.D.1.1mm, Cover Glass 0.17mm	YR0266C-op28	○	○	○
NIS60APO Infinity Plan	100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm	YR0266C-op29	○	○	○
Working Stage	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, LeftHandle	YR0266C-op30	○	–	○
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, RightHandle	YR0266C-op31	●	–	○
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,LeftHandle	YR0266C-op32	–	○	○
	Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,RightHandle	YR0266C-op33	–	●	○
	Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw	–	●	●	–
	Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick,	YR0266C-op34	○	○	●
	–Travel Range X:125mm, Y:75mmm,
	–Minimum Step 0.1um
	–Re-Position Accurate +/-1.5um
	–Max Speed 25mm/s
	–Size: 275x239x44.5mm
	–Soft Stop, Mechanical Stop, Opto-Electro Switch Stop
	–Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um
	–Z Axis Max Speed 10r/s
	–3D Control Stick, 4 Speeds
	–Connection By USB2.0 & RS232
	–Communication Speed 9600 bits
	Z Axis Upgrade With Optical Grating Ruler	YR0266C-op35	○	○	○
Condenser	Swing-Out Condenser NA0.9/0.25	YR0266C-op36	●	–	–
Condenser	AutoSwing-Out Condenser NA0.9/0.25	YR0266C-op37		●	–

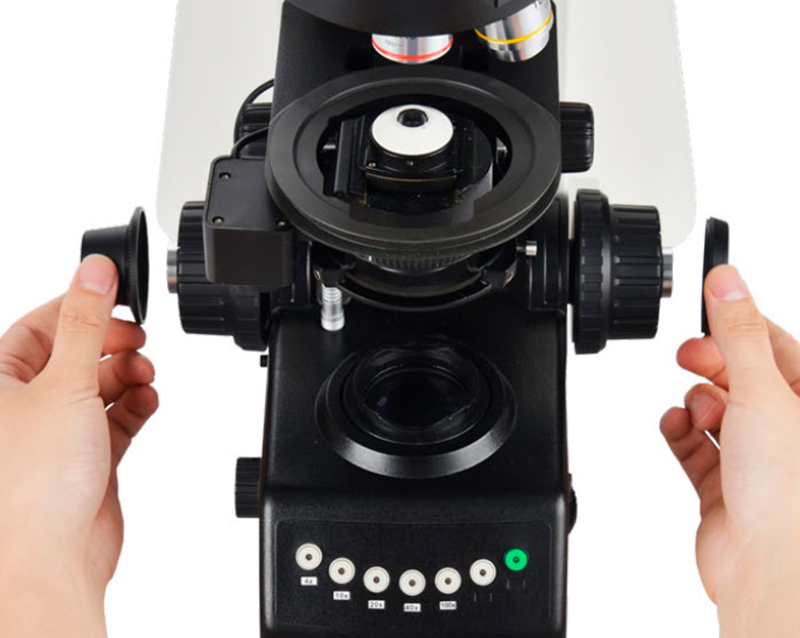

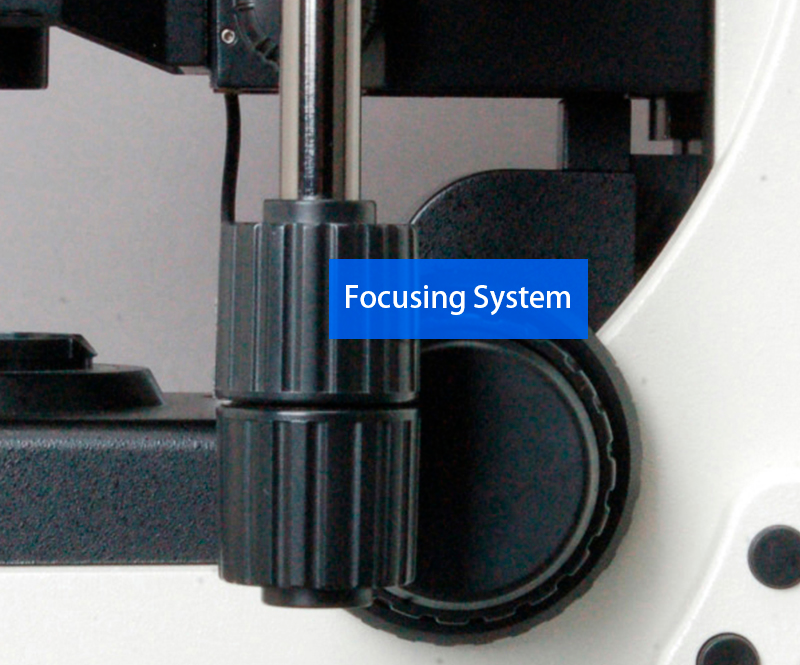

Focusing	Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ	–	●	●	●
Light Source	Transmit Kohler Illumination, Brightness Adjustable,	YR0266C-op38	●	●
	12V100W Halogen, External Lamp House	YR0266C-op38	●	●
	TransmitKohler Illumination, Brightness Adjustable,	YR0266C-op39			●
	3W S-LED, Built-in Main Body	YR0266C-op39			●
	ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy	YR0266C-op40	●	●	●
	AutoBrightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected	YR0266C-op41	○	●	●
	(To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time)	YR0266C-op41	○	●	●
Filter For Transmit Light	Filter Holder On Base, Can Hold 3 Filters	YR0266C-op42	●	●	●
	Filter LBD	YR0266C-op43	●	●	●
	Filter Green	YR0266C-op44	●	●	●
	Filter Yellow	YR0266C-op45	●	●	●
	Filter ND6	YR0266C-op46	●	●	●
	Filter ND25	YR0266C-op47	●	●	●
Adapter	Eyepiece Adapter Dia.23.2mm	YR0266C-op48	○	○	○
	C-Mount 1.0x	YR0266C-op49	○	○	○
	C-Mount 0.5x	YR0266C-op50	○	○	○
Software	NOMIS Basic Image Processiing Software	YR0266C-op51	○	○	○
Dark Field	Dark Field Condenser, N.A. 0.7~0.9, Dry	YR0266C-op52	○	○	○
	Dark Field Condenser, N.A. 1.25~1.36, Immersion	YR0266C-op53	○	○	○
	Dark Field Objective, Infinity Plan 100X,	YR0266C-op54	○	○	○
	For Immersion Dark Field Observation	YR0266C-op54	○	○	○
	Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm,	YR0266C-op55	○	○	○
	For Immersion Dark Field Observation	YR0266C-op55	○	○	○
Polarizing	Polarizer For Transmit Light Source, Swing-Out, On Collector	YR0266C-op56	○	○	○
	Analyzer For Transmit Light, Slide With Quartz Wedge Compensator	YR0266C-op57	○	○	○
	1Professional Polarizing Microscope	YR0266C-op58	○		○
Phase Contrast	Turret Phase Contrast Condenser, Center Adjustable	YR0266C-op59	○	○	○
	Centering Telescope 10x	YR0266C-op60	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25	YR0266C-op61	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40	YR0266C-op62	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65	YR0266C-op63	○	○	○
	Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil)	YR0266C-op64	○	○	○
DIC	Polarizer For Transmit Light Source	YR0266C-op65	○	○	○
	Turret DIC Condenser	YR0266C-op66	○	○	○
	DIC Slide 10x, Used With Semi-APO Fluorescent Objective	YR0266C-op67	○	○	○
	DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective	YR0266C-op68	○	○	○
	DIC Slide 100x, Used With Semi-APO Fluorescent Objective	YR0266C-op69	○	○	○
	DIC Slide With Analyzer 10x-20x	YR0266C-op70	○	○	○
	DIC Slide With Analyzer 40x-100x	YR0266C-op71	○	○	○
NIS60 N-PLFN	4x/0.13, W.D.16.5, Cover Glass 0.17mm	YR0266C-op72	○	○	○
Semi-APO	10x/0.3, W.D.8.1, Cover Glass 0.17mm	YR0266C-op73	○	○	○
Fluorescent	20x/0.5, W.D.2.1, Cover Glass 0.17mm	YR0266C-op74	○	○	○
Objective	40x/0.75, W.D.0.7, Cover Glass 0.17mm	YR0266C-op75	○	○	○
For DIC	100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil	YR0266C-op76	○	○	○
Fluorescent	Fluorescent Microscope	YR0266C-op77	–	○	○
Other Accessories	Working Stage Holder Bracket	YR0266C-op78	●	●	●
	Adapter To Adjust Eye Position	YR0266C-op79	○	○	○

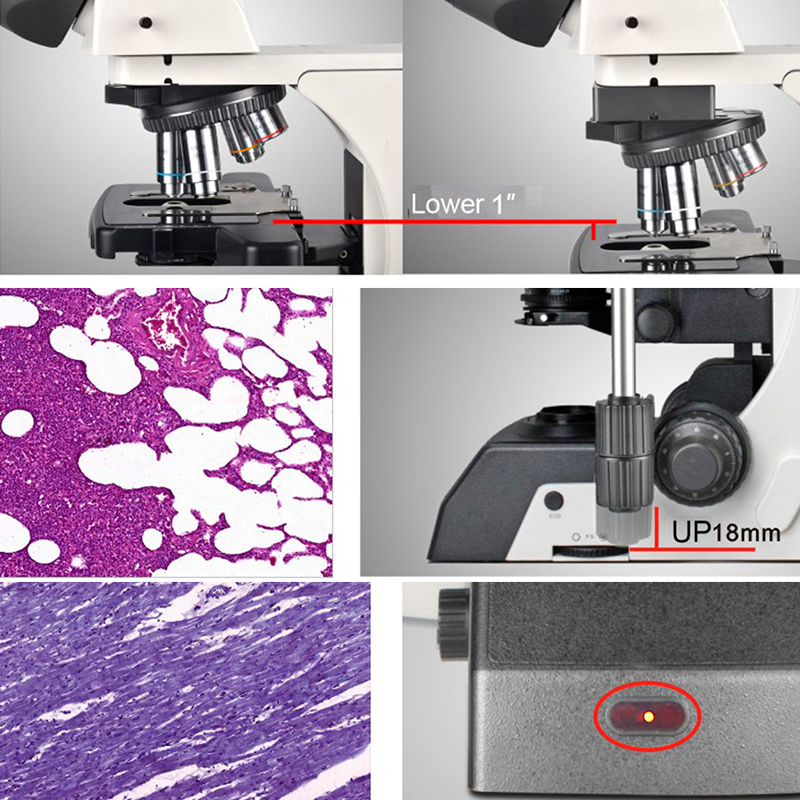

	Adapter To Lower The Stage Position 1″	YR0266C-op80	○	○	○
	Immersion Oil	YR0266C-op81	●	●	●
	Allen Wrench	YR0266C-op82	●	●	●
	Power Cord	YR0266C-op83	●	●	●
	Short Eye Cover, For Eyepiece	YR0266C-op84	○	○	○
	Long Eye Cover, For Eyepiece	YR0266C-op85	○	○	○
	Eyepiece Micrometer, Cross	YR0266C-op86	○	○	○
	Adapter Ring To Install Eyepiece Micrometer	YR0266C-op87	○	○	○
	USB Cable	YR0266C-op88	○	○	○
Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable

Additional information

Weight	N/A
Dimensions	79 × 58 × 52 cm
Model	YR0266A, YR0266B, YR0266C
