Laboratory Microscope YR0239 - YR0240
Laboratory Microscope YR0239 - YR0240 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Laboratory Microscope YR0239 - YR0240 stands out in the realm of scientific instruments. Equipped with a finite optical system and the robust Seidentopf binocular and trinocular viewing heads, this microscope is designed to deliver unparalleled precision and clarity. Its darkfield condenser, capable of both dry and oil use, enhances contrast, making it suitable for detailed cellular studies. With a coaxial fine and coarse adjustment mechanism, offering a fine division of 0.002mm and a moving range of 25mm, researchers can expect high precision in their observations. Whether used in educational settings or advanced research facilities, the YR0239-YR0240 models provide consistent, quality performance.
Market Pricing
When investing in a reliable laboratory microscope, it's essential to consider market prices, which typically range from USD 600 to USD 1200 for high-quality instruments. The pricing is reflective of the advanced features and durable materials used in these microscopes. Always look for a balance between cost and functionality, ensuring the selected model meets your specific requirements.
Frequently Asked Questions
What is the main difference between the YR0239 and YR0240 models? Both models offer similar features, but the choice depends on specific research needs and the viewing head preferences.
Is the microscope suitable for educational purposes? Yes, the Laboratory Microscope YR0239 - YR0240 is ideal for both educational environments and professional research settings.
Advantages and Disadvantages
The Laboratory Microscope YR0239 - YR0240 offers exceptional optical performance, ease of use, and versatility, making it a top choice for researchers. However, for users seeking ultra-compact models, its size could be seen as a disadvantage.
Field Usage
In practical settings, users can employ the YR0239 - YR0240 microscope for detailed biological studies, medical research, and even quality control in industrial labs. Its robust construction ensures reliable performance in various environmental conditions.
Recommendations
To extend the life and maintain the optimal performance of your microscope, regular maintenance and proper handling are recommended. Utilize the ECO function to conserve energy, and consider using it in a controlled environment to prevent damage.
Features
- Darkfield condenser (dry, oil)
- Seidentopf binocular viewing head 30° inclined, interpupillary 47-78 mm
- Coaxial fine and coarse adjustment, 0.002mm fine division, 25mm moving range
Technical Specifications
| Model | YR0239 | YR0239-1 | YR0240 | YR0240-1 | |
| Optical System | Finite Optical System | ||||
| Eyepiece | WF10X/18 | ||||
| Viewing Head | Monocular Head Inclined at 30° | ○ | ○ | ○ | ○ |
| Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | ● | |||
| Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 47-78mm | ● | ● | |||
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, Support Wifi | ○ | ○ | ○ | ○ | |
| Digital Viewing Head Inclined at 30°, Interpupillary 47-78mm, 5M pixels, 8"LCD. Android OS | ○ | ○ | ○ | ○ | |
| Achromatic Objective | 4X N.A=0.1 WD=37.5 | ● | ● | ● | ● |
| 10X N.A=0.25 WD=7.316 | ● | ● | ● | ● | |
| 20X N.A=0.4 WD=13 | ○ | ○ | ○ | ○ | |
| 40X N.A=0.65 WD=0.632 | ● | ● | ● | ● | |
| 100X N.A=1.25 WD=0.198 | ● | ● | ● | ● | |
| Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● | ● |
| Stage | Double Layers Mechanical Stage 140X140mm, Moving Range 75X50mm | ||||
| Condenser | NA1.25 Abbe Condenser | ● | ● | ● | ● |
| Dark Field Condenser (Dry, Oil) | ○ | ○ | ○ | ○ | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 25mm | ||||
| Illumination | Halogen Lamp 6V/20W | ○ | ○ | ○ | ○ |
| S-LED Illumination | ● | ● | ● | ● | |
| S-LED Illumination with Recharger | ○ | ○ | ○ | ○ | |
| Kohler Illumination | ○ | ○ | ○ | ○ | |

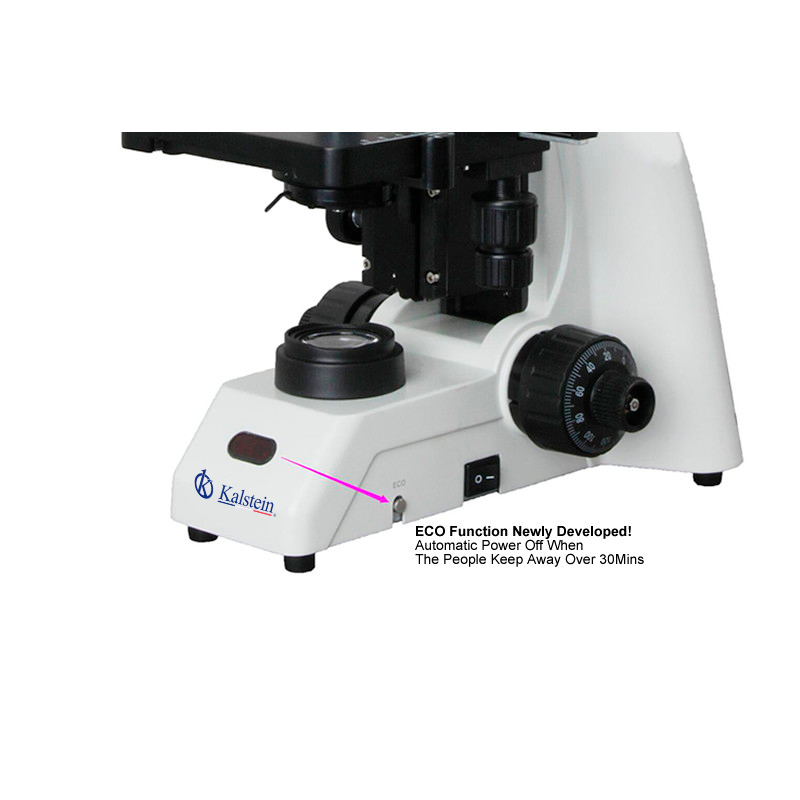

| ECO Function (Auto Power Off After 30 Mins No Operation) | ○ | ○ | ● | ● | |
| Plane-concave Mirror | ○ | ○ | ○ | ○ | |
| Fluorescent Attachment | Fluorescent Illumination, LED Lamp | ○ | ○ | ○ | ○ |
| Fluorescent Illumination, 100W HBOLamp | ○ | ○ | ○ | ○ | |
| Polarzation Set | ○ | ○ | ○ | ○ | |
| Phase Contrast Kit | ○ | ○ | ○ | ○ | |
Technical specifications
| Manufacturer | Kalstein |
|---|
Available models
Image gallery
Video Laboratory Microscope YR0239 - YR0240
Frequently asked questions
How to know the prices of Laboratory Microscope YR0239 - YR0240?
To know the price of Laboratory Microscope YR0239 - YR0240, please send us an email with your request through the contact form AQUI.
What are the delivery times for Laboratory Microscope YR0239 - YR0240?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Laboratory Microscope YR0239 - YR0240?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Laboratory Microscope YR0239 - YR0240?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Laboratory Microscope YR0239 - YR0240?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
