Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788
Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

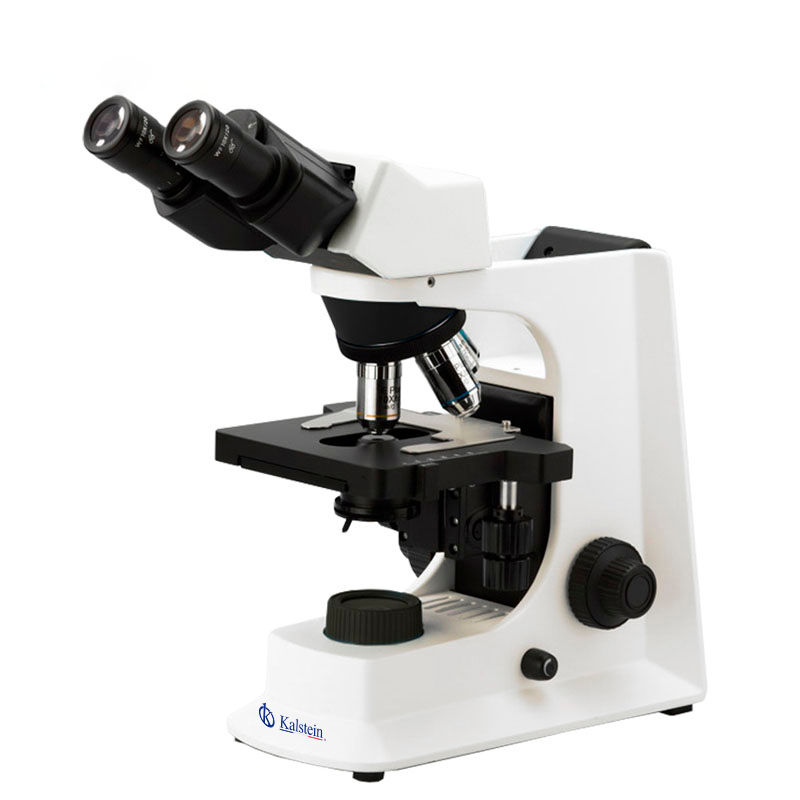

Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 offers a comprehensive solution for laboratory professionals seeking precision and clarity in their observations. Featuring a Seidentopf binocular head with a 30° inclination and 360° rotation, this microscope accommodates a wide interpupillary distance range of 48-75mm, ensuring user comfort across different positions. The integration of the eyepiece lens barrel enhances the overall performance by minimizing loss and contamination. With four sets of available objectives, including Achromatic, Plan, Infinity E-Plan, and Infinity Plan, this device promises versatility and exceptional imaging quality. The mechanical stage measures 145 mm×140mm with a travel range of 76mmX52mm, while the Abbe condenser with variable N.A. and LED illumination system ensures precise and adjustable lighting conditions for various applications.
Market Price
The Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 typically falls within a price range of $900 to $1700 in the market, offering competitive value for its advanced specifications and robust build. This range reflects its sophisticated features, making it an excellent investment for academic, research, and clinical settings.
Frequently Asked Questions
Q: What types of objectives are included with this microscope? A: It comes with Plan objectives ranging from 2.5x to 100x, providing a variety of magnifications suitable for detailed studies.
Q: Is the lighting system adequate for prolonged use? A: Yes, the microscope features a 3W-LED illumination system that offers consistent and bright lighting for extended periods.
Advantages and Disadvantages
This microscope provides superior image quality and comfort with its adjustable eyepiece barrels and advanced objectives. An additional advantage is its robust construction, which promises durability. However, its price point might be a consideration for budget-constrained users.
Field Use
In practical scenarios, the Binocular Infinity Plan Laboratory Biological Microscope YR05787 - YR05788 is invaluable for cellular biology studies, pathology, and other laboratory tasks requiring detailed observation and analysis. Its adjustable components and flexible illumination facilitate a wide range of applications.
Recommendations
To maintain optimal performance, it is recommended to regularly clean the lenses with appropriate materials and store the microscope in a dry, dust-free environment. When used properly, this device can offer years of valuable service.
Features
- 360° Rotating and 30° Inclined Seidentopf head.
- High Eyepoint eyepieces for comfort.
- Mechanical stage with precise movement.
- LED illumination for consistent lighting.
- Varied objective options including Infinity Plan.
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |

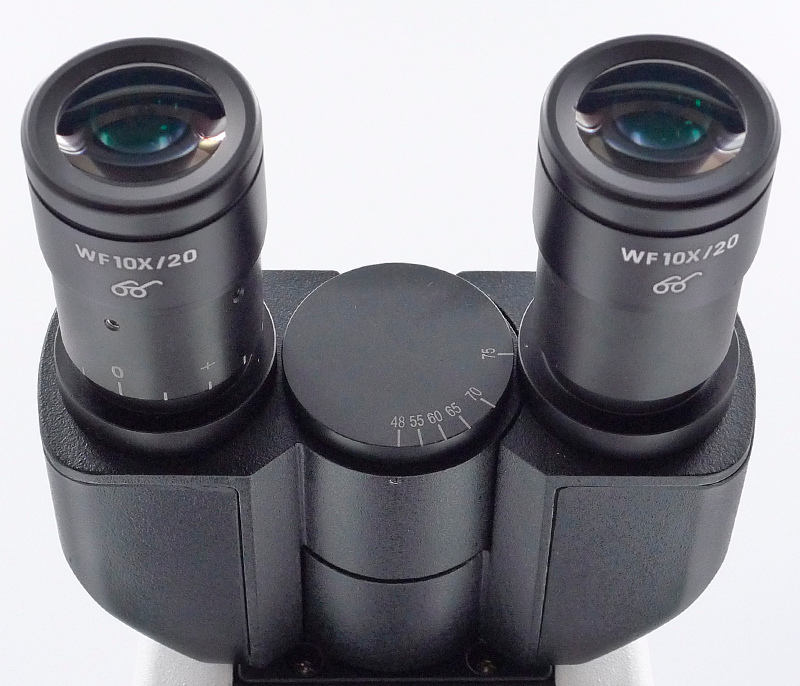

| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |
| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |

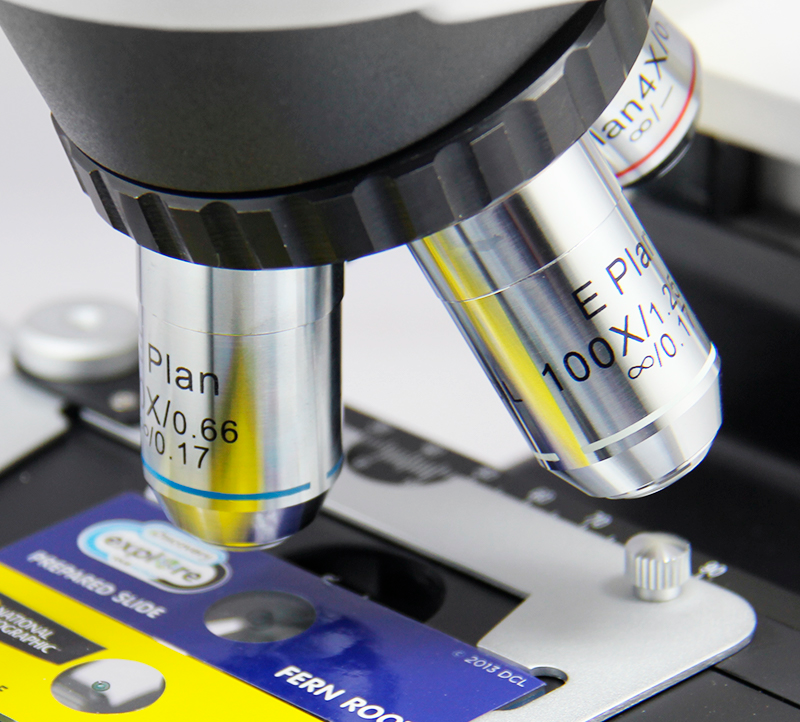

| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YR05788-op13 | ○ | ○ | |

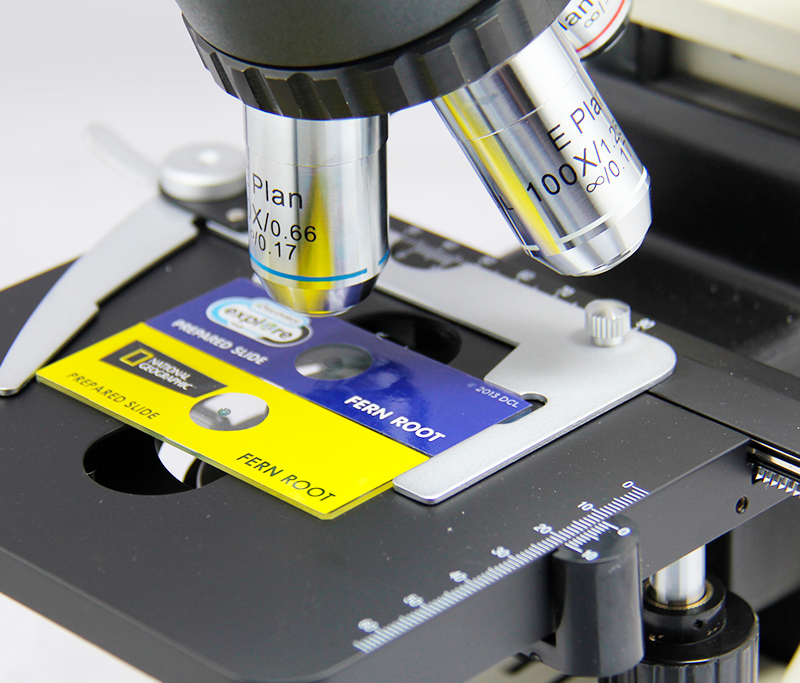

| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | - | |||

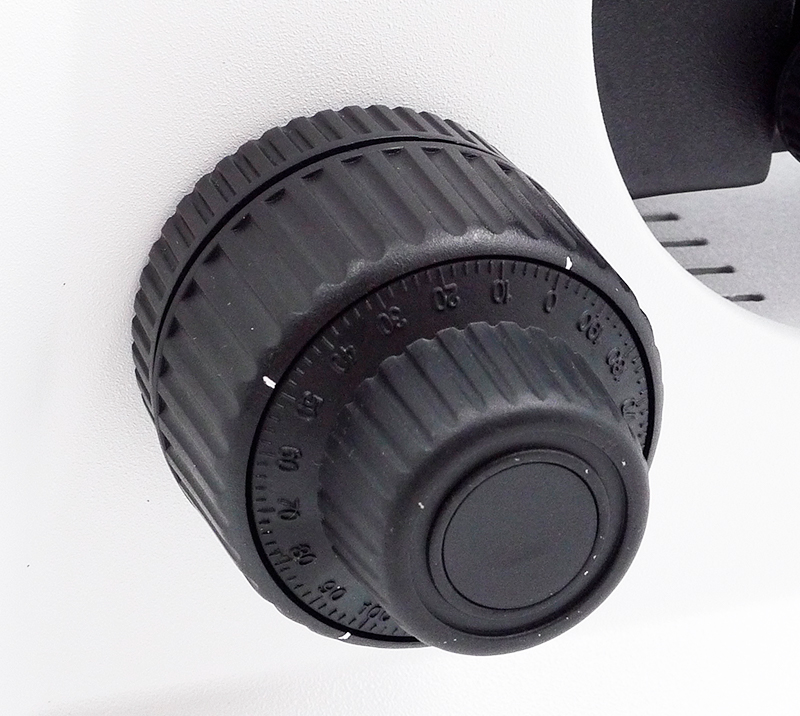

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

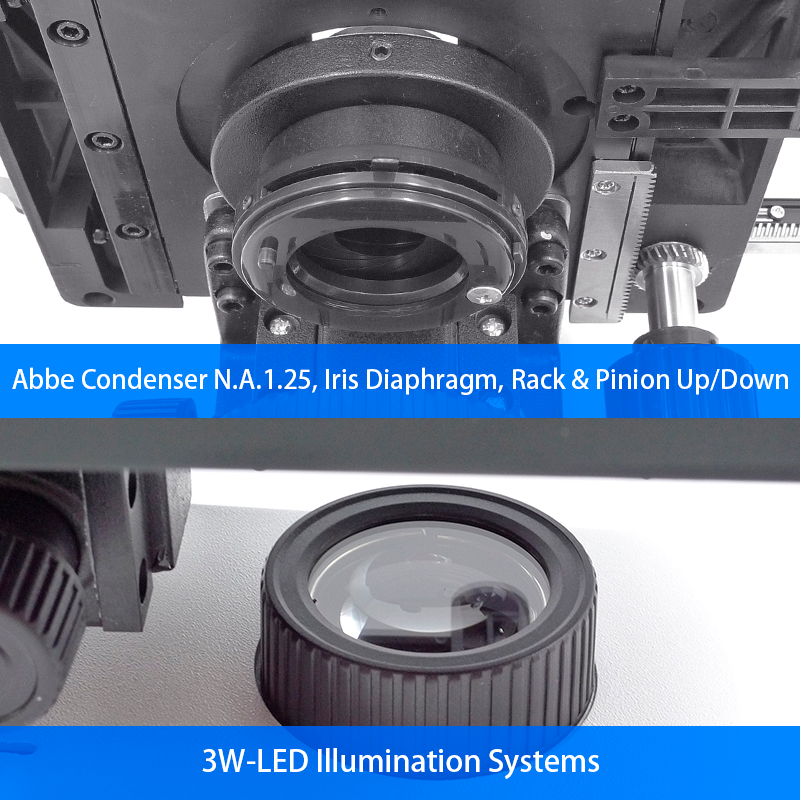

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |

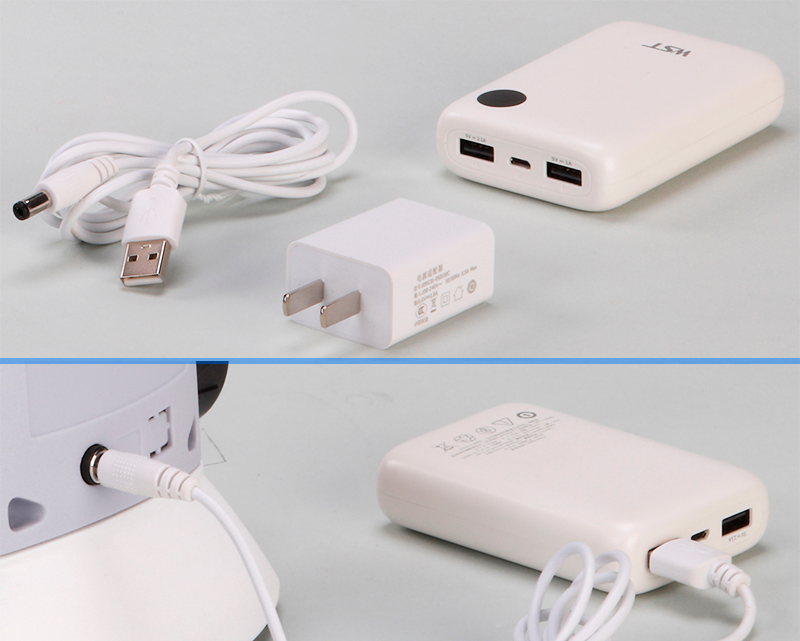

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | - | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | - | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |

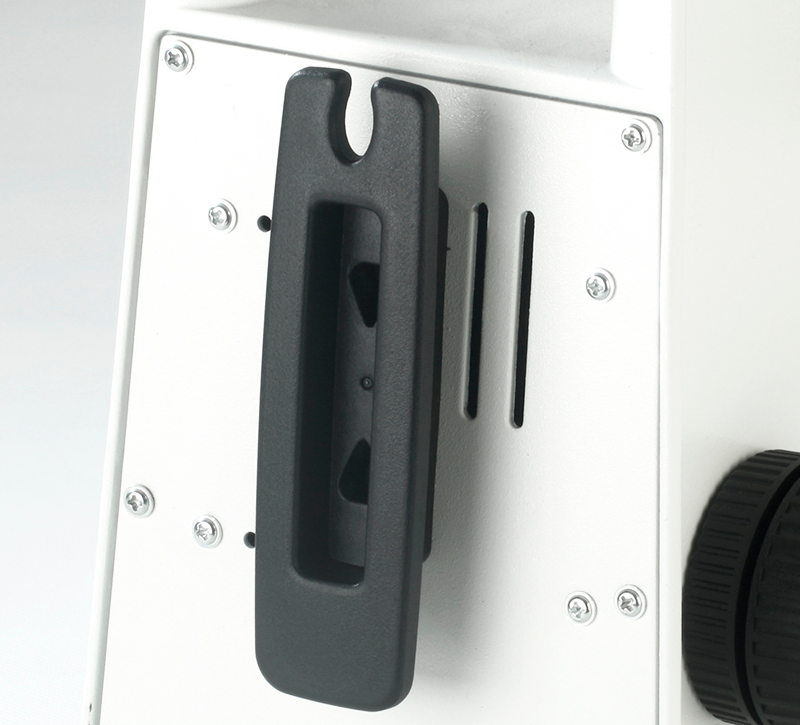

| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:"●"In Table Is Standard outfits,"○"Is Optional Accessories | ||||
Technical specifications
| Dimensions | L 39 × W 28 × H 45 cm |
|---|---|
| Weight | 8.5 kg |
| Manufacturer | Kalstein |
