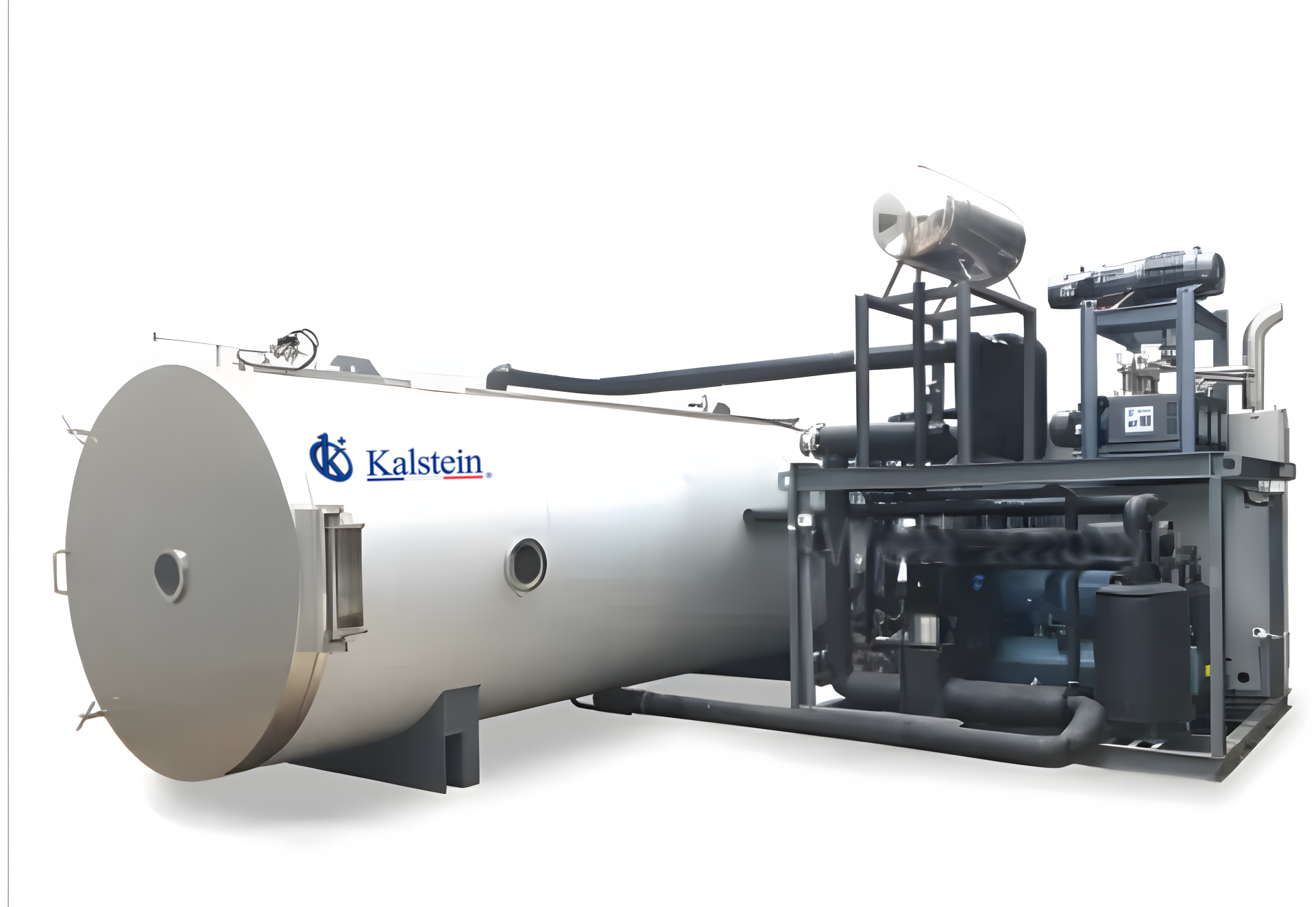

Understanding Measurement Interpretation and Result Reading with the YR06612 Vacuum Freeze Dryer
The YR06612 vacuum freeze dryer is a cutting-edge solution designed for efficient drying and long-term preservation of sensitive products such as food, pharmaceuticals, and biological applications. This article focuses on the interpretation of results and reading measurements from the YR06612, ensuring users can maximize its operational capabilities.
Technical Specifications of the YR06612
| Model | YR06612 |
|---|---|
| Freeze Drying Area (m²) | 52.92 |
| Load Capacity (kg) | 500 |
| Number of Shelves (Layers) | 9+1 |
| Dimensions of Shelf (mm) | 4900*1200*15 |
| Spacing Between Shelves (mm) | 80 |
| Number of Trolleys (set) | 3 |
| Ice Collection Capacity (kg/batch) | >=750 |
| Cold Trap Temperature (℃) | <=-50 |
| Defrost Mode | Water cooled, water temperature <30℃ |
| Final Vacuum (Pa) | <10 |
| Power (kW) | 150 |
| Compressed Air L/min (P=0.5~0.8Mpa) | 30 |
| Dimensions (L*W*H) (mm) | 7000*8500*3200 |
| Total Weight (kg) | 29 |
Principle of Operation of the YR06612
The YR06612 operates on the principle of sublimation, a process where ice transitions directly from a solid to a vapor without passing through the liquid state. This is achieved under a vacuum, which lowers the boiling point of water, allowing for gentle drying of heat-sensitive materials. Understanding this principle is crucial for interpreting the results accurately.
During the freeze-drying process, the material is first frozen, and then the surrounding pressure is reduced to initiate sublimation. This ensures that the integrity and properties of the products remain intact, which is critical in fields such as pharmaceuticals and food preservation.
Interpreting Measurement Readings from the YR06612
Users of the YR06612 need to understand how to read various measurements displayed on the integrated touchscreen system. Key readings to focus on include temperature, vacuum levels, and drying time. Each of these measurements provides insights into the operational status and effectiveness of the freeze-drying process.
For instance, the cold trap temperature should always be monitored to ensure it remains below -50℃, which ensures effective ice capture. Additionally, maintaining a vacuum below 10 Pa is critical for optimizing sublimation rates. Regular checks and understanding these parameters can significantly influence product quality.
Common Misinterpretations of Results and Their Solutions
Mistakes can often occur in interpreting the results from the YR06612. Some common misinterpretations include:
- Misreading temperature: Users may confuse the display of cold trap temperature with that of the product. Ensure you are familiar with the display layout.
- Vacuum level assumptions: A vacuum reading fluctuating above 10 Pa can indicate issues with the system. Always cross-check with equipment maintenance logs.
- Drying time estimates: Users might expect uniform drying times across different materials. Each product has unique properties that can affect drying duration.
By understanding these potential pitfalls, operators can better navigate the results provided by the YR06612.
Site Requirements for Optimal Performance
To ensure that the YR06612 operates efficiently, specific site requirements and environmental conditions must be met. Users should consider factors such as temperature range, humidity levels, and adequate drainage systems.
The ideal installation area should maintain a stable ambient temperature, ideally between 15-30℃, and low humidity levels to prevent condensation on sensitive components of the dryer. A comprehensive site-preparation checklist should include:
| Requirement | Description |
|---|---|
| Temperature Control | Maintain ambient temperature between 15-30℃. |
| Humidity Control | Keep humidity levels below 60% to avoid condensation. |
| Power Supply | Ensure stable voltage and frequency as per device specifications. |
| Space Clearance | Provide adequate clearance around the unit for ventilation. |
| Drainage Facilities | Setup proper drainage to handle defrost water. |
Sector Adaptations for the YR06612
The YR06612 is versatile and can be adapted for various sectors including clinical, industrial, food production, and educational applications. Each sector has unique requirements and protocols for using the YR06612 effectively.
Clinical Applications
In clinical settings, the YR06612 is employed to preserve biological samples and pharmaceuticals. Proper interpretation of measurements is vital to ensure that sensitive compounds remain viable post-drying.
Industrial Applications
Industrial users leverage the YR06612 for mass production of dried goods, requiring precise measurements to optimize yield and maintain quality standards.
Food Production Applications
The food industry utilizes the YR06612 for preserving fruits and vegetables, where interpretation of drying cycles is critical for maintaining nutritional value.
Educational Applications
In educational environments, the YR06612 serves as a valuable teaching tool for demonstrating freeze-drying principles, requiring educators to effectively interpret results to enhance learning.
Frequently Asked Questions
What types of products can be freeze-dried using the YR06612?
The YR06612 is capable of freeze-drying a wide range of products including but not limited to fruits, vegetables, meats, soups, beverages, and temperature-sensitive pharmaceuticals.
How can I ensure accurate measurement readings on the YR06612?
Accurate readings can be ensured by regularly calibrating the device, maintaining a stable environmental condition, and following proper operating procedures as outlined in the user manual.
What should I do if the vacuum level exceeds 10 Pa?
If vacuum levels exceed 10 Pa, it is essential to check for leaks in the system, verify that the pump is functioning correctly, and consult the troubleshooting section of the user manual.
How long does the freeze-drying process typically take with the YR06612?
The duration of the freeze-drying process varies based on the product and quantity. However, the advanced optimization technology of the YR06612 significantly reduces traditional drying times.
What maintenance practices should I follow for the YR06612?
Regular maintenance includes monitoring and servicing the vacuum pump, cleaning filters, and checking calibration settings to ensure prolonged device functionality.
