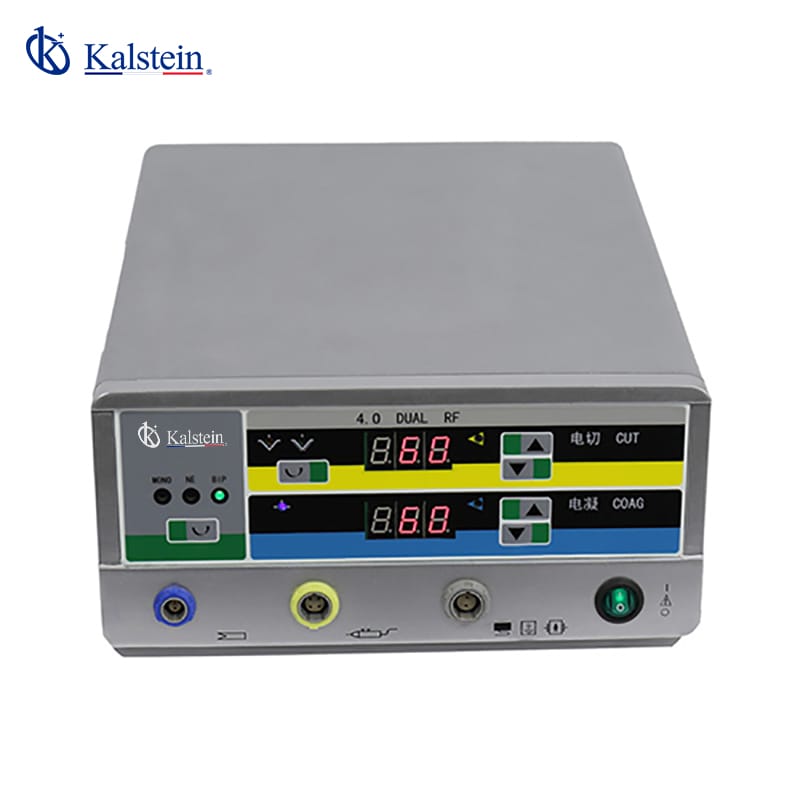

Troubleshooting Common Errors by Symptoms for the YR02147 Electrosurgical Generator
The YR02147 Electrosurgical Generator is a reliable device specifically designed for electrosurgical excision procedures, particularly in gynecology. Understanding common errors and their symptoms is crucial for effective troubleshooting and ensuring operational efficiency. This guide explores typical symptoms associated with the YR02147, their probable causes, and solutions, empowering users to address issues swiftly and confidently.
Technical Specifications of YR02147
| Model | YR02147 |
|---|---|
| Main Unit | |
| Base Output Frequency | 512 KHz |
| Pure/Mixed Cutting Power | 0 ~ 150 W |
| Pure Cut Waveform Shape | Continuous sine wave, max open voltage at 1700 V |
| Cut Waveform Mix 1 | 68% duty cycle sine wave, max open voltage at 1700V |
| Cut Waveform Mix 2 | 56% duty cycle sine wave, max open voltage at 1600 V |
| Cut Waveform Mix 3 | 32% duty cycle sine wave, max open voltage at 2000 V |
| Coagulation Power | 0 ~ 100 W |
| Soft Coagulation Power | 16% duty cycle, max open voltage at 3300V |
| Spot Coagulation Waveform | 16% duty cycle, max open voltage at 4600 V |
| Power Supply | 220 V / 50 Hz, rated current at 3.15 A |
| Leakage Current | <150 mA |
| Safety Standard | EN 60601-1 and 60601-2-2 |
| Smoke Extractor | |
| Volume | 30 ~ 100L / min, 8 adjustable levels |
| Internal Filter Efficiency | > 99.999% |
| External Filter Efficiency | > 99.97% with carbon filter for odor removal |
| Start Mode | With control or optional pedal |
Common Symptoms and Troubleshooting Solutions
When operating the YR02147 Electrosurgical Generator, users may encounter various symptoms indicating potential errors. Below is a comprehensive troubleshooting guide organized by symptom.
Equipment Does Not Power On
This issue may arise due to multiple factors.
- Probable Causes: A faulty power supply, incorrect power connection, or internal system failure.
- Diagnostic Steps: Check the power source, inspect all connections, and ensure the device is plugged in properly.
- Solutions: Replace the power cable, consult the user manual for internal reset instructions, or seek professional servicing if the problem persists.
Error Code E-03
This error typically indicates a problem with the return electrode.
- Probable Causes: An improper connection of the return electrode or a malfunction.
- Diagnostic Steps: Verify the electrode connection and inspect for any visible damage.
- Solutions: Reconnect or replace the return electrode, ensuring a secure fit to avoid interruptions in electrosurgical procedures.
Inconsistent Readings
Users may experience fluctuating readings during operation.
- Probable Causes: Electrode wear, improper calibration, or interference from external factors.
- Diagnostic Steps: Check electrode condition, recalibrate the device, and assess the environment for possible interference.
- Solutions: Replace worn electrodes, perform recalibration, and reduce any electronic interference by moving the generator away from other devices.
Symptom to Solution Table
| Symptom | Probable Causes | Solutions |
|---|---|---|
| Equipment Does Not Power On | Faulty power supply, incorrect connection, internal failure | Check power source, replace cables, reset system |
| Error Code E-03 | Improper return electrode connection | Reconnect or replace electrode |
| Inconsistent Readings | Electrode wear, improper calibration | Replace electrodes, recalibrate device |
Frequently Asked Questions
What should I do if the YR02147 Electrosurgical Generator is not functioning as expected?
If the YR02147 Electrosurgical Generator is not functioning correctly, first check the power connections and ensure that the device is properly calibrated. Refer to the troubleshooting section for detailed symptom analysis and solutions.
How can I ensure the return electrode is working properly?
To ensure the return electrode is functioning correctly, inspect it for damage, ensure it contacts the skin adequately, and verify connections. Look for any signs of wear and replace if necessary.
Is there any regular maintenance I should perform on the YR02147?
Regular maintenance includes checking the integrity of the power supply, inspecting electrodes for wear, and ensuring that all connections are secure. Additionally, regular calibration is recommended to maintain accuracy.
How can I interpret the error codes shown on the YR02147?
Refer to the user manual for a comprehensive list of error codes and their meanings. The manual provides guidance on troubleshooting steps for each code.
What are the common accessories needed for the YR02147?
Common accessories for the YR02147 include various cutting and coagulation electrodes, smoke evacuation filters, and a power pedal for convenient operation.
Where can I find replacement parts for the YR02147?
Replacement parts can typically be ordered through authorized distributors or directly through the manufacturer. Ensure to specify the model to obtain compatible components.
How can I request a quote for the YR02147 Electrosurgical Generator?
You can request a quote through the appropriate channels provided by the manufacturer or authorized distributors. Ensure to provide all necessary details for accurate pricing.
