Troubleshooting Common Errors on the YR02149: A Comprehensive Guide

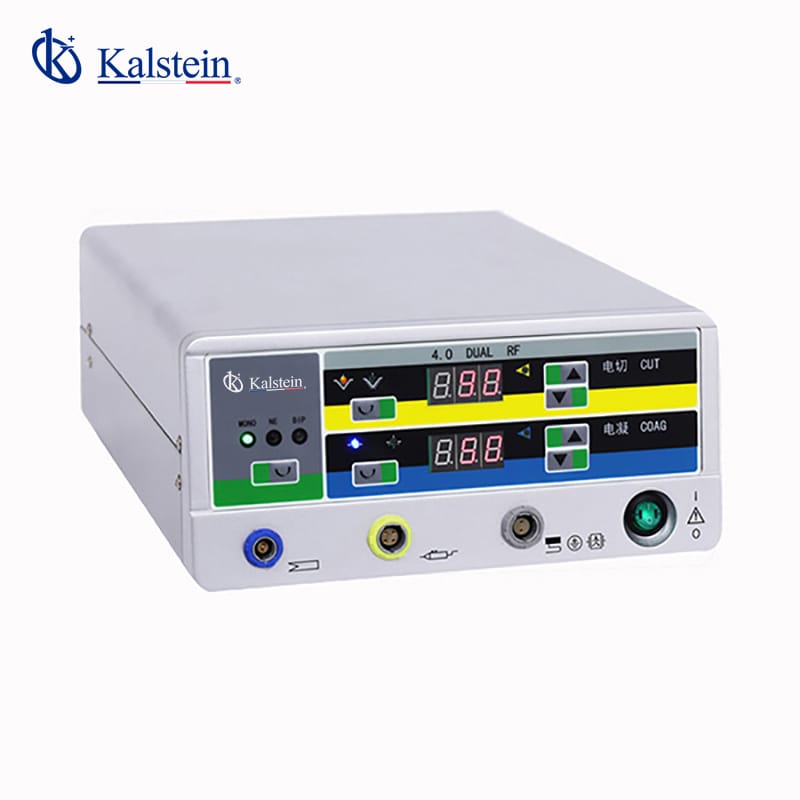

The YR02149 Radio Frequency Electrosurgical Unit is a sophisticated device designed for surgical procedures, featuring advanced technology that enhances operational efficiency. However, like any medical equipment, users may encounter common errors that require troubleshooting. This guide delves into frequent symptoms associated with the YR02149, offering practical solutions to resolve these issues effectively.
Understanding the YR02149 Electrosurgical Unit
The YR02149 model incorporates several working modes tailored to meet diverse surgical needs. Its advanced features include monopolar cut options, monopolar coagulation, bipolar cutting, and coagulation. With intelligent tissue monitoring capabilities, it ensures precise cutting and effective coagulation, improving surgical outcomes. Familiarity with its functionalities can aid in diagnosing and troubleshooting common issues.
Technical Specifications of the YR02149
| Model | YR02149 |
|---|---|
| Max Power / Rated Load | 120W / 500Ω |
| Monopolar Cut Options | Pure Cut, Blend 1, Blend 2 |
| Monopolar Coagulation Options | Fulgurate Coag, Spray Coag |
| Bipolar Cut Power | 60W / 100Ω |
| Bipolar Coagulation Power | 60W / 100Ω |
| Electrical Requirements | Monopolar Frequency: 4.0MHZ ±2%; Bipolar Frequency: 1.84MHZ ±2%; Max Input Current: 1400VA |
| Operating Conditions | Temperature: 50°C to 40°C; Humidity: ≤ 95% non-condensing; Pressure: 700 hPa to 1060 hPa |
Common Symptoms and Troubleshooting Steps
Identifying symptoms is the first step in troubleshooting the YR02149. Below is a comprehensive guide structured by common symptoms.
Equipment Does Not Power On
One of the most frustrating issues may be when the YR02149 fails to power on. Below are potential causes and solutions:
- Power Source Issue: Ensure the device is plugged into a functional power outlet. Check for any blown fuses or tripped circuit breakers.
- Faulty Power Cable: Inspect the power cable for damage or loose connections. Replace if necessary.
- Internal Malfunction: If power supply appears normal, there may be an internal hardware issue requiring professional servicing.
Error Code E-03
Error code E-03 is common and indicates a specific malfunction. Here’s how to address it:
- Tissue Monitoring Failure: This usually suggests a problem with tissue density detection. Check connections and ensure the active electrode is clean and correctly positioned.
- Overheating: Ensure the unit is not overheating. Allow the device to cool down and check for any obstructions in ventilation.
Inconsistent Readings
Inconsistent readings could impact surgical outcomes. Consider the following:
- Electrode Condition: Worn or damaged electrodes can lead to fluctuating readings. Regularly check and replace them as needed.
- Calibration Issues: Ensure the unit is properly calibrated. Refer to the user manual for calibration instructions.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment does not power on | Power source issue | Check power connection and outlet |
| Equipment does not power on | Faulty power cable | Inspect and replace the power cable |
| Error code E-03 | Tissue monitoring failure | Check connections and clean electrodes |
| Error code E-03 | Overheating | Allow cooling and check ventilation |
| Inconsistent readings | Worn electrodes | Regularly check and replace electrodes |
| Inconsistent readings | Calibration issues | Refer to the user manual for calibration |
Frequently Asked Questions
What are common error codes for the YR02149 and their meanings?
Common error codes for the YR02149 include E-01, indicating a power failure, and E-03, which signifies a tissue monitoring failure. Understanding these codes helps in quick troubleshooting.
How can I ensure the YR02149 operates optimally?
Regular maintenance, including cleaning, calibrating, and replacing worn electrodes, is essential to keep the YR02149 functioning optimally.
What is the recommended calibration process for the YR02149?
The calibration process for the YR02149 involves setting the device to known standards and ensuring all measurements align properly. Refer to the user manual for detailed steps.
How often should the electrodes of the YR02149 be replaced?
Electrodes should be checked regularly and replaced when wear is evident or after a specified number of uses, typically after each surgical procedure to ensure precision in operations.
What should I do if the YR02149 shows overheating symptoms?
If the device shows signs of overheating, turn it off immediately, allow it to cool, and check for blockages in ventilation before resuming use.
What environmental conditions are ideal for operating the YR02149?
The YR02149 should be operated within a temperature range of 50°C to 40°C and with relative humidity ≤ 95% non-condensing to ensure optimal performance.
How can I request a quote for the YR02149?
To request a quote for the YR02149, you can contact our sales team directly or visit our online platform to submit a request.
