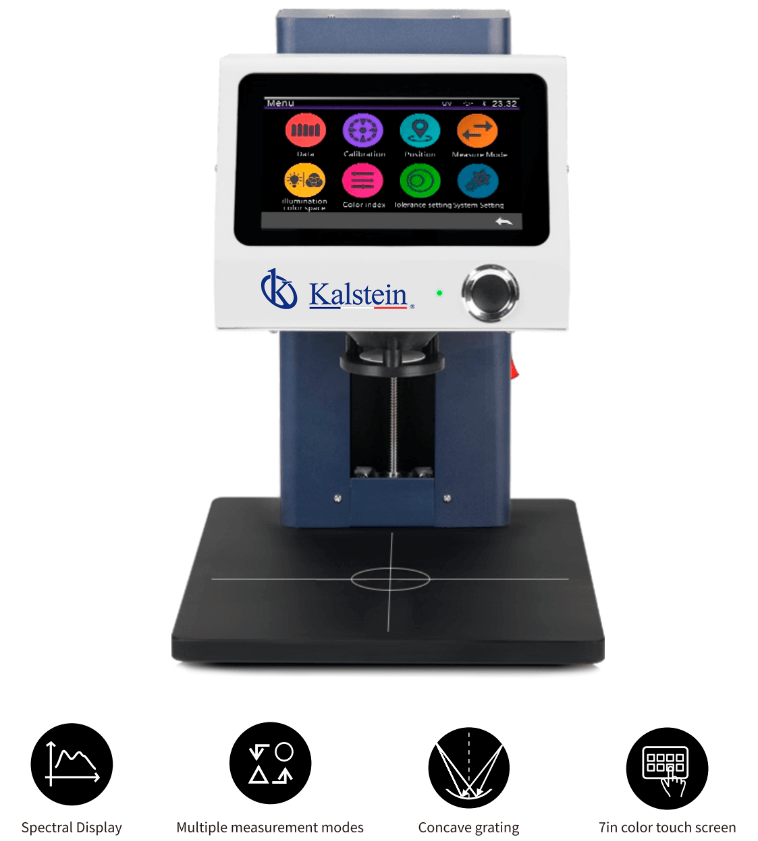

Troubleshooting Common Errors on the YR05481 Spectrophotometer
The YR05481 Spectrophotometer is an advanced contactless device designed for precise color measurement. While it boasts high accuracy and a user-friendly interface, operators may encounter occasional issues that could hinder its performance. This guide aims to address common errors and troubleshooting techniques specific to the YR05481, ensuring continuous operational efficiency.
Understanding the YR05481 Spectrophotometer
The YR05481 operates using D/8 optical geometry, making it suitable for measuring powders and unconventional materials. This spectrophotometer features a full-spectrum LED light source and a high-precision CMOS image sensor, enabling it to deliver stable and high-fidelity results. Being aware of its functionalities helps in diagnosing issues effectively.
Technical Specifications of YR05481
| Model | YR05481 |
|---|---|
| Optical Geometry | D/8 (diffuse illumination, 8° reception) |
| Light Source | Full-spectrum LED |
| Measurement Wavelength | 400-700nm |
| Measurement Range | 0-200% |
| Measurement Aperture | 20 mm |
| Distance Measurement | 3.0mm (+0.2mm) |
| Sample Height | 0-160mm |
| Data Storage | Up to 48,000 measurements |
Common Symptoms and Their Troubleshooting Solutions
Understanding the symptoms of common errors is crucial for effective troubleshooting. Below are some prevalent issues operators may face, along with diagnostic steps and solutions.
Equipment Does Not Power On
This is one of the most critical issues that can arise. If the YR05481 does not power on, it may be due to several reasons:
- Check the power connection and ensure it is securely plugged in.
- Inspect the power adapter for any visible damage.
- Test the power outlet with another device to verify it is functional.
Solution: If all connections are secure and the outlet is functional, attempt to reset the device by unplugging it for a few minutes, then plug it back in.
Error Code E-03
Error code E-03 indicates a calibration issue. It could result from sensor misalignment or unstable environmental conditions.
- Check if the spectrophotometer is placed on a stable surface to avoid vibration.
- Ensure the calibration plate is clean and correctly positioned.
- Re-calibrate the device following the operations manual.
Solution: After ensuring stability and cleanliness, perform a fresh calibration. If the error persists, contact technical support.
Inconsistent Readings
If the YR05481 provides inconsistent readings, it might be due to several factors:
- Environmental variations such as temperature and humidity can affect readings.
- Sample characteristics, such as surface irregularities or improper sample height.
- Incorrect measurement modes being selected.
Solution: Ensure the device is operated in controlled environmental conditions, maintain a consistent sample height, and select the appropriate measurement mode.
Frequent Calibration Required
Requiring frequent calibration can indicate underlying issues:
- The light source might be failing.
- Environmental conditions might be affecting the performance.
- Usage in high humidity or temperature conditions beyond the specified range.
Solution: Inspect the light source for lifetime signs. Consider relocating the spectrophotometer to a more controlled environment.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power connection issue | Check connections, reset device |
| Error Code E-03 | Calibration error | Stabilize device, recalibrate |
| Inconsistent Readings | Environmental variation | Control environment, adjust sample height |
| Frequent Calibration Required | Light source failure | Inspect light source, control environment |
Frequently Asked Questions
What should I do if my YR05481 displays an error code?
First, refer to the user manual for specific error code definitions. For common errors, follow the troubleshooting strategies outlined in this article. If issues persist, consider reaching out to technical support.
How often should the YR05481 be calibrated?
Calibration frequency can depend on usage. For general use, it is advisable to calibrate the YR05481 at the start of each day or before critical measurements. More frequent calibration may be necessary in fluctuating environments.
Can the YR05481 be used in humid conditions?
While the YR05481 operates optimally in controlled environments, it can handle humidity levels up to 85% without condensation. Ensure that the spectrophotometer is appropriately housed in an environment that minimizes humidity-related issues.
What types of samples can be measured with the YR05481?
The YR05481 is versatile and can measure powders, liquids, and various non-conventional materials, making it suitable for multiple industries.
Is there a customer support line for the YR05481?
Yes, technical support is available for all YR05481 users. It's advisable to contact your dealer or manufacturer for immediate assistance.
Where can I purchase replacement parts for the YR05481?
Replacement parts can typically be ordered through your original supplier or manufacturer. Ensure compatibility by referencing the YR05481 specifications before making any orders.
