Technical Glossary and Key Terminology for the YR06615 pH Meter
The YR06615 pH Meter is a high-precision professional instrument designed for rigorous pH, ORP, and temperature control in laboratories, industries, universities, and field applications. Understanding the technical terminology related to this equipment is crucial for optimal performance and accurate measurements. This article provides an in-depth glossary of key terms essential for operating the YR06615.
Introduction to the YR06615 pH Meter

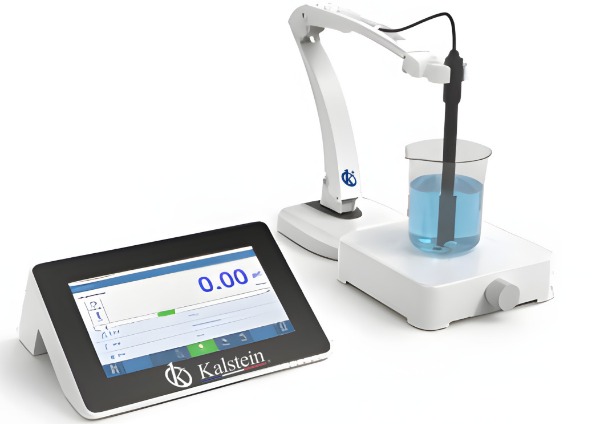

The YR06615 pH Meter is equipped with a large, user-friendly color touchscreen that facilitates direct measurements, efficient data entry, and user management in compliance with Laboratory Good Practices. With a wide measurement range of -2.000 to 20.000 pH and a precision of ±0.002 pH, it is a reliable solution for demanding analyses.
Technical Specifications Table
Model | YR06615 | |
Measurement Parameter | Feature | Detail |
pH | Measurement Range | (-2.000 ~ 20.000) pH |
Resolution | 0.1 / 0.01 / 0.001 pH | |
Accuracy | ±0.002 pH | |
Automatic Calibration | 1, 2, 3, 4, 5 points | |
Input Current | ≤2×10−12 A | |
Input Impedance | ≥1×1012 Ω | |
Stability | ±0.01 pH / 3h | |
Temperature Compensation | (0 ~ 100) °C, automatic or manual | |
mV (ORP) | Measurement Range | (-2000.0 ~ 0 ~ 2000.0) mV |
Resolution | 1 / 0.1 mV | |
Accuracy | ±0.1 (-500.0~500.0) mV, ±0.2 (＜-500.0mV or ＞500.0mV) | |
Temperature | Measurement Range | (-30.0 ~ 130.0) °C |
Resolution | 0.1 °C | |
Accuracy | ±0.1℃ (0~100.0℃), ±0.3℃ (＜0.0℃ or ＞100.0℃) | |
Data Storage | 2000 sets | |
Power Supply | DC 12V / 1A | |
Output | USB | |
Ambient Temperature | 5 ~ 40 ℃ | |
Ambient Humidity | ≤85% | |
Protection Grade | IP54 | |
Dimensions (L × W × H) | 215 × 170 × 37 mm | |
Net Weight | 600 g | |
Shipping Dimensions (L × W × H) | 470 × 430 × 72 mm | |
Gross Weight | 3 kg | |
Glossary of Key Terms
| Term | Definition |
|---|---|
| pH | A measure of the acidity or alkalinity of a solution, ranging from 0 (acidic) to 14 (alkaline). |
| ORP | Oxidation-Reduction Potential, a measure of the ability of a solution to oxidize or reduce substances. |
| Calibration | The process of adjusting the accuracy of measurement instruments, typically involving comparison with standard solutions. |
| Resolution | The smallest change in measurement that can be detected by the instrument. |
| Accuracy | The degree to which the measurements reflect the true value. |
| Automatic Calibration | The capability of a meter to calibrate itself using predefined standards without manual intervention. |
| USB Output | A port that allows data to be transferred to a computer or external storage device. |
| Data Storage | The capacity of the device to save measurement data for future reference. |
| IP54 Rating | A rating that indicates the device is protected against dust and splashes of water. |
| Temperature Compensation | Adjustments made to account for temperature variations affecting measurement accuracy. |
| Ambient Conditions | The environmental factors surrounding the equipment, including temperature and humidity. |
| Good Laboratory Practices (GLP) | A set of principles to ensure the integrity and reliability of test data. |
| Stability | The ability of an instrument to maintain consistent measurements over time. |
| Electrode | A conductor through which electricity enters or leaves an electrochemical cell. |
| Buffer Solutions | Solutions that resist changes in pH when small amounts of acid or base are added. |
Frequently Asked Questions
What are the key features of the YR06615 pH Meter?
The YR06615 pH Meter is characterized by its high precision, a wide measurement range, automatic calibration capabilities, and robust construction suitable for laboratory and field use. It supports user management in compliance with Good Laboratory Practices and has a user-friendly color touchscreen interface.
How does the calibration process work for the YR06615?
The YR06615 allows for automatic calibration with options for 1 to 5 points using standard buffer solutions. The calibration process ensures accurate measurements by aligning the device's output with known pH values.
Can the YR06615 measure temperature and ORP?
Yes, the YR06615 measures temperature in a range from -30 °C to 130 °C and ORP up to ±2000 mV, making it a versatile tool for various applications.
How is data stored and exported on the YR06615?
The YR06615 can store up to 2000 sets of data, including timestamps and sensor identification. Data can be easily exported via USB for reporting or auditing purposes.
What maintenance is required for the YR06615?
Regular maintenance includes periodic calibration with certified buffer solutions, cleaning electrodes, and proper storage of the instrument after use to ensure longevity and accuracy.
What is the significance of the IP54 rating for the YR06615?
The IP54 rating signifies that the YR06615 is protected against dust and water splashes, ensuring reliable operation in various environments, including laboratory and field settings.
How can I request a quote for the YR06615 pH Meter?
You can easily request a quote for the YR06615 pH Meter by contacting us through our customer service channels. Our team will assist you with pricing and availability.
