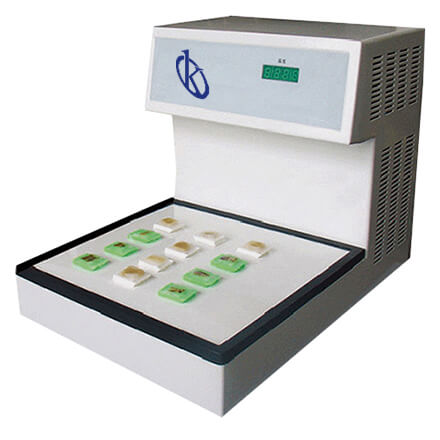

Site Requirements and Environmental Conditions for the YR440 Cooling Plate
The YR440 Cooling Plate is pivotal in histology labs for ensuring high-quality paraffin block sectioning. Proper operation is contingent on meeting specific environmental conditions and site requirements. This guide outlines the essential elements necessary for the optimal performance of the YR440.
Understanding Environmental Conditions
Environmental conditions play a critical role in the functionality of the YR440 Cooling Plate. The following factors should be monitored and controlled:
- Temperature: The cooling plate operates best within a specified temperature range.
- Humidity: Maintaining appropriate humidity levels is essential to prevent condensation.
- Voltage and Frequency: Ensure that the electrical supply matches the required specifications.
- Ventilation: Adequate airflow is necessary to prevent overheating during operation.
Temperature Range
The YR440 functions effectively within a defined temperature range. It is crucial to understand these limits to avoid any operational issues:
| Condition | Recommended Range |
|---|---|
| Operating Temperature | -5°C to 10°C |
| Storage Temperature | -10°C to 50°C |
Humidity Levels
Humidity affects the cooling process and the integrity of the specimens being processed. Maintaining humidity levels between 30% and 70% is ideal to prevent moisture-related issues.
Voltage and Frequency Specifications
The YR440 Cooling Plate is compatible with dual voltage systems. Ensure the following voltage specifications are adhered to:
- AC 220V 50Hz
- AC 110V 60Hz
Operating outside these parameters can lead to equipment malfunction or damage.
Ventilation Requirements
Proper ventilation is essential for the YR440 to function optimally. Ensure that there is sufficient space around the unit for airflow:
- Minimum clearance of 30 cm around the cooling plate.
- Avoid placing the unit near heat sources or under direct sunlight.
Vibration and EMI Considerations
The YR440 should be placed in an area with minimal vibration and electromagnetic interference (EMI). This ensures accurate readings and prolongs the life of the equipment. Keep the cooling plate away from machinery that generates significant vibrations.
Drainage and Water Supply
It is essential to ensure that any condensate produced by the cooling plate is adequately drained away. A nearby water supply may also be necessary for cleaning purposes:
- Install a drainage system that can handle excess moisture.
- Have access to clean water for maintenance and cleaning.
Site-Prep Checklist
Prior to installation, use this checklist to ensure your site meets the necessary conditions for the YR440 Cooling Plate:
| Checklist Item | Status |
|---|---|
| Temperature control in place | ✔️ |
| Humidity control in place | ✔️ |
| Appropriate electrical supply available | ✔️ |
| Ventilation arrangements made | ✔️ |
| Drainage system prepared | ✔️ |
Technical Specifications of YR440 Cooling Plate
| Model | YR440 (current) |
|---|---|
| Cooling Plate Area | 320x300mm |
| Voltage | AC220V 50Hz AC110V 60Hz |
| Power | 300W |
| Dimension | 590×345×385 mm (Width×Depth×Height) |
| Weight | 27 kg |
Frequently Asked Questions
What are the ideal environmental conditions for operating the YR440 Cooling Plate?
The ideal environmental conditions for the YR440 Cooling Plate include a temperature range of -5°C to 10°C, humidity levels between 30% and 70%, and an appropriate electrical supply of either AC 220V 50Hz or AC 110V 60Hz.
How does temperature affect the performance of the YR440?
Temperature directly impacts the cooling efficiency of the YR440. Operating outside the recommended range can lead to improper cooling of paraffin blocks, resulting in poor quality cuts.
Why is proper ventilation important for the YR440?
Proper ventilation prevents overheating of the YR440 Cooling Plate. It allows the unit to operate efficiently and prolongs the lifespan of the equipment by maintaining a stable operating temperature.
What should be done to ensure proper drainage for the YR440?
To ensure proper drainage, install a drainage system that can manage the condensate produced by the cooling process. Additionally, having access to clean water for maintenance is crucial.
Are there specific installation requirements for the YR440 Cooling Plate?
Yes, installation requirements include ensuring adequate clearance around the unit, providing a stable surface, and confirming that all environmental conditions are met before powering up the unit.
How can I optimize the use of the YR440 Cooling Plate in my laboratory?
Optimizing the YR440 involves maintaining controlled environmental conditions, ensuring proper setup according to the technical specifications, and regularly monitoring performance to make necessary adjustments.
