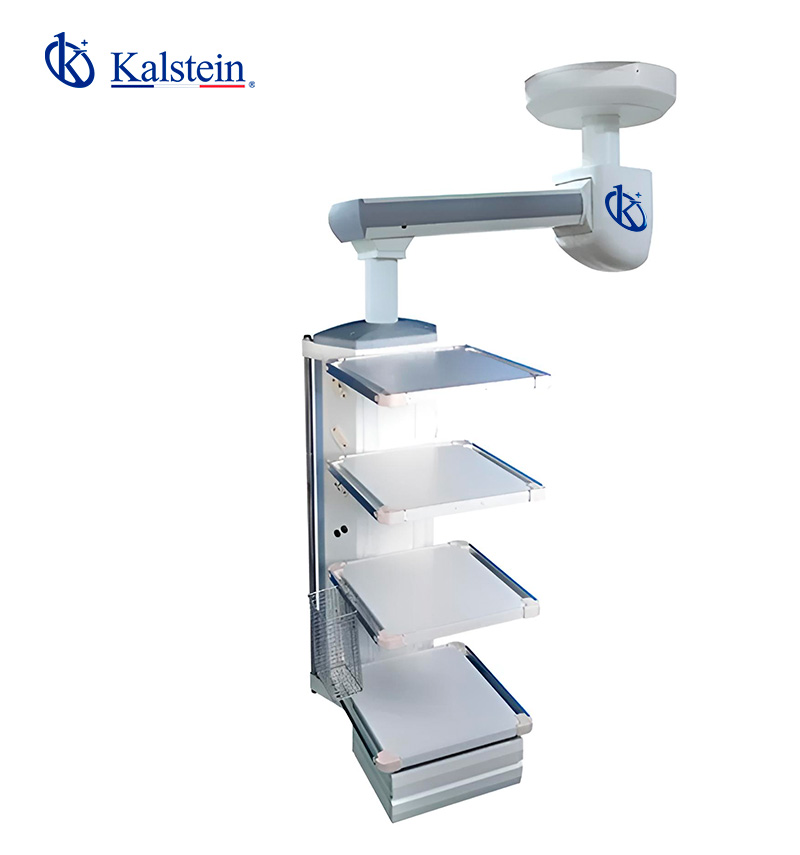

Site Requirements and Installation Conditions for the YR02085 Single Arm Endoscopy Pendant
The YR02085 Single Arm Endoscopy Pendant is a crucial piece of equipment that enhances the efficiency and safety of medical procedures. Proper installation and site requirements are essential for its optimal performance. This article delves into the necessary environmental conditions and installation prerequisites specific to the YR02085 model, ensuring that healthcare facilities can maximize its utility.
Understanding the YR02085: Key Features
| Model | YR02085 |
|---|---|
| Arm Rotating Radius | 800mm + 800mm |
| Arm Rotating Angle | 340° |
| Braking System | Friction Brake |
| Maximum Load Capacity | 120 kg |
| Standard Configuration | 2 Oxygen (O2), 1 Air, 1 Suction (Vac), 1 Jet Exhaust Emission (AGSS), 10*10A Power Outlets, 1 Network Socket, 1 Grounding Terminal |
Environmental Conditions for the YR02085
To ensure the YR02085 operates efficiently, the installation site must meet specific environmental conditions. Here are the primary factors to consider:
- Temperature Range: The equipment should ideally operate within a temperature range of 10°C to 35°C to ensure effective functionality.
- Humidity Levels: Relative humidity should be maintained between 30% and 75% to prevent condensation and potential damage to the electronic components.
- Voltage and Frequency: Ensure that the voltage supply matches the requirements of the YR02085, generally 220V to 240V, with a frequency of 50Hz.
Installation Requirements
The installation of the YR02085 requires careful planning and execution. Here are the crucial installation steps to follow:
- Ceiling Suspension Method: The YR02085 uses a ceiling suspension method, which facilitates easy access for medical staff. Ensure that the ceiling structure can support the pendant and that it is securely anchored.
- Clearance Space: Adequate clearance around the pendant is necessary. A minimum of 2 meters of vertical clearance is recommended to prevent obstruction during operation.
- Electrical Outlets: Ensure that there are multiple 10A power outlets available and a network socket for integration with hospital systems.
Site Preparation Checklist
| Requirement | Details |
|---|---|
| Ceiling Strength | Must support suspension hardware and pendant weight. |
| Electrical Compliance | Ensure outlets meet voltage and current specifications. |
| Environmental Control | Maintain temperature and humidity within specified ranges. |
| Access Space | Allow for sufficient space around the unit for operation and maintenance. |
Common Installation Mistakes
Even with careful planning, mistakes can occur during installation. Here are some common pitfalls to avoid:
- Inadequate Ceiling Support: Not verifying the ceiling's strength can lead to serious safety hazards.
- Ignoring Clearance Space: Failing to account for space needed for operations can hinder access and functionality.
- Electrical Misconfiguration: Incorrect voltage or insufficient power outlets can cause system malfunctions.
Frequently Asked Questions
What are the specific environmental conditions required for the YR02085?
The YR02085 requires a temperature range of 10°C to 35°C, humidity levels between 30% and 75%, and a voltage supply of 220V to 240V with a frequency of 50Hz.
How should the YR02085 be installed in a medical facility?
The YR02085 should be suspended from the ceiling with a strong support structure, ensuring adequate clearance and access for medical staff to operate efficiently.
What is the maximum load capacity of the YR02085?
The maximum load capacity of the YR02085 is 120 kg, which should be adhered to for safe operation.
What accessories are available for the YR02085?
The YR02085 can be equipped with various gas outlet adapters, friction brakes, and optional pneumatic systems, making it versatile for different clinical needs.
Are there any common mistakes to avoid during installation?
Common mistakes include inadequate ceiling support, not ensuring sufficient clearance around the unit, and incorrect electrical configurations.
How can I ensure a successful installation of the YR02085?
To ensure successful installation, follow the site preparation checklist, verify environmental conditions, and confirm the ceiling's structural integrity before proceeding.
Is there a training requirement for operating the YR02085?
Yes, personnel should be trained in the proper operation and safety protocols associated with the YR02085 to maximize its functionality and ensure patient safety.
