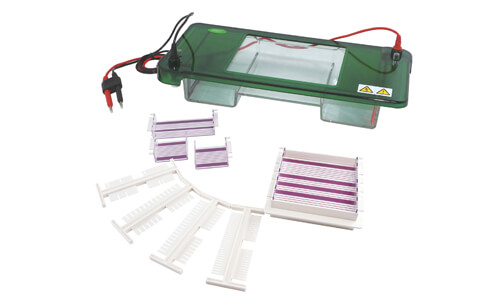

Site Requirements and Environmental Conditions for the YR03418 Horizontal Electrophoresis Unit
Understanding the environmental conditions and installation requirements for the YR03418 Horizontal Electrophoresis Unit is crucial for its optimal performance and longevity. This article will guide you through the essential factors to consider when setting up this versatile electrophoresis system.
Technical Specifications of the YR03418
| Model | YR03418 |
|---|---|
| Gel Size (WxL) | 140x140mm; 140x70mm; 70x70mm |
| Sample Volume | 1,2,3,6,14,8,17,13,29 |
| Buffer Volume | ~900ml |
| Dimensions (LxWxH) | 390x187x63mm |
| Net Weight | 2.0Kg |
Ideal Environmental Conditions for YR03418
To ensure the YR03418 functions at its best, certain environmental conditions must be maintained. This includes temperature, humidity, and ventilation, which significantly affect the accuracy and reliability of electrophoresis results.
Temperature Range
The YR03418 is designed to operate efficiently within a temperature range of 15°C to 30°C. Operating outside this range can lead to suboptimal performance and potential damage to the unit.
Humidity Levels
Humidity plays a critical role in electrophoresis processes. An ideal relative humidity level is between 40% and 60%, as excessive humidity can cause condensation within the unit, affecting electrical components and samples.
Electrical Requirements for YR03418
The YR03418 requires a stable power supply for effective operation. Understanding the electrical requirements is essential for avoiding equipment failure.
Voltage and Frequency
The unit operates optimally at a voltage of 110-240V, with a frequency of 50-60Hz. Ensure that your laboratory's electrical system meets these specifications to prevent power-related issues.
Grounding and Power Supply
Proper grounding is critical. Ensure the electrophoresis unit is connected to a grounded outlet to prevent electrical shocks and damage to the unit.
Ventilation and Placement Considerations
Proper ventilation is vital for the longevity and performance of the YR03418. Adequate airflow can help maintain the correct operating temperature and prevent overheating.
Placement Guidelines
- Ensure at least 10 cm of clearance around the unit for airflow.
- Avoid placing the unit near heat sources that can elevate the ambient temperature.
- Position the unit on a flat, stable surface to prevent tipping and ensure accurate operation.
Vibration and Electromagnetic Interference (EMI)
The YR03418 is sensitive to vibrations and electromagnetic interference, which can compromise experimental results.
Vibration Control Measures
To minimize vibrations, place the electrophoresis unit on a sturdy lab bench away from heavy machinery or high-traffic areas. Consider using vibration-damping mats if necessary.
EMI Prevention
Keep the unit away from devices that emit strong electromagnetic fields, like generators or large motors, to reduce the risk of interference that could affect operation.
Common Installation Mistakes to Avoid
Proper installation is key to the effective functioning of the YR03418. Below are common mistakes to avoid during setup:
- Failing to secure a stable power supply.
- Ignoring clearance requirements around the unit.
- Placing the unit in an area with high humidity or temperature fluctuations.
Site Preparation Checklist
| Requirement | Details |
|---|---|
| Temperature Control | Maintain between 15°C and 30°C |
| Humidity Control | Maintain between 40% and 60% |
| Electrical Supply | 110-240V, 50-60Hz, grounded |
| Ventilation | Minimum 10 cm clearance |
| Vibration Control | Stable, non-vibrating surface |
| EMI Protection | Away from strong electromagnetic sources |
Frequently Asked Questions
What are the optimal temperature and humidity levels for operating the YR03418?
The optimal temperature range for the YR03418 is between 15°C and 30°C, while humidity levels should be maintained between 40% and 60% for best performance.
How do I ensure proper electrical connections for the YR03418?
Ensure that the unit is connected to a grounded outlet with a voltage supply between 110-240V and frequency of 50-60Hz to prevent electrical issues.
What placement considerations should I take into account for the YR03418?
Place the unit on a stable surface with at least 10 cm clearance around it for optimal airflow, and avoid locations near heat sources or heavy machinery.
What steps can I take to minimize vibration and electromagnetic interference?
Position the unit away from vibrations by using a sturdy lab bench and consider vibration-damping mats. Keep it distanced from devices that emit electromagnetic fields.
Are there specific requirements for site preparation before using the YR03418?
Yes, ensure all environmental, electrical, and placement requirements are met. Use the site preparation checklist provided to confirm compliance.
What are common mistakes to avoid when installing the YR03418?
Common mistakes include ignoring the required temperature and humidity levels, failing to secure stable electrical connections, and not allowing sufficient clearance around the unit.
How can I request a quote for the YR03418?
You can easily request a quote for the YR03418 through our service channels, and we will provide you with the best pricing options available.
