Zoom Stereo Microscope YR0246 // YR0248
Zoom Stereo Microscope YR0246 // YR0248 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

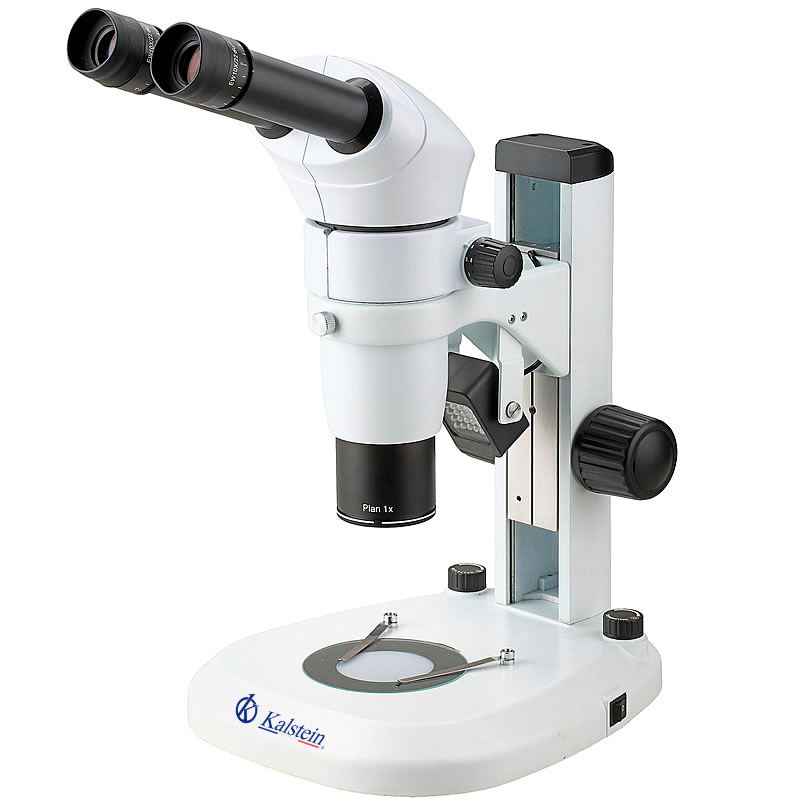

The Zoom Stereo Microscope YR0246 // YR0248 is a versatile and advanced microscopy solution designed to cater to the needs of both professionals and enthusiasts in various scientific and industrial fields. Featuring a parallel optical system with a modular design, this microscope allows for easy functionality enhancements. With a large zoom ratio of up to 1:10 and a user-adjustable viewing angle of 0°-35°, it provides exceptional flexibility and clarity. The integrated LED illumination system ensures a bright and consistent light source, boasting a long working life of 6000 hours. Complete with accessories for polarizing, dark field, and fluorescent applications, this microscope is an excellent choice for detailed analysis and observation.
Market Price
The Zoom Stereo Microscope YR0246 // YR0248 falls within an average market price range approximately between 3400 USD to 4300 USD. This competitive pricing is reflective of its high-quality features and adaptable design, making it suitable for both educational and professional settings.
Frequently Asked Questions
What are the magnification ranges available for these models?
The YR0246 offers a magnification range of 0.8~5.0x, while the YR0248 can achieve up to 8.0x, accommodating a wide variety of observation needs.
Is the illumination adjustable?
Yes, the LED illumination is both adjustable in brightness and has a long working life, ensuring optimal lighting conditions for any observation.
Advantages and Disadvantages
Advantages:
One of the significant advantages of the Zoom Stereo Microscope is its modular design, allowing users to add or remove functionalities as needed. The wide-angle head and adjustable illumination also contribute to its ease of use and adaptability.
Disadvantages:
A possible disadvantage might be the complexity of initial setup for novice users, as the variety of available attachments may offer a learning curve.
Product Usage in the Field
This microscope is perfect for a variety of applications, including biological research, quality control in manufacturing processes, and educational purposes. Its flexibility and comprehensive accessory options make it ideal for examining samples in fields such as geology, paleontology, and electronics.
Recommendations
To maximize the utility of your Zoom Stereo Microscope, it is recommended to regularly clean the lenses with suitable optical cleaning solutions and to store it in a dust-free environment. Using the illumination system's full spectrum to balance light intensity will also extend the lifespan of the LEDs.
Features
- Parallel Optical System, Modular Design for Easy Functionality Enhancements
- Zoom ratio of up to 1:10
- User-adjustable viewing angle of 0°-35°
- LED illumination, adjustable brightness, 6000-hour lifespan
- Accessories for polarizing, dark field, and fluorescent applications
- Optional Plan Apochromatic Objective 0.5x
Technical Specifications
| Model | YR0246 | YR0247 | YR0248 | |
| Optical System | Parallel Optical System, Module Design to Add Function Easily | ● | ● | ● |

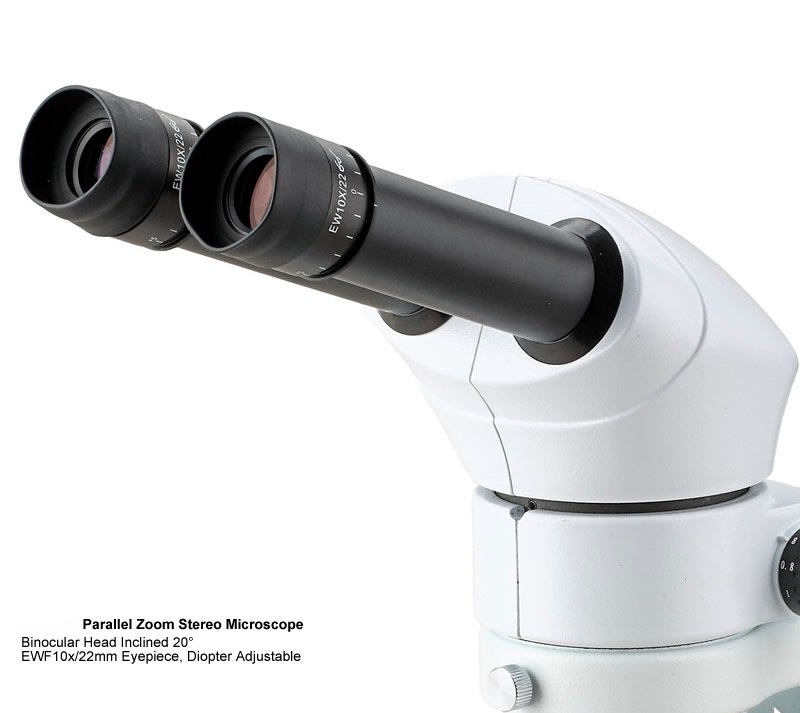

| Head | Binocular Head 20° Inclined | ● | ● | ● |
| Titling Head 0°-35° Viewing Angle Adjustable for User | o | o | o | |
| Eyepiece | Extra Wide Field Eyepiece EWF10x/22mm，Diopter Adjustable,Interpupillary 55-75mm | ● | ● | ● |
| Zoom Body | 0.8~5.0x, Zoom Ratio 1:6 | ● | - | - |
| 0.8~6.4x, Zoom Ratio 1:8 | - | ● | - | |
| 0.8~8.0x, Zoom Ratio 1:10 | - | - | ● | |

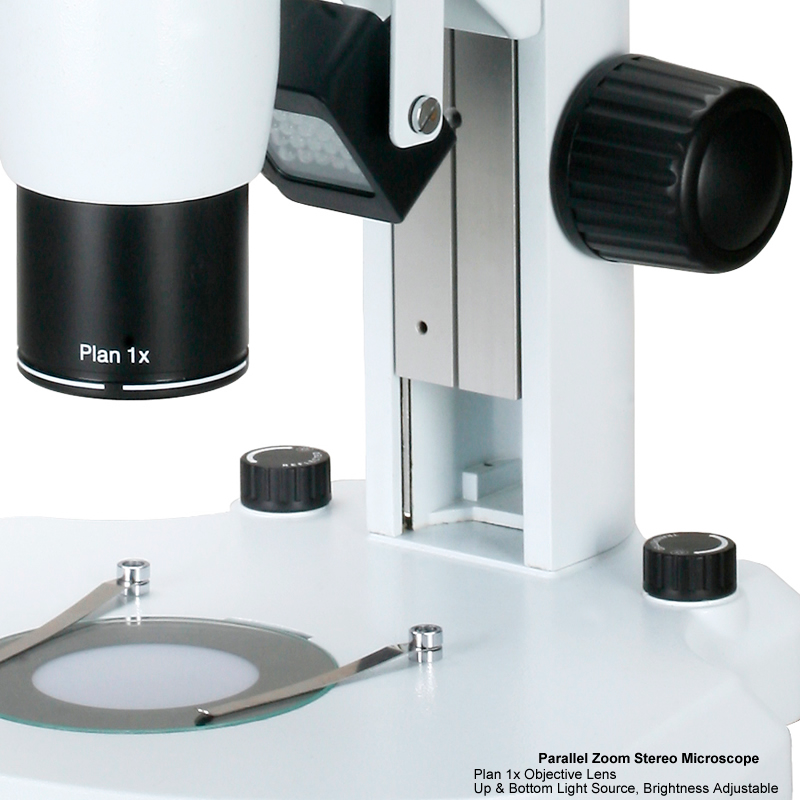

| Auxiliary Lens | Plan Achromatic Lens 1.0x | ● | ● | ● |
| Working Distance | 78mm | ● | ● | ● |
| Focusing | Coarse Focusing Konb, Range 105mm | ● | ● | |
| Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm , Focusing Mount Inner Dia. 76mm | ● | |||
| Illumination | Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours | |||
| Model | Cata. No. | |||

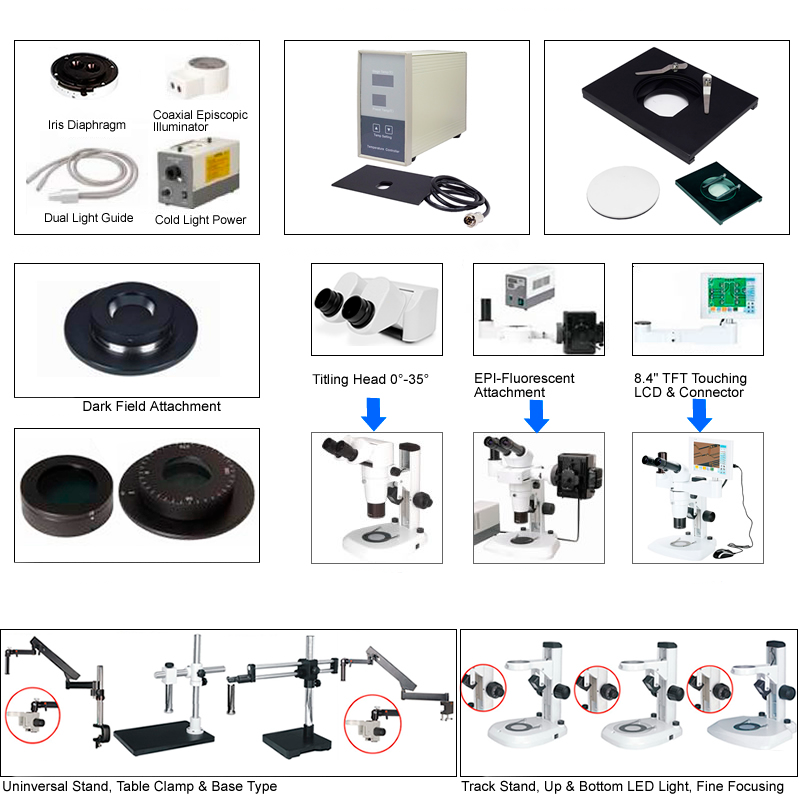

| Head | Titling Head 0°-35° Viewing Angle Adjustable for User | YR0248-op1 | ||
| Model Change to A23.1005 | ||||
| Eyepiece | WF15x/16mm | YR0248-op2 | ||
| WF20x/12mm | YR0248-op3 | |||
| WF30x | YR0248-op4 | |||
| Auxiliary Lens | Plan Apochromatic Lens 0.5x | YR0248-op5 | ||
| Plan Achromatic Lens 1.0x | YR0248-op6 | |||
| Plan Achromatic Lens 2.0x | YR0248-op7 | |||
| Achromatic Lens 0.3x | YR0248-op8 | |||
| Achromatic Lens 0.5x | YR0248-op9 | |||
| Illumination | Coaxial Illumination Set: | YR0248-op4 | ||
| --Cold Light Power Supplier, | ||||
| --Dual Light Guide, | ||||
| --Coaxial Episcopic Illuminator, | ||||
| --Iris Diaphragm | ||||
| Iris Diaphragm | YR0248-op5 | |||

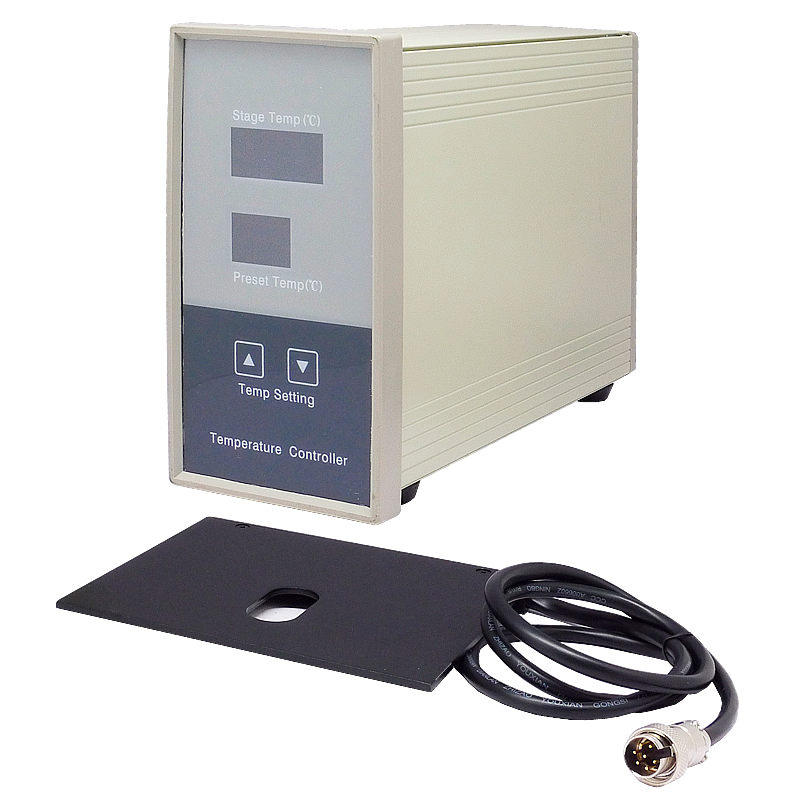

| Working Stage | Temperature Control Stage | YR0248-op6 | ||

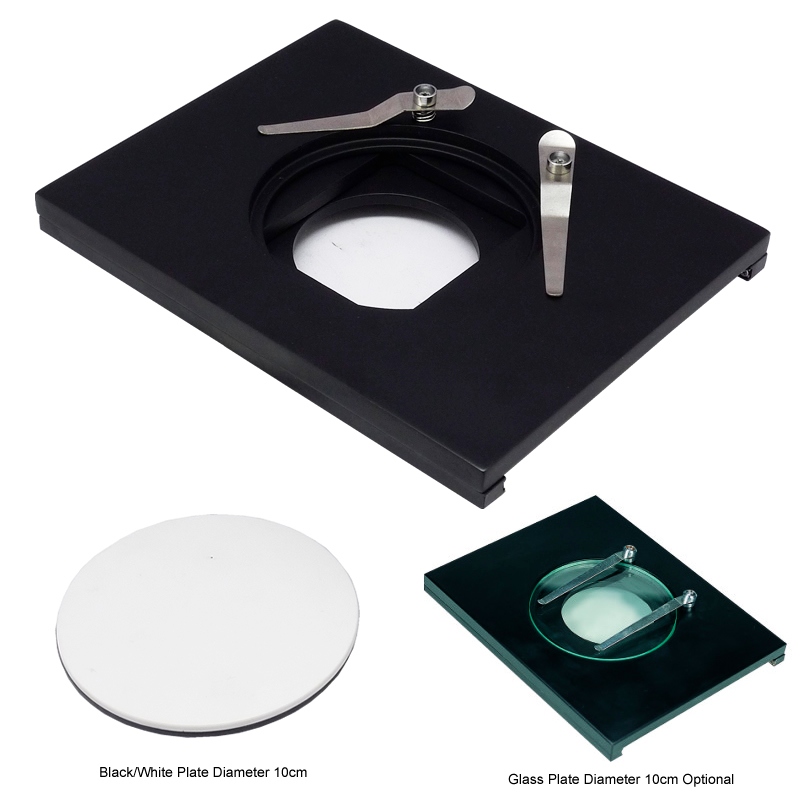

| Movable Working Stage | YR0248-op7 | |||
| StandClick to See | Universal Table Stand | YR0248-op8 | ||
| YR0248-op9 | ||||
| Track Stand, Transmit & Reflect Light Source | YR0248-op10 | |||
| With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F | YR0248-op11 | |||
| YR0248-op12 | ||||
| YR0248-op13 | ||||
| YR0248-op14 | ||||

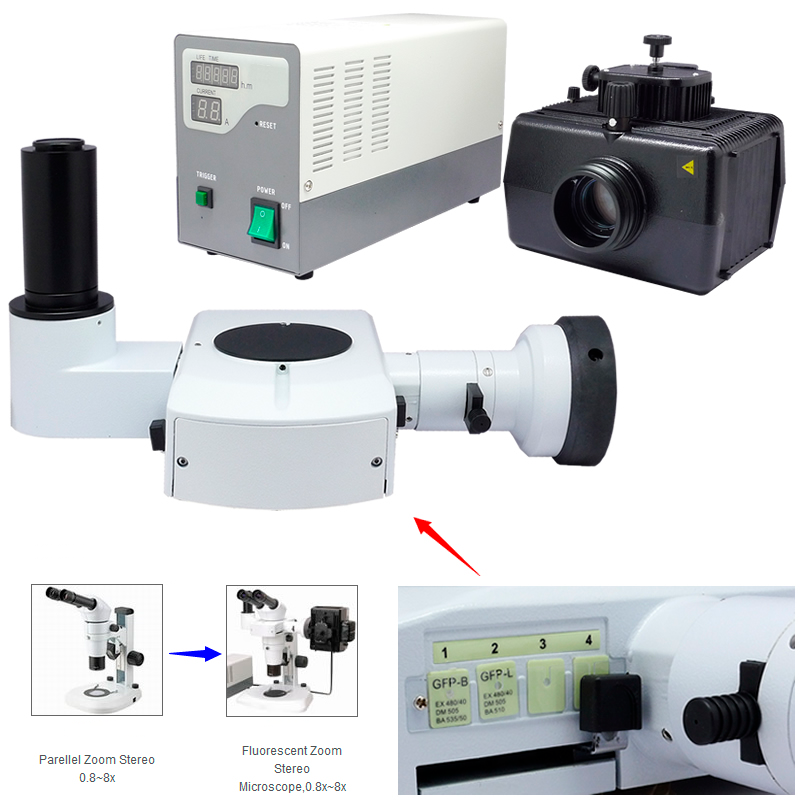

| Fluorescent | EPI-Fluorescent Attachment For Stereo Microscope | YR0248-op15 | ||
| Dark Field | Dark Field Attachment For Stereo Microscope | YR0248-op16 | ||
| Polarizing | Simple Polarizing Attachment For Stereo Microscope | YR0248-op17 | ||
| LCD Monitor | 8.4"TFT Touch Screen LCD Monitor & Connector | YR0248-op18 | ||

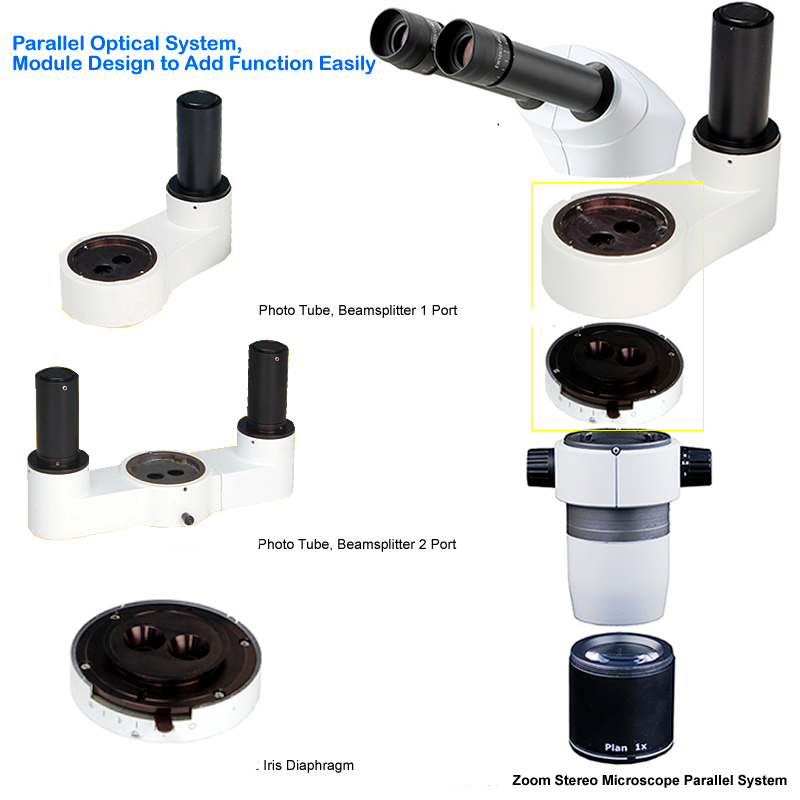

| Adapter | Photo Tube, Beamsplitter 1 Port | YR0248-op19 | ||
| Photo Tube, Beamsplitter 2 Port | YR0248-op20 | |||
| Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera | YR0248-op21 | |||
| C-mount 0.5x | YR0248-op22 | |||
| C-mount 1.0x | YR0248-op23 | |||
Technical specifications
| Dimensions | L 36.6 × W 31.1 × H 65.3 cm |
|---|---|
| Weight | 9.5 kg |
| Manufacturer | Kalstein |
