Surgical Navigation Systems YR02143

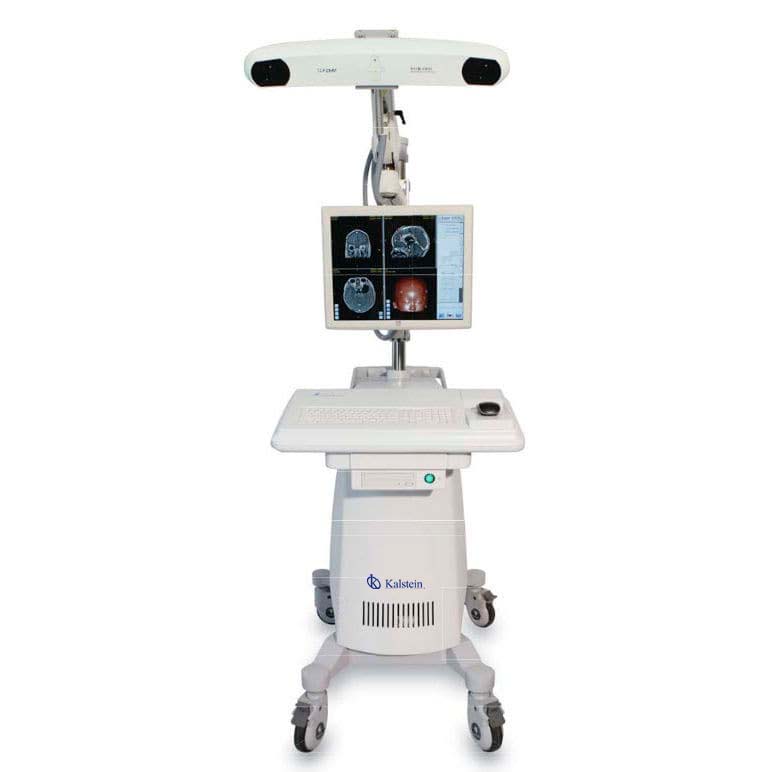

The Surgical Navigation Systems YR02143 stands out as a cutting-edge innovation in the field of medical technology. This computer-aided electromagnetic surgical navigation system enhances surgical visualization, planning, and navigation, significantly reducing iatrogenic trauma to surrounding brain tissue during cranial procedures, such as in cranial neurology and ENT surgery. It adeptly utilizes tomographic images in DICOM format captured via CT, C-arm, MRI, and fMRI for precise navigation. With an advanced optical tracking system, it enables real-time 3D tracking, ensuring precision with a spatial resolution of 1.0mm. An integrated navigation probe and optical measurement technology facilitate scientific surgical planning by quantifying lesion size and position. The system also features four navigation modes, an intelligent software for anatomical calibration, and multiple operational methods via a surgeon mouse or touch monitor, ensuring uninterrupted navigation even during power outages.

Market Price

The market price for surgical navigation systems like the YR02143 can vary significantly depending on specifications and additional features. Typically, these advanced systems range from $100,000 to $500,000. For precise pricing tailored to your organizational needs, we encourage you to request a quote through our convenient online platform, Kalstein Plus.

Frequently Asked Questions

How accurate is the YR02143 system? The YR02143 offers exceptional precision with a spatial resolution of 1.0mm, making it highly reliable for intricate surgical procedures. What imaging formats does the system support? The system supports tomographic images in DICOM format captured with CT, C-arm, MRI, and fMRI. Is the system compatible with all ENT and neurological surgeries? Yes, the YR02143 is versatile and can be used for all ENT and neurological surgeries, especially for deep intracranial and minimally invasive procedures.

Advantages and Disadvantages

The YR02143 offers several advantages, including unparalleled precision, real-time 3D tracking, and compatibility with various imaging modalities. Its intelligent software assists with unexpected anatomical changes, enhancing surgical outcomes. However, the primary consideration is the cost, as high-end navigation systems represent a significant investment for medical facilities.

Product Use in the Field

In real-world scenarios, the YR02143 surgical navigation system is invaluable during complex cranial surgeries. Surgeons can visualize the surgical target area in real-time, define surgical approaches with precision, and adjust plans based on intraoperative findings. The system's ability to recalibrate with anatomical changes ensures optimal surgical outcomes and minimizes risks of complications.

Recommendations

For optimal use of the YR02143, it's recommended to undergo specialized training provided by Kalstein. Regularly updating the software ensures you have the latest functionalities and improvements. Additionally, routine maintenance checks by certified technicians will help extend the lifespan of the system.

Features

• Supports DICOM images from CT, C-arm, MRI, and fMRI
• Advanced optical tracking with 1.0mm spatial resolution
• Four navigation modes for comprehensive monitoring
• Intelligent software for anatomical calibration
• Operable via surgeon mouse or touch monitor
• Automatic data saving feature

Technical Specifications

Model	YR02143
Component	Amount		Description
Optical tracking system
NDI tracking system	1 set		Track 3D position and orientation of active or passive markers attached to surgical tools
Image management workstation
Computer system	1 set		For 2D image fusion and 3D reconstruction, navigation system
Touch monitor	1 piece		19 *, 1280 x 1024 resolution, medical and healthcare grade
Software package	1 set		Core set (image fusion, surgical planning and navigation, data management)
Software version 1	1 piece		Diffusion-tensor-images navigation module
Software version 2	1 piece		Needle-Aspiration-Biospy navigation module
Mobile car
Support trolley with 4 wheels	1 piece		To support the optical tracking system and image management workstation
Surgical tools
Navigation probe	2 pieces		To help the optical measurement system track movement
Microscope probe	1 piece		To help the optical measurement system track movement
Active marker	6 pieces		To help quickly recognize critical anatomical structures.
Passive reflective sphere	10 pieces		To reflect the infrared laser for cameras (in the optical tracking system) to capture
Framework	2 pieces		To locate passive reflective sphere with 4 pins
Articulated arm	1 piece		To hold the frame of reference
Clamp adapter	2 pieces		For the adaptation of another instrument (such as the brain needle during navigation)
Foot-swicht	1 piece		To help register and navigate
Touchmonitor specification
Case / bezel color	Beige	Mini VGA D-sub 15-pin; DVI-D	Mini VGA D-sub 15-pin; DVI-D
Display	Sixe: 19.0 ”diagonal, active matrix TFT	Horizontal: 31.5-80 kHz	Horizontal: 31.5-80 kHz
	Aspect ratio: 5; 4	Vertical: 56.3-75 Hz	Vertical: 56.3-75 Hz
Useful display area	Horizontal: 14.82 "(376.32 mm)	Type: 100-240 VAC, 50-60 Hz	Type: 100-240 VAC, 50-60 Hz
	Vertical: 11.85 "(301.06 mm)	Internal DC input power supply	Internal DC input power supply
Monitor dimensions	Width: 429mm (16.9 ")	DC input voltage (line): 12V 3.6V	DC input voltage (line): 12V 3.6V
	Height (including stand): 15.21 "(386 mm)	48 W max.	48 W max.
	Depth (inc. Base)	Operating; 0 ° C to 40 ° C	Operating; 0 ° C to 40 ° C
Native resolution (optional)	1280 x 1024 @ 60/70/75 Hz	Storage: -20 ° C to 60 ° C	Storage: -20 ° C to 60 ° C
Other supported resolutions	1280 x 960 / 1,024 x 768 in Hz	Operating: 20% -80%	Operating: 20% -80%
Colors	16.7 million	Storage: 10% -90%	Storage: 10% -90%
Brightness	LCD panel: 300 cd / m2	Actual: 17.66 lbs. (8 kg)	Actual: 17.66 lbs. (8 kg)
	With AccuTouch: 246 cd / m2	Shipping: 25.10 lbs (11.84)	Shipping: 25.10 lbs (11.84)
	With IntellTouch: 276 cd / m2	3 years	3 years
Response time	20 msec (typical)	Typical 40,000 hours at half brightness	Typical 40,000 hours at half brightness
Vision angle	Horizontal (left / right): 89 ° / 89 °	MTBF; 50,000 hours demonstrated	MTBF; 50,000 hours demonstrated
(Typical, from the center)	Vertical (up / down): 89 ° / 89 °	UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark	UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark
Contrast ratio	1300: 1 (typical)	Two watt / channel speakers located in the display head	Two watt / channel speakers located in the display head
Input video format	Analog: (no video card needed)	OSD locks for user and power controls	OSD locks for user and power controls
Input sync format	Separate horizontal and vertical	OSD extras include volume, treble, bass, balance	OSD extras include volume, treble, bass, balance
	Synchronization, compound synchronization and	OSD Language (English, Chinese, Spanish, French)	OSD Language (English, Chinese, Spanish, French)
	Synchronization in green	Safety lock receptacle	Safety lock receptacle
