Description

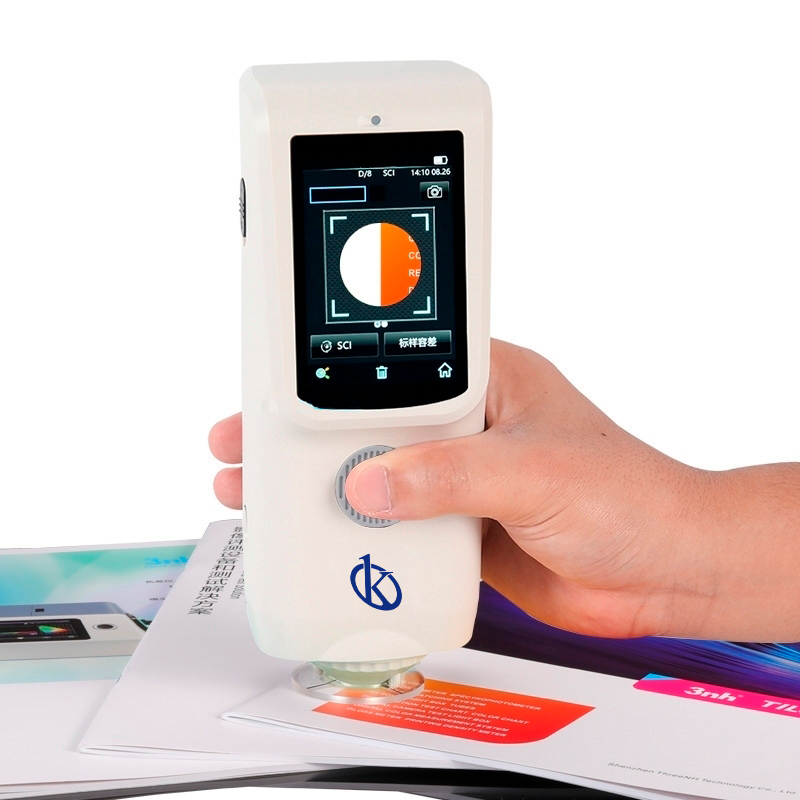

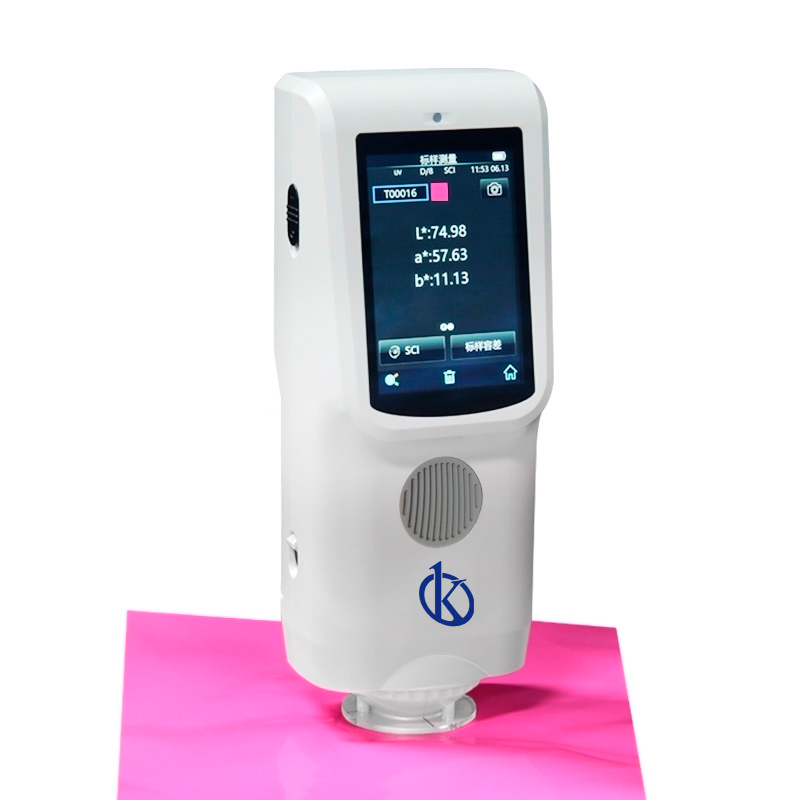

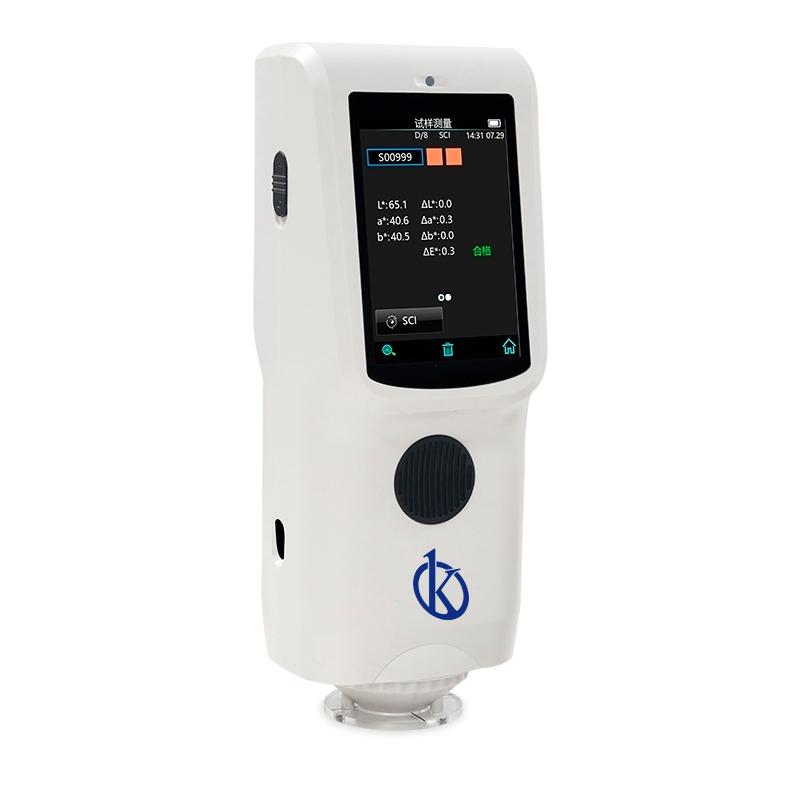

The Spectrocolorimeter YR05516 – YR05517 is an advanced portable color difference measurement instrument developed by Kalstein, incorporating cutting-edge technology to ensure high precision. With its built-in silicon photodiode array consisting of 24 sensors, this device guarantees accurate ΔE measurements, while also maintaining long-term precision for absolute L, A, and B values. This powerful spectrocolorimeter is designed for convenient use in various industries such as plastics, electronics, paint, and textiles, allowing for high-speed, computer-independent color difference analysis.
Market Price
The spectrocolorimeter market offers a range of models to suit various industry needs. Typically, advanced devices like the Spectrocolorimeter YR05516 – YR05517 are priced between $4120 and $4900. These tools deliver exceptional accuracy and efficiency, providing excellent value within this investment range.
Frequently Asked Questions
Q: Does the Spectrocolorimeter require additional software for operation?
A: No, the Spectrocolorimeter can perform measurements and analyses without needing any external software or computer connection.
Q: Can this device be used for quality control in textile industries?
A: Yes, the Spectrocolorimeter YR05516 – YR05517 is well-suited for applications in textile and garment printing, dyeing, and other similar industries.
Advantages and Disadvantages
The main advantages of the Spectrocolorimeter YR05516 – YR05517 include its high measurement precision, long battery life of up to 6,000 measurements within 8 hours, and versatile data storage capabilities. However, potential buyers should note that while it offers extensive features, the price point may be higher than simpler devices.
Field Application
In practical use, the Spectrocolorimeter YR05516 – YR05517 excels in rapidly determining color differences within industrial settings. Its 8 mm diameter measurement capability is ideal for industries like ceramics, plastics, and textiles, ensuring that products meet desired quality standards through accurate color assessments.
Recommendations

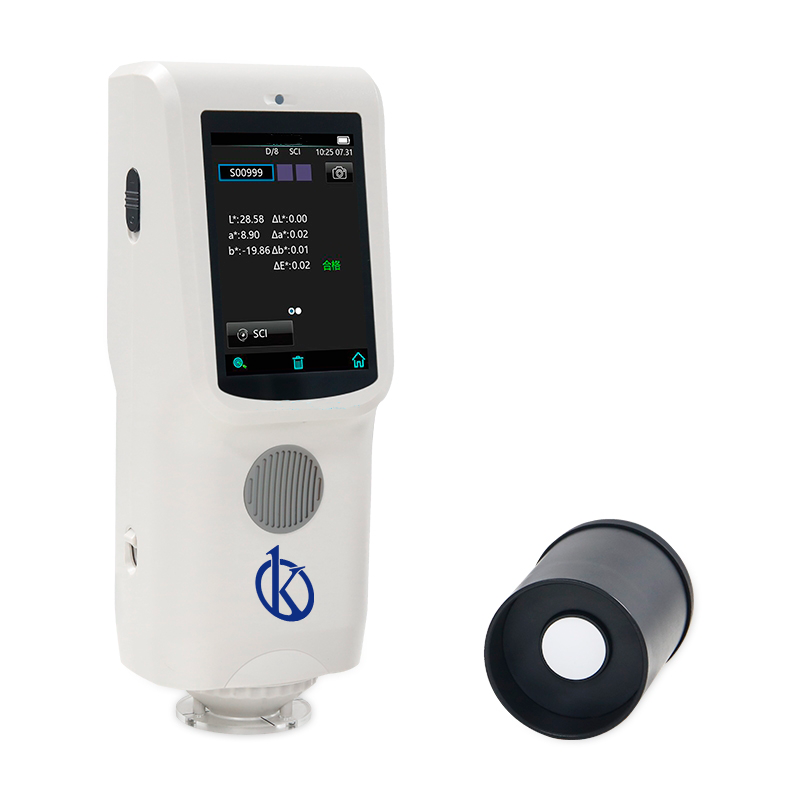

To maximize the utility of the Spectrocolorimeter YR05516 – YR05517, regular calibration using the provided white and black calibration cavity is recommended. Additionally, ensuring that the device is fully charged before extensive use will optimize its performance. For best results, utilize Kalstein Plus for automatic quote generation to efficiently manage your procurement needs.
Features
- 8 mm diameter measurement with an observer angle of 10°.
- Combines full-spectrum LED light source and capacitive touch screen.
- Equipped with a silicon photodiode array for high precision.
- Capable of storing up to 500 data sets and 10,000 samples for quick analysis.
- Operates without needing a computer or software connection.
Technical Specifications
| Model | YR05516 | YR05517 |
| Optical Geometry | D/8(diffused illumination, | D/8(diffused illumination, |
| 8-degree viewing angle) | 8-degree viewing angle) | |
| SCI/SCE Mode | SCI/SCE Mode | |
| Comply to CIE No.15，GB/T | Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| 3978,GB 2893,GB/T | ||
| 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | ||
| Characteristic | double apertures, more adaptability; Used for accurate | single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| color measurement and quality control in plastic electronics, | ||
| paint and ink, textile and garment printing and dyeing, printing, | ||
| ceramics and other industries | ||
| Integrating Sphere Size | Φ40mm | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating | Flat Grating |
| Senso | Silicon photodiode array (double row 32 groups) | Silicon photodiode array (double row 32 groups) |
| Wavelength Range | 400～700nm | 400～700nm |
| Wavelength Interval | 10nm | 10nm |
| Semiband Width | 10nm | 10nm |
| Measured Reflectance Range | L:0~120; reflectivity:0~200% | L:0~120; reflectivity:0~200% |
| Measuring Aperture | Dual Apertures：MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm | Single Apertures：Φ8mm/Φ10mm |
| Specular Component | SCI/SCE | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN | CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2) |
| Lab99 Munsell(C/2) | ||
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),
ΔE*cmc(1:1),ΔE*00, DINΔE99 |
ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925,ASTM 313), | YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, | Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search | |
| Opacity,Color Card Search | ||
| Observer Angle | 2°/10° | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),
F3,F4,F5,F6,F7(DLF), |
D65,A,C,D50,F2(CWF),
F7(DLF),F10 |
| F8,F9,F10(TPL5),F11(TL84),
F12(TL83/U30) |
(TPL5),F11(TL84),F12
(TL83/U30) |
|
| Displayed Data | Spectrogram/Values, Samples
Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
Spectrogram/Values, Samples
Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy | 0.01 | 0.01 |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.3 | MAV/SCI, Within ΔE*ab 0.3 |
| (Average for 12 BCRA Series II color tiles) | (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average
Measurement(2-99times) |
Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=81X71X214mm | L*W*H=81X71X214mm |
| Weight | About 460g | About 460g |
| Battery | Li-ion battery, 6000 measurements
within 8 |
Li-ion battery, 6000 measurements within 8 hours |
| hours | ||
| Illuminant Life Span | 5 years, more than 3 million times | 5 years, more than 3 million times measurements |
| measurements | ||
| Display | 3.5-inch TFT color LCD, Capacitive Touch S | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| creen | ||

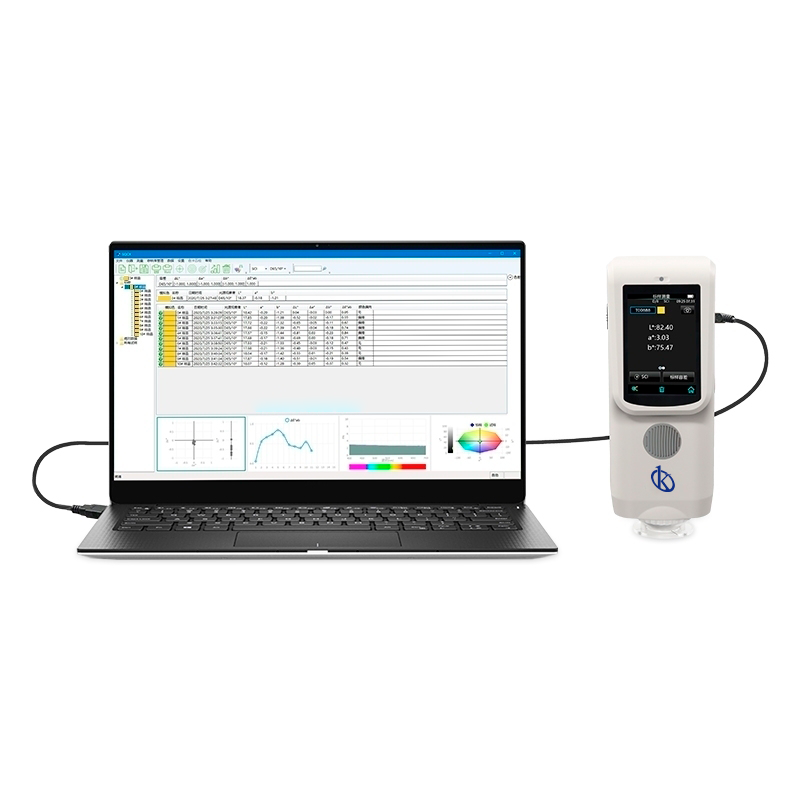

| Data Port | USB,Bluetooth 5.0 | USB |
| Data Storage | Standard 1000 Pcs, Sample 30000
Pcs(One |
Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE) |
| data is able to include SCI/SCE) | ||
| Language | Simplified Chinese, English, Traditional Chinese | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| < 2000m | ||
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | -20~50℃, 0~85%RH (no condensing) |

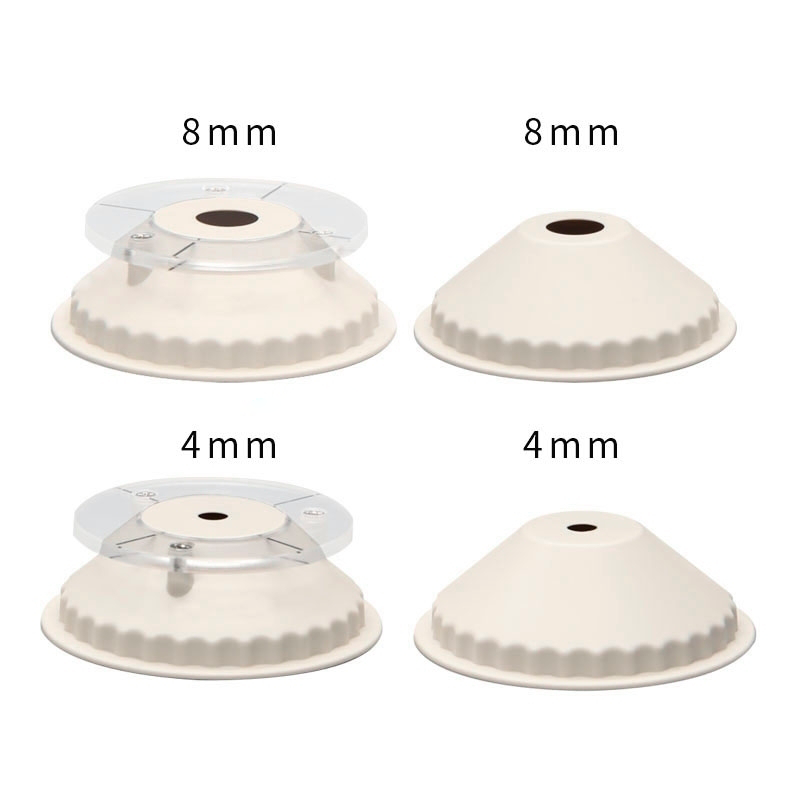

| Standard Accessory | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture |
| Optional Accessory | USB Micro Printer, Powder Test
Box,Bluetooth Micro Printer |
USB Micro Printer, Powder Test Box, |
| Notes | Technical parameters are only for
reference, subject to the actual sale of the product |
Technical parameters are
only for reference, subject to the actual sale of the product |
