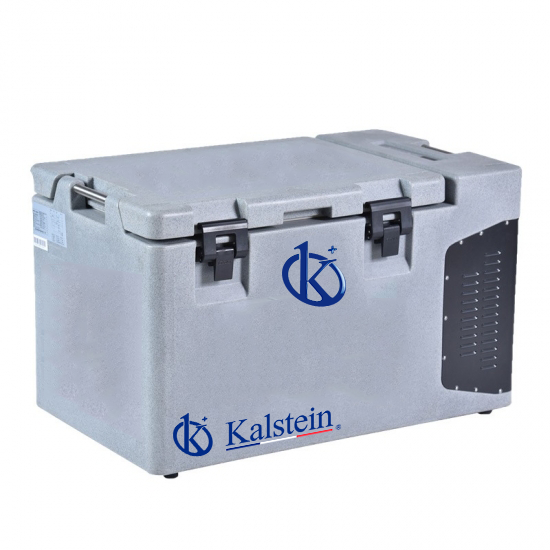

Multipurpose Medical Transporter YR06025 – YR06026

ManufacturerKalstein

Description

The YR06025 – YR06026 Multipurpose Medical Transporter is an advanced solution for securely transporting temperature-sensitive biological and chemical products. With an adjustable temperature range of 2°C to 8°C and -25°C, this transporter is perfect for maintaining optimal conditions for vaccines, blood, enzymes, hormones, and more. Constructed with military-grade materials, it offers durability and resistance to harsh conditions, while its microprocessor-controlled temperature system ensures precise temperature management with a high level of accuracy. Equipped with alarms for various conditions and AC/DC power options, it provides up to 8 hours of backup power, making it reliable for diverse environments.

Market Price

Positioned in the mid-high price range, the average market price for the YR06025 – YR06026 ranges from $1,600 to $2,400 USD. This investment is justified by its advanced features and unmatched reliability, making it an excellent choice for hospitals, laboratories, and research institutes that require precise conditions during transport. For more detailed pricing or to receive a customized quote, visit our Kalstein Plus platform.

Frequently Asked Questions

  • Is it suitable for extreme climate conditions?
    Yes, the YR06025 – YR06026 is equipped with an automatic switching cooling and heating system, making it ideal for extreme climates.
  • Can it connect to a remote monitoring system?
    Yes, it can be integrated with remote monitoring systems, allowing for continuous supervision with a data recorder.
  • How long does it maintain the temperature without power?
    It offers up to 8 hours of backup power, ensuring product safety during extended periods of power failure.

Advantages and Disadvantages

Advantages:

  • Customizable temperature range from 2°C to 8°C and -25°C.
  • Durable military-grade material construction.
  • Multiple alarms for added security.
  • Portable with AC/DC options.

Disadvantages:

  • Higher price point for budget-restricted organizations.
  • Regular maintenance is required for optimal performance.

Product Use in the Field

The YR06025 – YR06026 is primarily used in medical and research fields, including hospitals and laboratories, for transporting critical biological samples like vaccines and blood. It ensures consistent temperature maintenance, safeguarding the integrity of its contents throughout transportation.

Recommendations

Regular preventive maintenance is recommended to ensure the cooling systems and alarms are in optimal condition. It’s important to securely fasten the equipment during transport and validate power connections to maximize the product’s lifespan and efficiency.

Features

  • Adjustable temperature range for varied storage needs.
  • Military-grade construction for enhanced durability.
  • Advanced microprocessor-controlled temperature system.
  • Multiple safety alarms for temperature, power, and sensor issues.
  • Backup power support for added reliability.

Technical Specifications

Model YR06025 YR06026
Performance
Cooling method Forced Air Cooling
Defrost Manual
Basket Basket around Evaporator
Temperature range -10°C~-25°C/2~8°C
Ambient temperature 10~32°C
Refrigeration system
Refrigerant R134a
Temp. controller Microprocessor
Sensor NTC
Display Digital display
External material PE
Alarms
High low temperature Yes
Power failure Yes
Sensor error Yes
Controller failure Yes
Power failure backup 8 hours
Electrical Data
Voltage frequency( V/Hz) AC 110V 220V/DC 12V 24V
Power (W) 80W 100W
Current (A) DC 6.5A DC 8A
Power consumption 1.2kWh/24h 1.6kWh/24h
Dimensions
Capacity (L/cu.ft) 30/1.06 80/2.83
Exterior size(W*D*H)(mm) 615*370*471.5 937*565*580.5
Interior size(W*D*H)(mm) 364*253*352.5 547*378*369.5
Other
Data logger Optional
Insulation PURF
Noise (db) 45 46

Additional information

Weight N/A
Dimensions N/A
Model

YR06025, YR06026
