Description

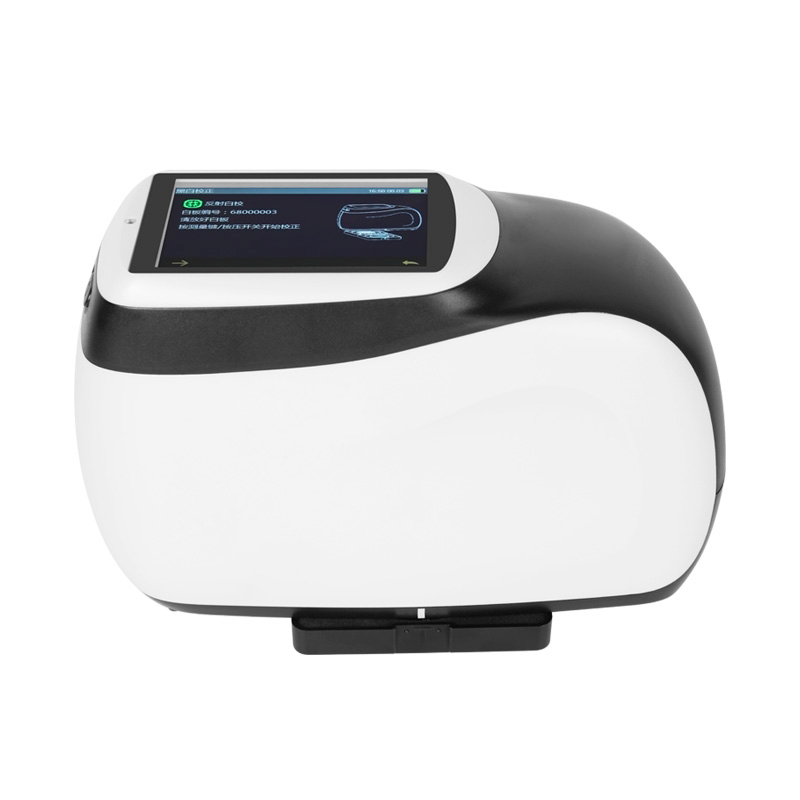

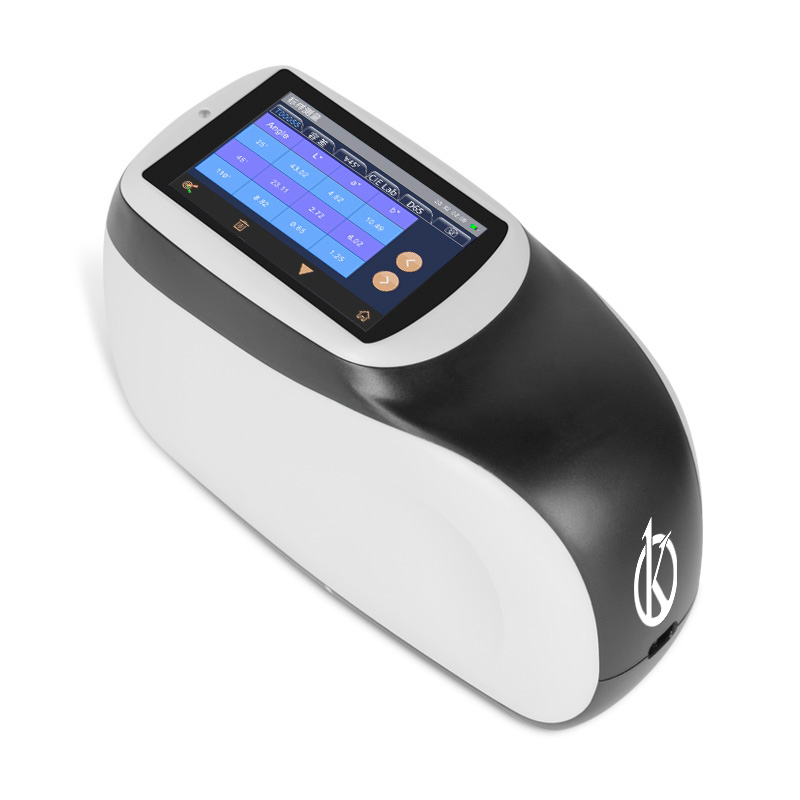

The Multi-Angle Spectrophotometer with 3 Angles YR05488 // YR05489 from Kalstein is a cutting-edge instrument engineered for precise color measurement in products with special finishes, such as metallic and pearlescent effects. Ideal for sectors like automotive, cosmetics, and plastics, this spectrophotometer offers tri-angle measurement (25°, 45°, and 110°) to capture chromatic variations impeccably under diverse viewing conditions. Equipped with advanced optical technology, including a dual-array 256-element CMOS sensor and a full-spectrum LED light source with enhanced blue, it ensures high precision and stability even on curved surfaces. Its user-friendly touchscreen and concave grating technology optimize data display and analysis, complying with international standards like ASTM, ISO, and DIN.
Market Price
The Multi-Angle Spectrophotometer YR05488 // YR05489 is competitively positioned in the market, with prices typically falling between $13,500 and $14,000 USD. This spectrophotometer represents a strategic investment for companies striving to enhance precision in color control across industrial processes. For a customized offer or to generate one promptly and automatically, you can utilize the Kalstein Plus platform, ensuring a fast and reliable purchasing experience.
Frequently Asked Questions
- What industries benefit from the YR05488 // YR05489?
This spectrophotometer is essential for the automotive, cosmetics, and plastics industries, especially where precision in metallic and pearlescent finishes is crucial. - Can it connect to a PC?
Yes, it comes with color management software for PC, facilitating thorough analysis and comprehensive color data management. - How much data can it store?
The device has a substantial storage capacity, allowing for up to 1,000 standards and 4,000 samples, perfect for detailed records.
Advantages and Disadvantages
The YR05488 // YR05489 is renowned for its remarkable precision, with a ΔE*ab standard deviation of 0.04, and its ability to measure chromatic variations from multiple angles. Additionally, its USB and Bluetooth 5.0 connectivity ensures swift and secure data transfer. On the downside, its focus on complex finishes might limit its use for more general color analysis tasks.
Field Applications

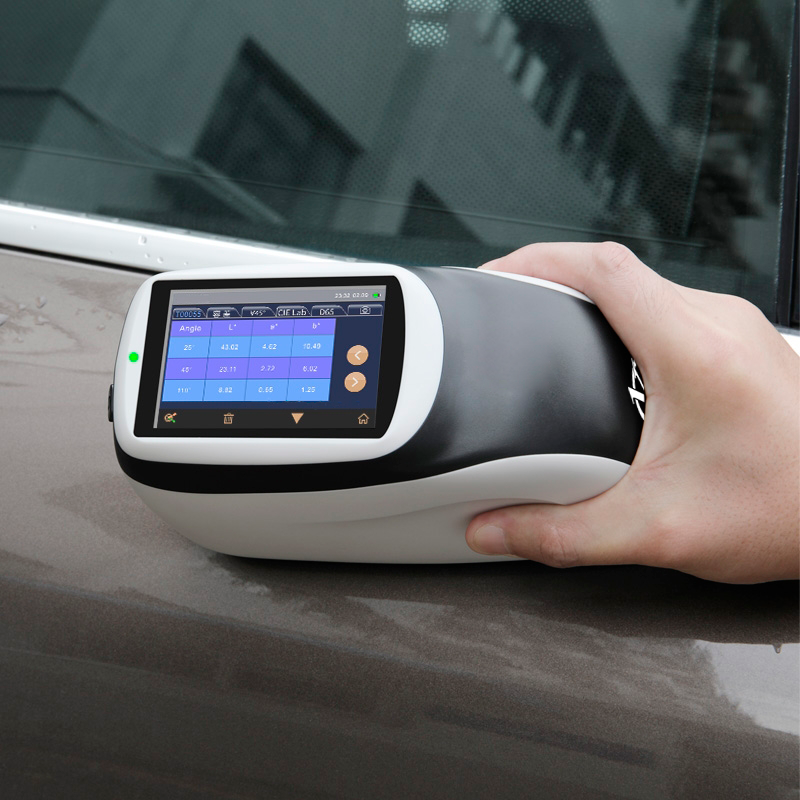

In practical settings, the spectrophotometer excels in quality control for products in the automotive, cosmetics, and plastics industries, where high precision in visual finishes is paramount. Its multi-angle capacity and camera preview allow for precise positioning of the measured area, improving efficiency in both laboratory and production line environments. The ergonomic design and 3.5-inch touchscreen enhance usability in industrial contexts.
Recommendations
For maintaining optimal performance, regular equipment calibrations are advised, and it should be stored in a clean, dust-free environment. Its lithium-ion battery supports up to 6,000 measurements within 8 hours of full charge, so it’s crucial to recharge it regularly. Request a customized quote or quickly generate one on Kalstein Plus, and discover how the Multi-Angle Spectrophotometer YR05488 // YR05489 can enhance color control in your industry, boosting precision and efficiency in each production process.
Features
- Multi-angle measurement at 25°, 45°, and 110°.
- Advanced CMOS sensor with dual-array 256 elements.
- Full-spectrum LED light source with blue enhancement.
- Intuitive touchscreen with concave grating technology.
- USB and Bluetooth 5.0 connectivity for data transfer.
- Extensive data storage capacity.
Technical Specifications
| Model |
YR05488
|
| Measurement Geometry |
3 measurement angles (3 illumination sources, 1 receivers)
|
|
Measure Angle
|
45° Receiver：
|
|
45as25°,45as45°,45as110°
|
|
|
Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
|
|
| Application |
Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
|
| Light Source |
Full spectrum LED light source with blue enhancement
|
| Lamp Life |
5 years, 3 million times measurements
|
| Spectrophotometric Mode |
Concave Grating
|
| Sensor |
256 Image Element Double Array CMOS Image Sensor
|
| Wavelength Range |
400nm-700nm
|
| Wavelength Interval | 10nm |
| Measurement Range | 0~600% |
| Semiband Width | 10nm |
| Measuring Aperture | Φ12mm |
| Color Space |
CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
|
| Color Difference Formula |
ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
|
| Other Colorimetric Index |
Flop Index
|
| Observer Angle | 2°/10° |
| Illuminant |
D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
|
| Display |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
|
|
Measuring Time
|
Approx. 1 second for one angle
|
|
Approx. 3 seconds for all angles
|
|
|
Repeatability
|
Spectral reflectance: Standard deviation within 0.08%
|
|
Chromaticity value: ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
|
|
|
Reproducibility
|
ΔE*<0.10,avg on the gray tile of BCRA tile set
|
|
ΔE*<0.25,avg on the color BCRA tile set
|
|
| Inter-instrument Error |
0.2ΔE*00(avg on reference Series II BCRA tile set)
|
| Effect Parameters | / |
| Effect Measurement | / |
| Effect Repeatability | / |
| Effect Reproducibility | / |
| Trigger mode |
Pressure sensing trigger, button trigger, software trigger
|
| Measuring Mode |
Single measurement, average measurement (1-99),continuous measurement (1-99)
|
| Locating Mode |
Color camera preview
|
| Dimension |
L*W*H=195X83X128mm
|
| Weight |
About 1Kg
|
| Power |
lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge
|
| Display |
3.5-inch TFT color LCD, Capacitive Touch Screen
|
| Interface | USB |
| Data Storage |
1000 pcs Standards,4000 pcs Samples
|
| Language |
Simplified Chinese, Traditional Chinese, English
|
| Operating Environment |
10℃ to 50℃, humidity does not exceed 85%, no condensation
|
| Storage Environment |
-20℃ to 50℃, humidity does not exceed 85%, no condensation
|
| Calibration |
Built-in white board parameters, external white board, black light trap
|
| Calibration Interval |
4 hours,8 hours,24 hours,Startup calibration
|

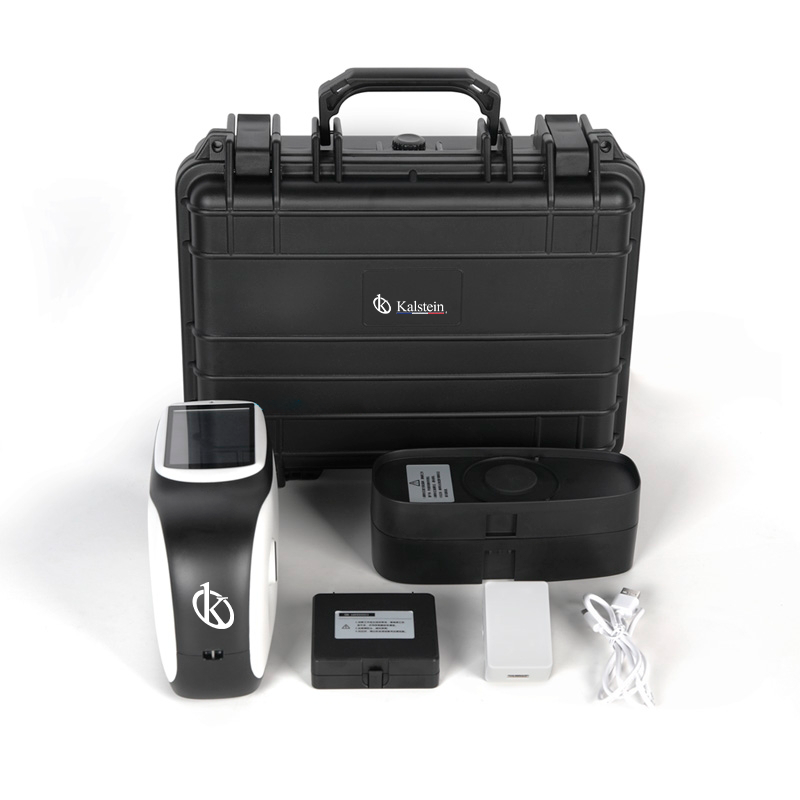

| Standard accessories |
Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
|
| Optional Accessory |
Micro-printer
|
| Notes |
Technical parameters are for reference only, subject to actual sales products.
|
