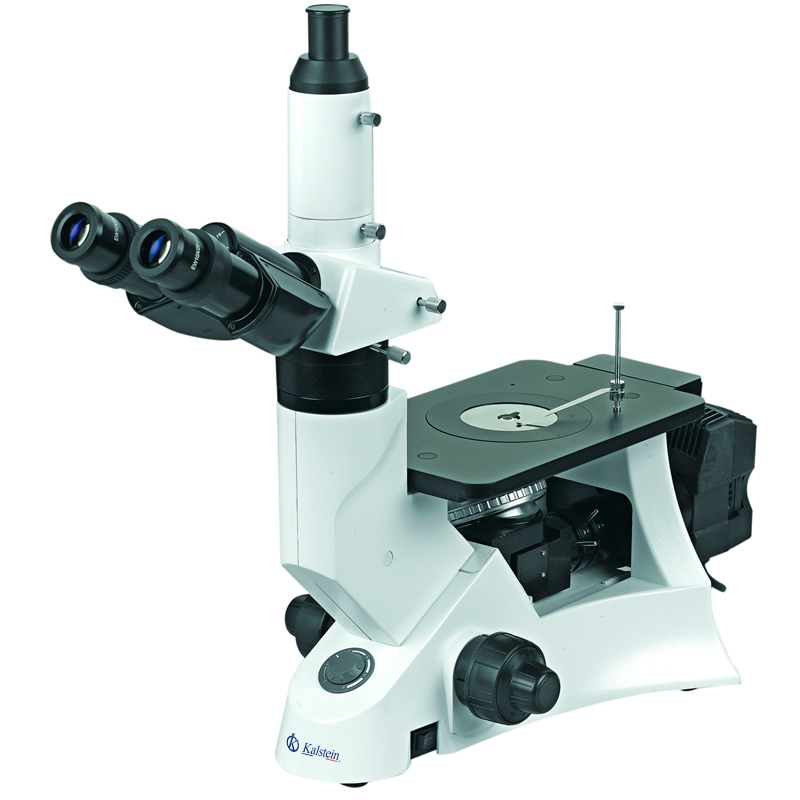

Inverted Metallurgical Microscope YR0258
Inverted Metallurgical Microscope YR0258 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Inverted Metallurgical Microscope YR0258 offers unparalleled precision and clarity for metallurgical studies. With its infinity optical system that guarantees superior image quality and a robust design built for durability, this microscope is a staple in laboratories and research institutes aiming to investigate the microstructure of metals and other materials. Its advanced stage design and Seidentopf Trinocular Head ensure comfortable and versatile use, making it a premier choice for professionals in the field.
Market Price
Inverted metallurgical microscopes generally range from $2,500 to $3,300 USD on the market, positioning the YR0258 as a cost-effective solution given its advanced features. Prices vary based on specific configurations and included accessories. For the best deal, consider generating a quotation through our Kalstein Plus platform.
Frequently Asked Questions
- What is the light source used in the YR0258 microscope?
The microscope uses an external Kohler illumination system with a 6V 30W halogen lamp, which is brightness adjustable for optimal clarity.
- Can this microscope be used for non-metallic materials?
Yes, the YR0258 is designed to identify the microstructures of various materials, not just metals.
Advantages and Disadvantages
The YR0258's advantages include its high optical image quality due to the infinity optical system, ergonomic design, and robust construction suitable for professional environments. A potential disadvantage is that it may require additional training for users unfamiliar with advanced microscopy equipment.
Product Use in the Field
Professionals use the YR0258 in various scenarios, including analyzing microstructures for industrial quality control and academic research. Its flexibility and precision make it suitable for demanding applications in metallurgy and materials science.
Recommendations
To maximize the YR0258's performance, regularly calibrate the focusing mechanism and clean optical components using appropriate materials. Consider acquiring optional accessories like the attachable mechanical stage for expanded functionality. Explore Kalstein Plus for accessory availability and pricing.
Features
- Infinity Optical System for superior image quality
- Comfortable and adjustable Seidentopf Trinocular Head
- External Kohler Illumination with adjustable halogen lamp
- Durable and stable structure suitable for professional settings
Technical Specifications
| Model | YR0258 | ||
| Optical System | Infinity Optical System | ||

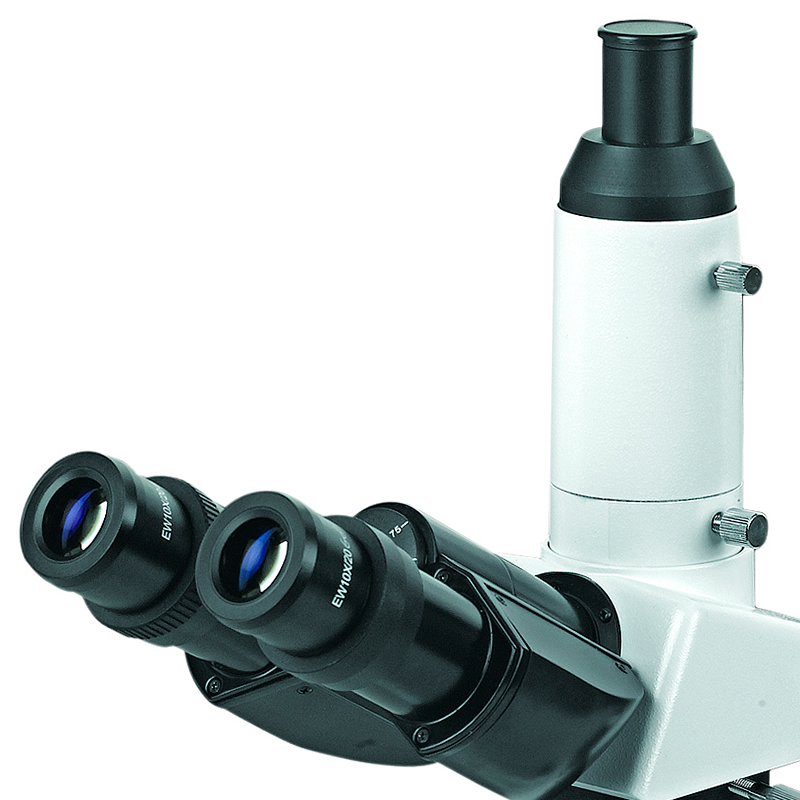

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | ||
| Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, High Eyepoint | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan MetallurgicalCoverless Achromatic Objective | 4x/0.1/∞/-, W.D.17.3mm | |
| 10x/0.25/∞/-,W.D.10.2mm | |||
| 20x/0.4/∞/-,W.D.5.1mm | |||
| 40x/0.65/∞/-, W.D.0.52mm | |||

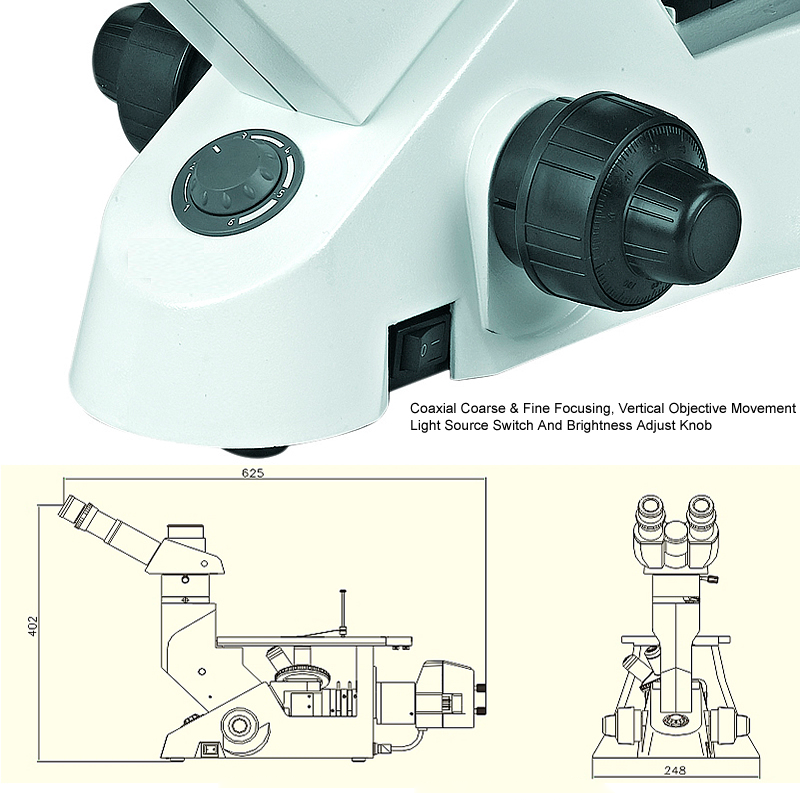

| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation | ||

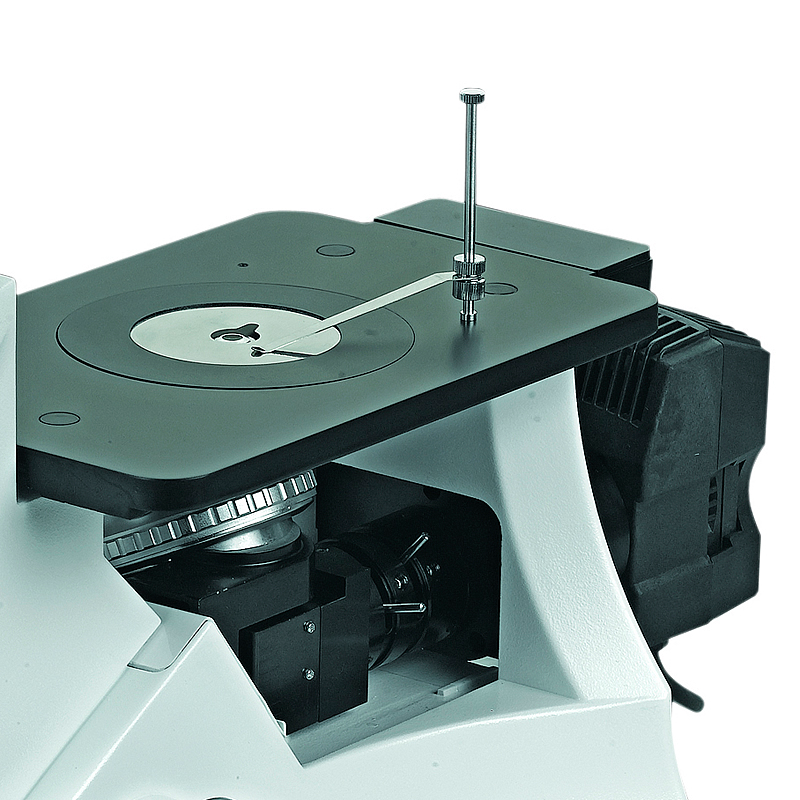

| Working Stage | Plain Stage 160*250mm With Slide Clips | ||
| Polarizing | Polarizing Attachment | ||
| Filter | Green, Blue, Yellow, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Optional Accessories | |||
| Objective | Infinity Plan MetallurgicalCoverless Achromatic Objective | 5x/0.12/∞/-, W.D.15.4mm | YR0258-op1 |
| 50x/0.75/∞/-, W.D.0.32mm | YR0258-op2 | ||
| 80x/0.9/∞/-, W.D.0.20mm | YR0258-op3 | ||
| 100x/0.9/∞/0, W.D.0.7mm | YR0258-op4 | ||
| Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0258-op5 | |
| Auxiliary Stage 70*180mm | YR0258-op6 | ||
| Adapter | Photo Adapter | YR0258-op7 | |
| C-Mount 1.0x | YR0258-op8 | ||
| C-Mount 0.5x | YR0258-op9 | ||
Technical specifications
| Dimensions | L 46.8 × W 39.7 × H 66.5 cm |
|---|---|
| Weight | 15 kg |
| Manufacturer | Kalstein |
