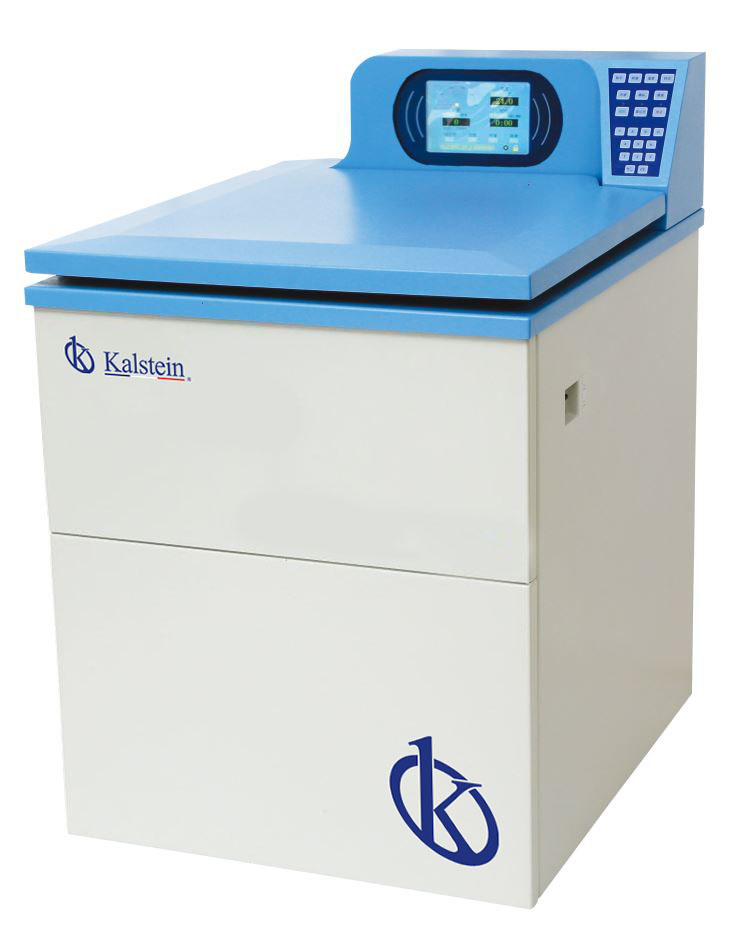

High-speed refrigerated centrifuge YR0111-3

Manufacturer: Kalstein



Description

The centrifugal tubes for high-speed centrifuges are typically manufactured from plastic and polypropylene, polyethylene, polycarbonate or boosrylicate glass, borosilicate plastic and the like. In practice, several centrifugal tubes can be selected according to different requirements. When a substance precipitates in a medium, it is accompanied by a diffusion phenomenon. The diffusion is unconditional and absolute. The lower the particle size of the substance, the greater the range of diffusion. Sedimentation is subject to external force. The interview is conditional and the mass of the object is greater. The faster the sedimentation speed, the high-speed refrigerated centrifuge is available because some of the particles are too small to see the sedimentation process.

Technical presentation
  • The maximum speed is 22000 rpm and the maximum RCF is 52000 g.
  • It has microcomputer control, electronic lock and AC variable conversion engine that delivers a high torque.
  • Imported compressor unit with refrigerant without CFC. It is up to the environmental standards.
  • The machine is programmable. The data of the operation can be stored automatically.
  • The LCD or LED screen and the Touch Panel facilitate the operation.
  • Real-time Speed ​​and RCF conversation is suitable for operation.
  • It has a self-locking device, speed speed safety device, excess temperature safety device, imbalance safety device and automatic alarm device.
  • It has 10 acceleration and deceleration level files for your choice.
  • Silastic sealed ring comfort according to GMP. Certified by the US FDA UU
Model YR0111-3
Maximum speed 22,000r/min
Maximum RCF 52,000 xg
Maximum capacity 500ml x 6
Accuracy Speed ​​Control ±50r/min
Temperature range -20 ~ +40°C
Temperature Accuracy ±1°C
Compressor Unit French Tecumseh Compressor Unit, R404a
Noise <65db(A)
Power supply 110V/60Hz, 220V/50Hz
Dimension (L x W x H) 710 x 840 x 1140mm
Net weight 280kg



Additional information

Weight 280 kg
Dimensions 89 × 96 × 140 cm
Modelo

(YR0111-3-1) Pantalla LED, (YR0111-3) Pantalla LCD
