Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839

Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

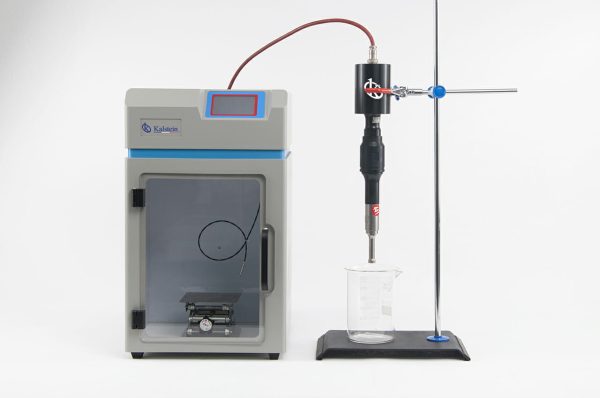

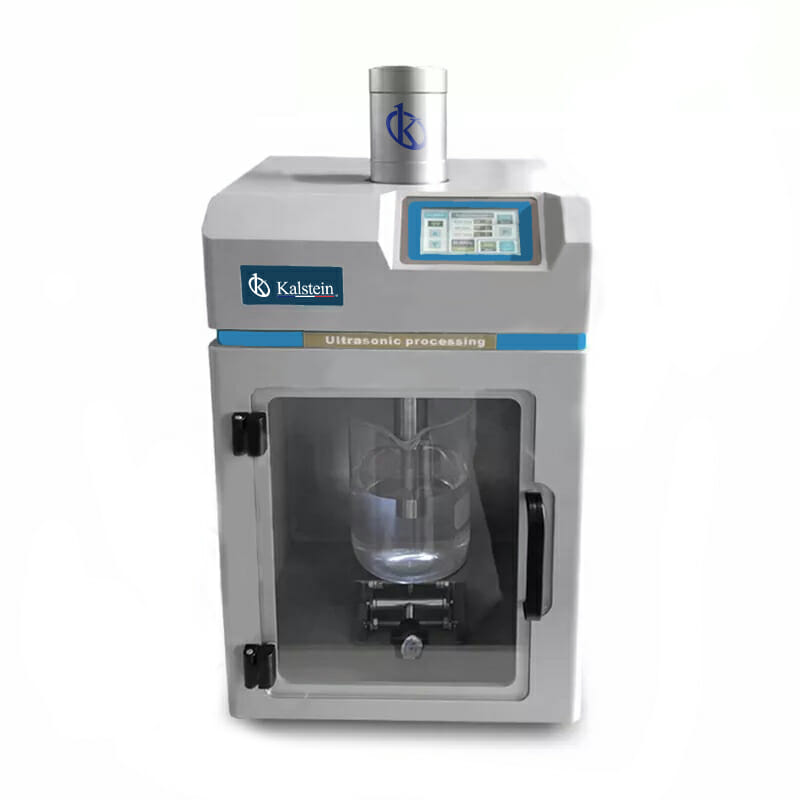

The Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 is a vital tool for laboratories demanding precision and efficiency in solid-liquid sample treatments. This state-of-the-art ultrasonic equipment excels in cell lysis, emulsification, nanoparticle dispersion, and accelerating chemical reactions. Equipped with a cutting-edge digital interface and fully automated controls, it allows users to adjust the ultrasonic power from 0 to 100%, ensuring each process is optimized according to specific sample needs. Its 3.2-inch LCD touch screen and the capacity to store up to 8 data sets offer user-friendly operation and detailed process tracking.
Market Price
The market price of the Intelligent Digital Sonicator YR05837 // YR05839 ranges approximately from $3,500 to $4,750 USD. This price range reflects the advanced technology and high performance that set it apart from other ultrasonic homogenizers. Additional configurations, such as optional probes, water cooling systems, and the RS422 to USB software package, can also influence the final cost.
Frequently Asked Questions
- What types of samples can this device process?
This sonicator is perfect for processing various samples, including animal and plant cells, nanoparticles, emulsions, and soil samples.
- Is it safe for sensitive samples?
Yes, the precise power and temperature control features ensure that sensitive samples are protected from thermal or mechanical damage.
Advantages and Disadvantages
The YR05837 // YR05839 model boasts several advantages, such as its versatility, high precision, and automated safety functions. It offers continuous and pulse operation modes, and its automatic frequency compensation guarantees consistent performance. A potential disadvantage is its size, which might be unsuitable for laboratories with limited space. However, the included soundproof box significantly reduces noise during operation.
Field Use
This advanced sonicator sees extensive use in fields like biotechnology, materials chemistry, and medicine. In molecular biology, it facilitates DNA and protein extraction, while in chemistry, it successfully disperses carbon nanotubes and other complex compounds. Its processing capacity, ranging from 50 ml to 3000 ml, makes it indispensable in both research and industrial laboratories.
Recommendations
To maintain optimal performance and extend the equipment's lifespan, regular maintenance is recommended. This includes cleaning the probes and checking the cooling system. For those interested in purchasing, requesting a quote or automatically generating one through the Kalstein Plus platform is simple and straightforward. Enhance your experimental processes' quality and precision with this cutting-edge ultrasonic technology.
Features
- Advanced digital interface and automated controls.
- Adjustable ultrasonic power from 0 to 100%.
- Capacity to store up to 8 data sets for detailed tracking.
- 3.2-inch LCD touch screen.
- Versatile processing for various sample types.
- Automated safety functions and automatic frequency compensation.
Technical Specifications
| Model No. | YR05837 | YR05837-1 |
| Working Frequency | 19~25KHz Automatic compensation | |
| Ultrasonic Power | 950W | 650W |
| Processing Capacity | 100~1200ml | 50~800ml |
| Power adjustable | 0~100% | |
| Timer | LCD Touch screen, adjustable from 1s to 99h | |
| Pulser | Digital, closed loop, open loop, 1s to 99min to choose and set | |
| Ultrasonic mode | Pulse mode / Continuous mode | |
| Standard Probe | Φ13mm | Φ6mm |
| Optional Probe | Φ3/6/8/10/16/18mm | Φ3/6/8/13/16mm |
| Energy Converter | CV33, PZT lead zirconate titanate piezoelectric ceramics | |
| Probe Material | Titanium Alloy TI-6AL-4V | |
| Cabinet lighting | yes | |
| Lifting table | yes | |
| Machine size | 245*365*245mm | |
| Sound Proof box size | 240*250*390mm | |
| Power Supply | AC220/50Hz,110V/60Hz | |
| Optional Configuration | Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack | |
| Model No. | YR05838 | YR05839 |
| Working Frequency | 19~25KHz Automatic compensation | |
| Ultrasonic Power | 1200W | 1800W |
| Processing Capacity | 100~2000ml | 100~3000ml |
| Power adjustable | 0~100% | |
| Timer | LCD Touch screen, adjustable from 1s to 99h | |
| Pulser | Digital, closed loop, open loop, 1s to 99min to choose and set | |
| Ultrasonic mode | Pulse mode / Continuous mode | |
| Standard Probe | Φ16mm | Φ20mm |
| Optional Probe | Φ3/6/8/10/13/18/20mm | Φ3/6/8/10/13/16/18/25mm |
| Energy Converter | CV33, PZT lead zirconate titanate piezoelectric ceramics | |
| Probe Material | Titanium Alloy TI-6AL-4V | |
| Cabinet lighting | yes | |
| Lifting table | yes | |
| Machine size | 245*365*245mm | |
| Sound Proof box size | 240*250*390mm | |
| Power Supply | AC220/50Hz,110V/60Hz | |
| Optional Configuration | Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack | |
Technical specifications
| Dimensions | L 48 × W 33 × H 53 cm |
|---|---|
| Weight | 9.9 kg |
| Manufacturer | Kalstein |
Available models
- Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 - YR05837 (SKU: YR05837)
- Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 - YR05837-1 (SKU: YR05837)
- Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 - YR05838 (SKU: YR05837)
- Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 - YR05839 (SKU: YR05837)
