Biological Microscope YR0242-M // YR0242-T
Biological Microscope YR0242-M // YR0242-T — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

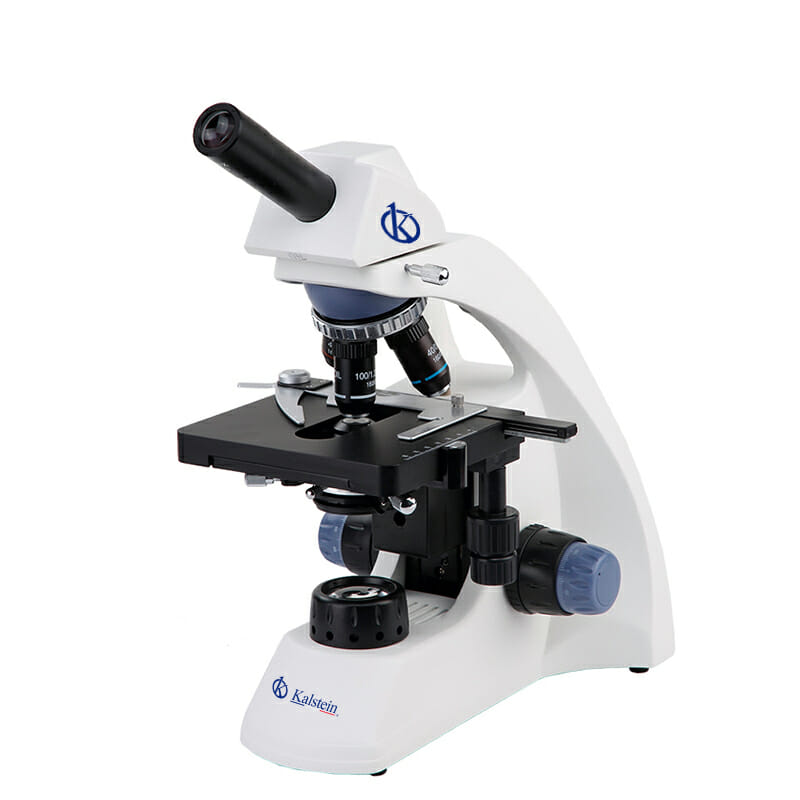

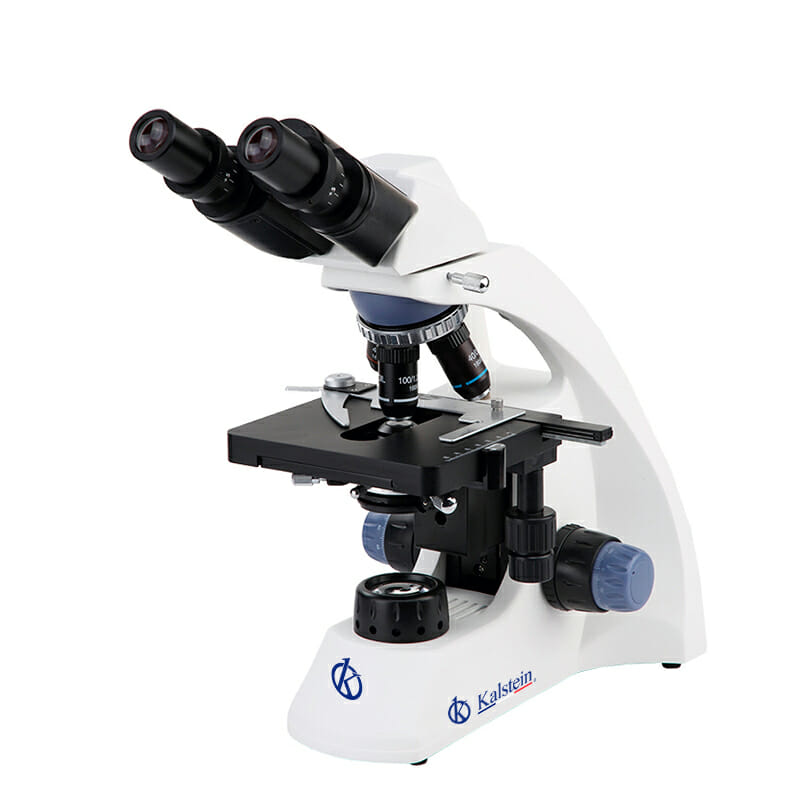

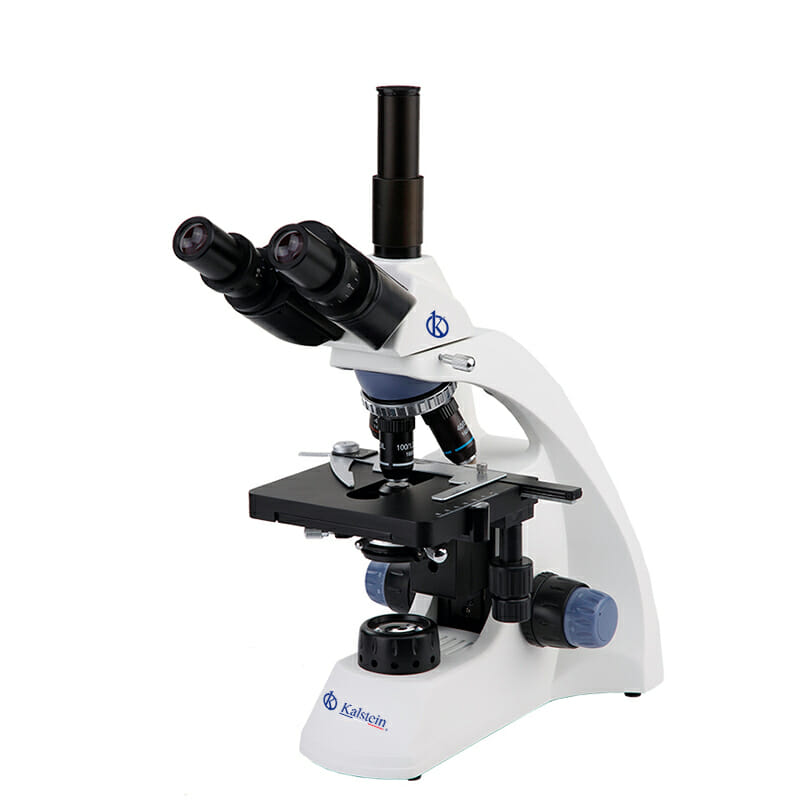

The Biological Microscope YR0242-M // YR0242-T offers unparalleled precision and versatility for laboratory and educational settings. Available in monocular, binocular, trinocular, and teaching head configurations, this microscope satisfies diverse observational needs. It features a quadruple nosepiece with precise click stops and a robust mechanical stage of 142x132 mm with a 75x50 mm moving range. Its Abbe condenser with an N.A. of 1.25 ensures high brightness, aided by a 3W LED light source with adjustable brightness for optimal clarity. This advanced optical system incorporates both infinity plan and achromatic optics, delivering exceptional imaging quality.
Market Price
The Biological Microscope YR0242-M // YR0242-T can be found in the market ranging approximately from 400 USD to 1200 USD, varying depending on the configuration and additional features chosen. Its competitive pricing makes it accessible for educational institutions and professional laboratories alike.
Frequently Asked Questions
- What configurations are available? The microscope is available in monocular, binocular, trinocular, and teaching head configurations.
- Does the microscope support video capture? Yes, the YR0242-B model includes a C-Mount 0.3x video adapter for capturing observations.
- What light sources are compatible? The unit supports both halogen 6V20W and LED options for illumination.
Advantages and Disadvantages
Advantages: The microscope provides high precision and versatility, accommodating various observational needs with its interchangeable heads and reliable optical system. The adjustable LED light source is energy-efficient, and its mechanical stage offers smooth movement and precise control.
Disadvantages: While the microscope offers many features, the most advanced options can increase the cost significantly. Additionally, not all configurations support video capture.
Product Use in the Field
The Biological Microscope YR0242-M // YR0242-T is ideal for biological, microbiological, and clinical applications. Its robust design and precise optics allow users to conduct detailed sample analysis, aiding professionals and students in research and education. The trinocular version is particularly useful for presentations and teaching, accommodating both direct observation and digital capture.
Recommendations
To maximize the durability and performance of this microscope, regular cleaning of the lenses and mechanical components is advised. For accurate results, always start your observation from a lower magnification and gradually increase as needed. Ensure the illumination settings are optimized for the sample type to avoid eye strain and ensure clarity.
Features
- Available in monocular, binocular, trinocular, and teaching head configurations.
- Quadruple nosepiece with precise click stops.
- Integrated double-layer mechanical stage with a size of 142x132 mm.
- Adjustable high-brightness 3W LED light source.
- Infinity plan and achromatic optical systems.
Technical Specifications
| Model No. | YR0242-M | YR0242-B | YR0242-T |
| Video Adapter | —— | C-Mount 0.3x | —— |
| Power Supply Type | AC 110V-240V | —— | |
| Transmit Light | Halogen 6V20W or LED Optional | ||
| Light Source Type | Halogen | ||
| Condenser N.A. | 1.25 | ||
| Condenser Type | Abbe | ||
| Condenser Features | Rack & Pinionↆ↑, Filter Holder, Center Adjustable | ||
| Focusing Scale | 0.002mm | ||
| Focusing Range | 36mm | ||
| Focusing Type | Coaxial Coarse & Fine | —— | |
| Focusing Features | Safety Stop Screw Tension Adjustable | ||
| Working Stage Moving | 75*50mm | ||
| Working Stage Size | 132*142mm | ||
| Working Stage Type | 2 Layers Mechanical | ||
| Objective | Achromatic 4x, 10x, 40x(S), 100x(O,S) | ||
| Objective Type | Achromatic | ||
| Nosepiece Holes | 4 Holes | ||
| Nosepiece Features | Inward | ||
| Eyepiece | WF10x/18mm | ||
| Eyepiece Diameter | 23.2mm | ||
| Head Interpupillary | 54~75mm | ||
| Head Rotation | Head Rotate 360° | —— | |
| Head Inclination | 30° | —— | |
| Head Type | Monocular | —— | Seidentopf Trinocular |
| Standard Magnification | 40x-1000x | —— | |
| Optical System | Achromatic | ||
| Standard Function | BF | —— | |
Technical specifications
| Dimensions | L 34 × W 25.5 × H 49 cm |
|---|---|
| Weight | 6 kg |
| Manufacturer | Kalstein |
