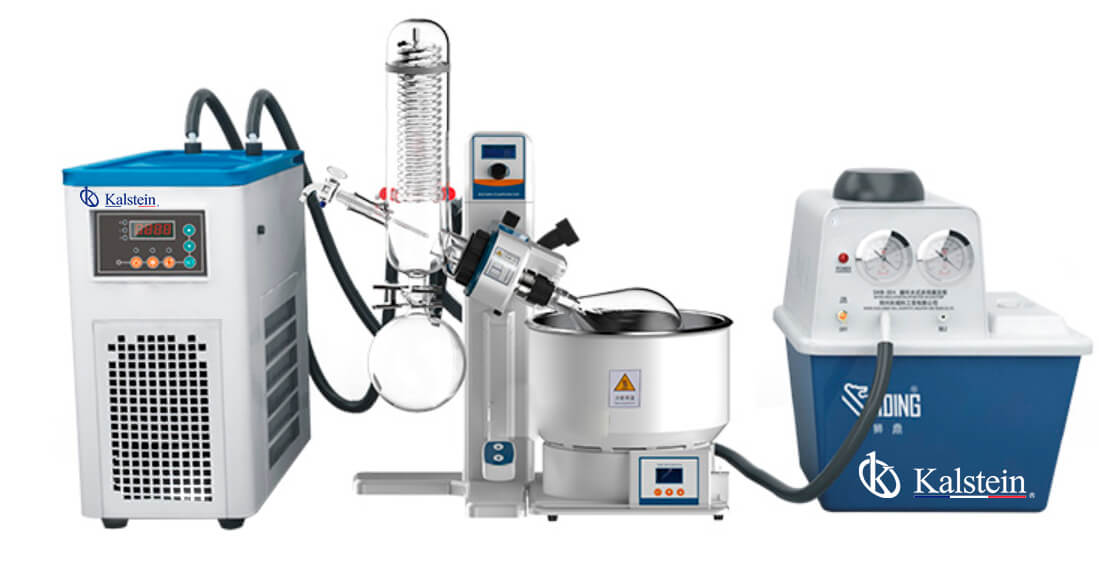

Installation and Commissioning Guide for the YR02306 Rotary Evaporator
The YR02306 Rotary Evaporator is a vital piece of laboratory equipment designed for evaporation, distillation, and separation of chemicals. This guide focuses on the essential steps for proper installation and commissioning, ensuring that users can operate the device safely and effectively.
Understanding the YR02306 Rotary Evaporator
The YR02306 model is engineered to work seamlessly with a circulating vacuum pump and a chiller. This integrated system helps to fulfill production and experimental needs efficiently. The evaporator utilizes patented double sealing technology with PTFE and rubber materials to ensure a strong negative pressure, crucial for effective operation.
Unboxing and Initial Setup
When you receive your YR02306, carefully unbox the unit and check for all components. The packing list should include:
- YR02306 Rotary Evaporator Unit
- Motorized Lift
- Condensation Receiver
- Heating Bath
- Manual and Warranty Information
Ensure that there is no visible damage and that all parts are accounted for before proceeding with the installation.
Anchoring and Leveling the Unit
To optimize the performance of the YR02306, it must be anchored securely to a stable surface. Follow these steps:
- Select a flat, stable area in your laboratory.
- Use leveling tools to ensure that the unit is perfectly level, as uneven surfaces can lead to operational issues.
- Secure the evaporator with appropriate fasteners to prevent any movement during operation.
Power-Up Sequence
After leveling and securing the unit, follow this power-up sequence:
- Connect the rotary evaporator to a power source, ensuring that it matches the specifications (100V to 240V, 50/60Hz).
- Check all connections and confirm that the water circulation and vacuum pump are properly connected.
- Turn on the power supply and observe the startup sequence on the digital display.
- Allow the system to initialize, which may take a few minutes.
First-Run Calibration
Before you begin your first experiment, it is essential to calibrate the device:
- Set the desired temperature using the PID controller.
- Adjust the rotation speed according to the material you will be evaporating.
- Check the vacuum system to ensure proper functionality.
Conduct a short test run without any substances to confirm that all settings are functioning correctly.
Common Installation Mistakes to Avoid
When setting up the YR02306, avoid these common pitfalls:
- Failing to level the unit properly can result in uneven evaporation.
- Neglecting to check electrical connections can cause operational failures.
- Not calibrating before the first run can lead to inaccurate results.
Technical Specifications of the YR02306
| Specification | Details |
|---|---|
| Model | YR02306 |
| Rotation Speed | 10~280 rpm |
| Vacuum Pressure Increase Rate | <=0.33 kPa/min |
| Temperature Range | RT + 5~95℃ |
| Thermal Stability | ±1℃ |
| Heating Power | 1300W |
| Cooling Surface Area | 0.126 m² |
| Evaporating Flask Volume | 500 ml, 1000 ml |
| Weight | 10 kg (main unit), 3.9 kg (water bath) |
| Dimensions | 595W x 390D x 680H mm |
Frequently Asked Questions
What safety precautions should I take when using the YR02306?
Ensure you wear appropriate personal protective equipment (PPE) like gloves and goggles. Always check for leaks in the vacuum system and ensure proper ventilation in your workspace.
How do I troubleshoot if the YR02306 does not power on?
First, check the power connection. If it's secure, inspect the main fuse. If there's still no response, refer to the user manual for additional troubleshooting steps.
What maintenance is required for the YR02306?
Regularly clean the evaporator and check for any wear on seals and gaskets. Perform a functional check of the vacuum system and replace any worn components promptly.
What types of substances can I process with the YR02306?
The YR02306 is suitable for a variety of chemicals including solvents like ethanol and water. Always consult material safety data sheets (MSDS) for compatibility.
How often should I calibrate the YR02306?
Calibration is recommended before significant runs or when changing the type of material being processed to ensure accurate results.
Where can I find replacement parts for the YR02306?
Replacement parts and accessories can typically be ordered through authorized suppliers or through the manufacturer's customer service.
Can I use the YR02306 for continuous operation?
Yes, the YR02306 is designed for continuous operation; however, it is advisable to monitor temperatures and performance regularly to avoid overheating.
