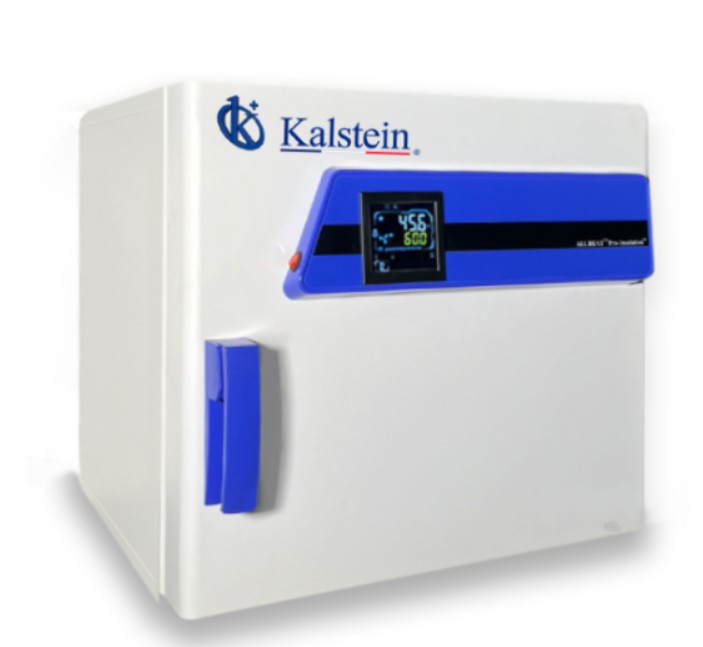

Installation and Commissioning Guide for the YR06444 Programmable Thermostatic Drying Oven
The YR06444 Programmable Thermostatic Drying Oven is a state-of-the-art laboratory equipment designed for drying, sterilizing, heat treatment, and storing materials. This guide aims to provide a comprehensive overview of the installation and commissioning process, ensuring that operators can maximize the oven's performance from the start.
Understanding the YR06444
The YR06444 is equipped with advanced features such as forced convection with adjustable airflow, PID microprocessor control, and dual-layer observation doors. Knowing these features is essential before proceeding with the installation to ensure that the setup aligns with operational requirements.
Unboxing and Initial Setup
Upon receiving the YR06444, carefully unbox the unit and check for any shipping damage. The following items should be included:
- YR06444 Thermostatic Drying Oven
- Power cord
- User manual
- Calibration tools (if applicable)
Installation Steps
Follow these steps to install the YR06444 properly:
- Positioning: Place the oven on a sturdy, level surface, ensuring that there is adequate clearance around it for airflow.
- Electrical Connection: Connect the power cord to a suitable outlet (110/220V, 50Hz). Ensure that the circuit can handle the oven's power requirements (900W/1100W depending on the model).
- Grounding: Connect the oven to a grounding source to prevent electrical hazards.
- Preliminary Calibration: Conduct initial calibration as per the manufacturer's instructions to ensure temperature accuracy.
First Run and Calibration
After installation, follow these steps for the first run:
- Power on the unit and set it to a low temperature (about 50°C) to stabilize the thermal environment.
- Allow the unit to reach the set temperature and monitor for any discrepancies in readings.
- Once stabilized, conduct a two-point calibration using reference thermometers to ensure accuracy across the operational range.
Common Setup Mistakes to Avoid
To ensure a smooth installation process, be mindful of these common mistakes:
- Improper leveling of the oven, which can affect temperature uniformity.
- Connecting the unit to an incompatible power supply.
- Ignoring the manual’s guidelines for spacing and ventilation.
- Skipping the initial calibration, which could lead to inaccurate temperature readings during subsequent uses.
Technical Specifications Table
| Specification | YR06444 | YR06445 |
|---|---|---|
| Convection Mode | Forced convection with adjustable airflow | Forced convection with adjustable airflow |
| Control System | PID microprocessor | PID microprocessor |
| Temperature Range (°C) | RT+5 to 300 | RT+5 to 300 |
| Temperature Accuracy (°C) | 0.1 | 0.1 |
| Temperature Fluctuation (°C) | ±0.5% (in the range of 50-240°C) | ±0.5% (in the range of 50-240°C) |
| Dimensions (H×W×D) | 570×580×593 | 670×680×593 |
| Internal Volume (L) | 40 | 70 |
| Power (W) | 900 | 1100 |
Frequently Asked Questions
What is the maximum temperature the YR06444 can reach?
The YR06444 can reach temperatures from RT+5°C to 300°C, making it suitable for various drying and sterilization applications.
How often should I perform maintenance on the YR06444?
Regular maintenance, including cleaning the stainless steel chamber and checking seals, is recommended at least once every six months, along with annual calibration.
Can the YR06444 record data?
Yes, the YR06444 is equipped with RS485/232 connections for data logging, and the 'TC' version includes a 4.3-inch touchscreen with USB data storage capabilities.
Is there a warranty for the YR06444?
The warranty typically covers one year from the date of purchase, ensuring protection against manufacturing defects and providing peace of mind.
What are the common applications for the YR06444?
The YR06444 is ideal for applications in microbiology, pharmaceuticals, and quality control, where precise temperature control and uniform drying are critical.
How do I ensure accurate temperature readings in the YR06444?
To ensure accurate readings, perform regular calibrations and use certified reference thermometers to verify the unit's performance against standard benchmarks.
Where can I request a quote for the YR06444?
You can request a quote on Kalstein Plus for the YR06444 Programmable Thermostatic Drying Oven and explore various purchasing options.
