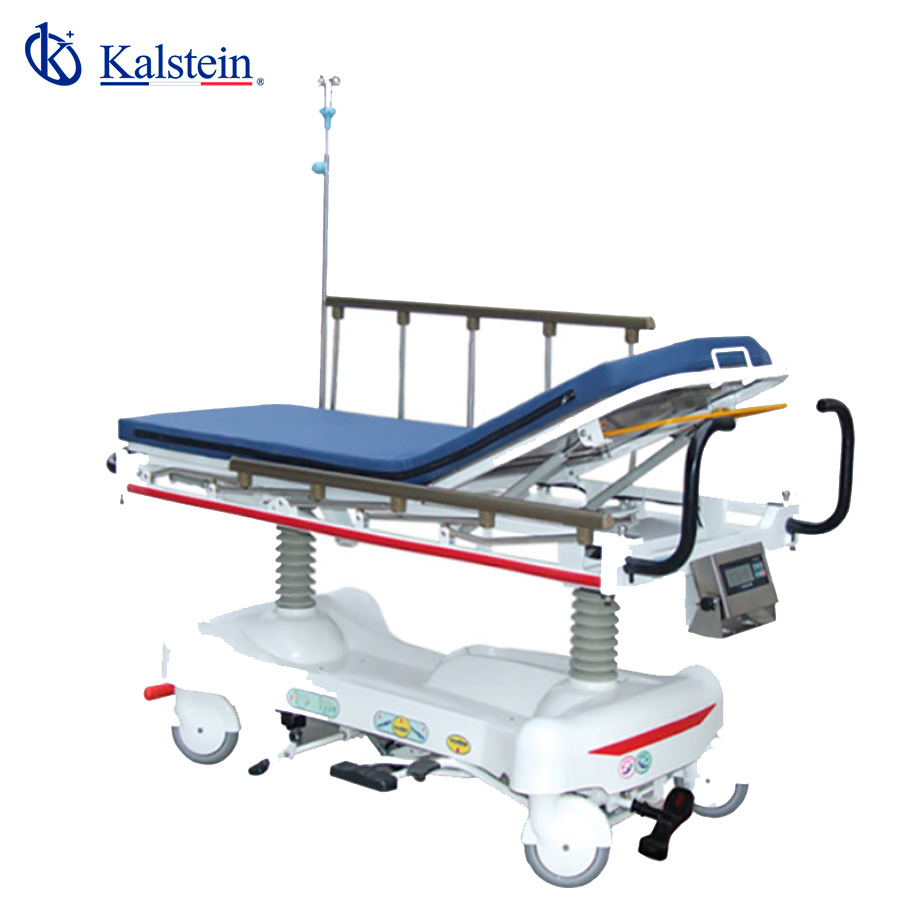

Installation and Commissioning Guide for the YR06292 Hydraulic Five Function Transfer Stretcher
The YR06292 Hydraulic Five Function Transfer Stretcher is a versatile piece of medical equipment designed for efficient patient transfer in clinical environments. This guide aims to provide a detailed installation and commissioning process, ensuring the stretcher is set up correctly for optimal use.
Unboxing and Initial Setup
Upon receiving the YR06292 stretcher, begin with the unboxing process. Carefully remove the stretcher from its packaging, ensuring that all components are accounted for. This includes:
- Steel frame
- Aluminum alloy handrails
- CPR handle
- IV pole
- Waterproof mattress cover
- Hydraulic control panel
Check for any visible damage and ensure all parts are included as per the manual.
Anchoring and Leveling
Once unboxed, position the stretcher in its intended location. It is crucial to ensure that the stretcher is level to maintain stability during use. Use a spirit level to verify the horizontal alignment and adjust the feet of the stretcher if necessary. Ensure that the area around the stretcher is clear and easily accessible.
Power-Up Sequence
To power up the YR06292, follow these steps:
- Connect the stretcher to a suitable power source that complies with the specified voltage requirements.
- Activate the hydraulic control panel by pressing the power button.
- Check for any error codes on the display, ensuring the system is fully operational.
First-Run Calibration
Calibration is critical for ensuring accurate performance. Conduct the following calibration steps:
- Adjust the height settings from the minimum to maximum (630 mm to 950 mm) to verify smooth operation.
- Test the backrest and footrest angles; the backrest should achieve a maximum upward angle of 75°, while the footrest should reach 45°.
- Run through the hydraulic functions to ensure the stretcher operates correctly in all five modes.
Common Setup Mistakes
During installation, be aware of these common mistakes:
- Improper leveling, leading to instability during patient transfers.
- Failing to calibrate before first use, which can result in inaccurate readings.
- Ignoring error codes during the power-up sequence, which may indicate underlying issues.
Technical Specifications of the YR06292
| Specification | Details |
|---|---|
| Model | YR06292 |
| Size (L*W*H) | 2070*730*660/940 mm |
| Maximum Loading Capacity | 150 kg |
| Weighing Accuracy | 0.02 kg to 0.05 kg |
| Backrest Max Upward Angle | 75° |
| Footrest Max Upward Angle | 45° |
| Pumps | 2 USA hydraulic |
| Height Adjustment | 630-950 mm |
| Trendelenburg Angle | 15° |
| Anti-Trendelenburg Angle | 15° |
Frequently Asked Questions
What are the key features of the YR06292 stretcher?
The YR06292 features a steel frame, aluminum alloy handrails, a CPR handle, and a waterproof mattress cover. It also includes a hydraulic control panel and adjustable height settings.
How do I maintain the YR06292 stretcher?
Regular maintenance includes checking hydraulic fluid levels, inspecting the structural integrity of the frame, and ensuring the wheels are functioning correctly. It is also important to clean the waterproof mattress cover regularly.
What should I do if the stretcher displays an error code?
If an error code appears on the display, refer to the user manual for troubleshooting steps. Common errors may require checking connections, recalibrating, or contacting technical support.
Can the YR06292 be used in different clinical settings?
Yes, the YR06292 is designed for versatility and can be used in various clinical settings, including emergency rooms, surgical units, and outpatient facilities.
What is the weight capacity of the YR06292 stretcher?
The YR06292 stretcher has a maximum loading capacity of 150 kg, making it suitable for a wide range of patient transfers.
How can I request a quote for the YR06292?
You can request a quote for the YR06292 by contacting your local distributor or reaching out directly through our inquiry channels.
What accessories are compatible with the YR06292?
Compatible accessories for the YR06292 include IV poles, waterproof covers, and additional mattress options, enhancing functionality in various clinical scenarios.
