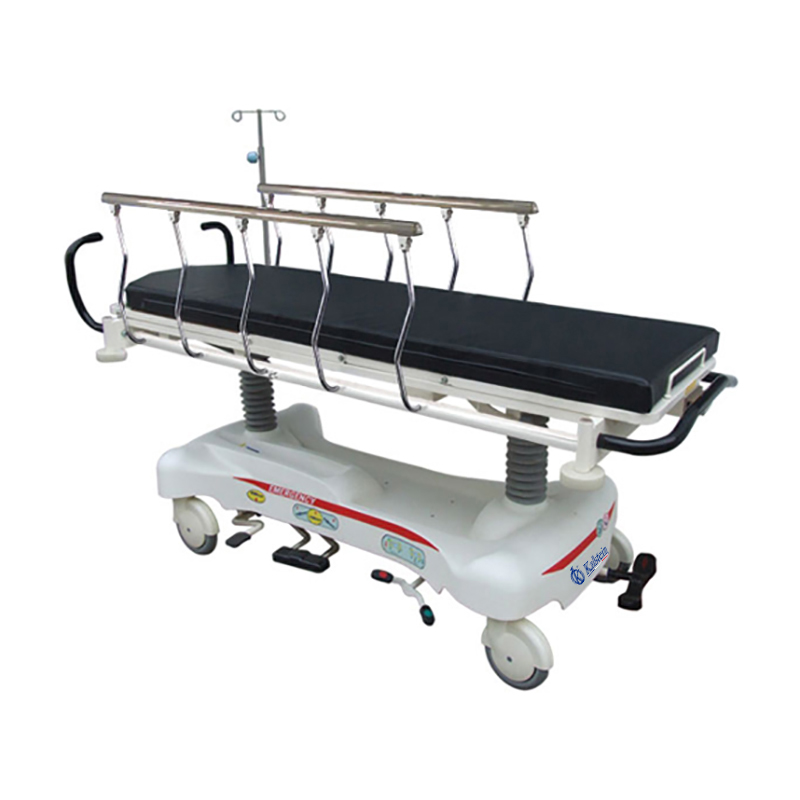

Installation and Commissioning Guide for the YR06289 Hydraulic Five Function Transfer Stretcher
The YR06289 Hydraulic Five Function Transfer Stretcher is a crucial piece of medical equipment designed for transferring patients safely and efficiently. This guide aims to provide a detailed overview of the installation and commissioning process, ensuring that operators can make the most of this advanced device.
Unboxing Checklist
Before the installation process begins, it is essential to check the contents of the package thoroughly. Here’s a checklist to guide you through the unboxing process:
- YR06289 Hydraulic Transfer Stretcher
- User Manual
- Assembly Tools
- Accessories (IV pole, oxygen tank holder)
- Warranty Information
Ensure all parts are accounted for and free from damage. If any components are missing or defective, contact your supplier for assistance.
Installation Steps
Follow these steps to properly install the YR06289 stretcher:
- Positioning: Place the stretcher on a flat surface within the designated area. Ensure there is adequate space around it for operation and movement.
- Assembly: Attach the IV pole and oxygen tank holder according to the instructions in the user manual.
- Check Connections: Ensure all hydraulic connections are secured and free from leaks. Verify that the brakes are functioning properly.
Power-Up Sequence
Once the stretcher is installed, follow these steps to power it on:
- Connect to a power source if applicable.
- Power up the stretcher using the main switch.
- Check the display panel for any error messages.
First-Run Calibration
Calibration is key to ensuring the YR06289 functions correctly. Here’s how to calibrate the device:
- Adjust the height of the stretcher to its lowest position.
- Check the leveling using a spirit level on the stretcher surface.
- Test all functions, including the gas spring backrest, hydraulic pump, and brakes.
Document the calibration results for future reference.
Common Setup Mistakes
Below are some common mistakes to avoid during the installation and commissioning of the YR06289:
- Improper assembly of the IV pole or oxygen holder.
- Neglecting to secure hydraulic connections.
- Failing to perform height adjustments before use.
Being aware of these pitfalls can help ensure a smoother setup process.
Technical Specifications of YR06289
| Model | YR06289 |
|---|---|
| Size (L*W*H) | 2120*800*610/930mm |
| Frame Materials | PP |
| Side Rail Materials | Stainless Steel and Aluminum Alloy |
| Bed Base Materials | PP |
| Pump | American Powerpacker Hydraulic |
| Backrest Max Upward Angle | 75° |
| Height Adjustment | 630-930mm |
| Trendelenburg Angle | 15° |
| Anti-Trendelenburg Angle | 15° |
| Legrest Max Upward Angle | 0-45° |
Frequently Asked Questions
What are the main features of the YR06289 stretcher?
The YR06289 stretcher features a central brake system, an IV pole, a gas spring adjustable backrest, an auxiliary wheel for maneuverability, and X-ray translucent backrest. It also includes an oxygen tank holder to enhance patient care during transfers.
How do I perform maintenance on the YR06289 stretcher?
Regular maintenance should include checking hydraulic fluid levels, inspecting brakes for wear, and ensuring that all moving parts are lubricated. Additionally, a thorough cleaning routine should be established to maintain hygienic conditions.
Can the YR06289 be used in emergency situations?
Yes, the YR06289 is designed for emergency use. Its easy maneuverability, adjustable features, and additional equipment compatibility make it suitable for rapid patient transfers in urgent scenarios.
What safety features are included in the YR06289?
The YR06289 is equipped with a central brake system, secure side rails, and stability features to prevent tipping during transfers. These safety elements are critical for ensuring patient and operator safety.
What should I do if the YR06289 experiences a hydraulic failure?
In the event of a hydraulic failure, immediately cease operation and inspect for leaks or damage. Refer to the user manual for troubleshooting steps or contact the supplier for specialized assistance.
How can I request additional parts or accessories for the YR06289?
To request additional parts or accessories, contact your supplier or check the product catalog for compatible items specific to the YR06289 model.
