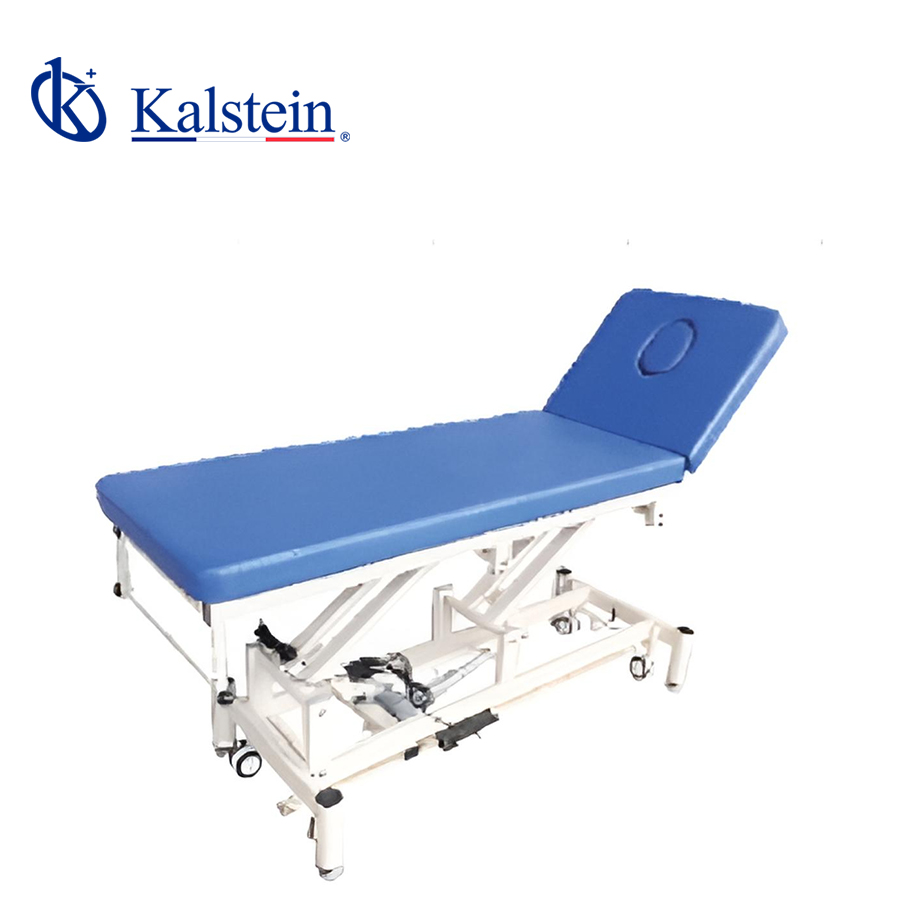

Installation and Commissioning Guide for the YR06277 Electric Examination Table
The YR06277 Electric Examination Table is an essential piece of equipment designed for clinical environments, providing convenience and comfort for patients and practitioners alike. Proper installation and commissioning of this table are crucial for ensuring optimal performance and longevity. This guide covers every step involved in setting up the YR06277, from unboxing to first calibration.
Unboxing and Initial Setup
Unboxing the YR06277 is the first step toward its installation. Ensure you have a clean, spacious area to set up and inspect the table. Check the following items during unboxing:
- The electric examination table YR06277
- Power cable
- User manual
- Accessories for assembly
Anchoring and Leveling the YR06277
Once unboxed, place the table in the designated area. It is important to ensure that the table is level for proper operation. Follow these steps:
- Use a leveling tool to check the surface on which the table is placed.
- If necessary, adjust the rubber pads located at the bottom of the legs to achieve a level surface.
- Ensure all legs are firmly in contact with the ground to prevent any wobbling during use.
Power-Up Sequence
After leveling, proceed to power up the YR06277. Follow these instructions for a safe power-up:
- Connect the power cable to a grounded outlet.
- Turn on the power switch located on the side of the table.
- Verify that the power indicator light is on, signaling that the table is powered up.
First-Run Calibration
Calibration is an important step to ensure accurate height adjustments and proper functioning. To perform the first-run calibration:
- Adjust the height of the table using the motorized controls.
- Test the movement of the backrest section, which elevates via the gas spring mechanism.
- Check for smooth operation and listen for any unusual noises that may indicate a fault.
Technical Specifications of the YR06277
| Specification | Details |
|---|---|
| Model | YR06277 |
| Size (L*W*H) | 1900mm x 550mm x 400-800mm |
| Load Bearing | 80 kg |
| Mattress Size | 5 cm |
| Backrest Section | 0-75° |
| Height Adjustment | Motor controlled |
Common Setup Mistakes
During installation, several common mistakes can arise. Here are some pitfalls to avoid:
- Not checking for level: Always ensure the table is level before use.
- Improper power connection: Use only the specified power outlet to prevent electrical issues.
- Neglecting calibration: Skipping calibration may lead to inaccurate height adjustments.
Frequently Asked Questions
What are the dimensions of the YR06277 Electric Examination Table?
The dimensions of the YR06277 are 1900mm in length, 550mm in width, and adjustable in height from 400mm to 800mm.
How do I properly clean the surface of the YR06277?
The surface of the YR06277 is covered with a PU material that is waterproof and easy to clean. Use a mild disinfectant and a soft cloth for cleaning.
What is the maximum load capacity for the YR06277?
The YR06277 has a maximum load capacity of 80 kg, ensuring safety and stability for most patients.
How do I adjust the backrest on the YR06277?
The backrest of the YR06277 can be adjusted using the gas spring mechanism, allowing for angles between 0° to 75°.
Is the YR06277 suitable for all clinical environments?
Yes, the YR06277 is designed for versatility and can be used in various clinical environments, including hospitals, clinics, and private practices.
What maintenance is required for the YR06277?
Regular checks on the mechanical components, cleaning of the surface, and ensuring electrical connections are secure will help maintain the YR06277 in optimal working condition.
Can I request a quote for the YR06277?
Yes, you can request a quote for the YR06277 through our contact channels for pricing and availability.
