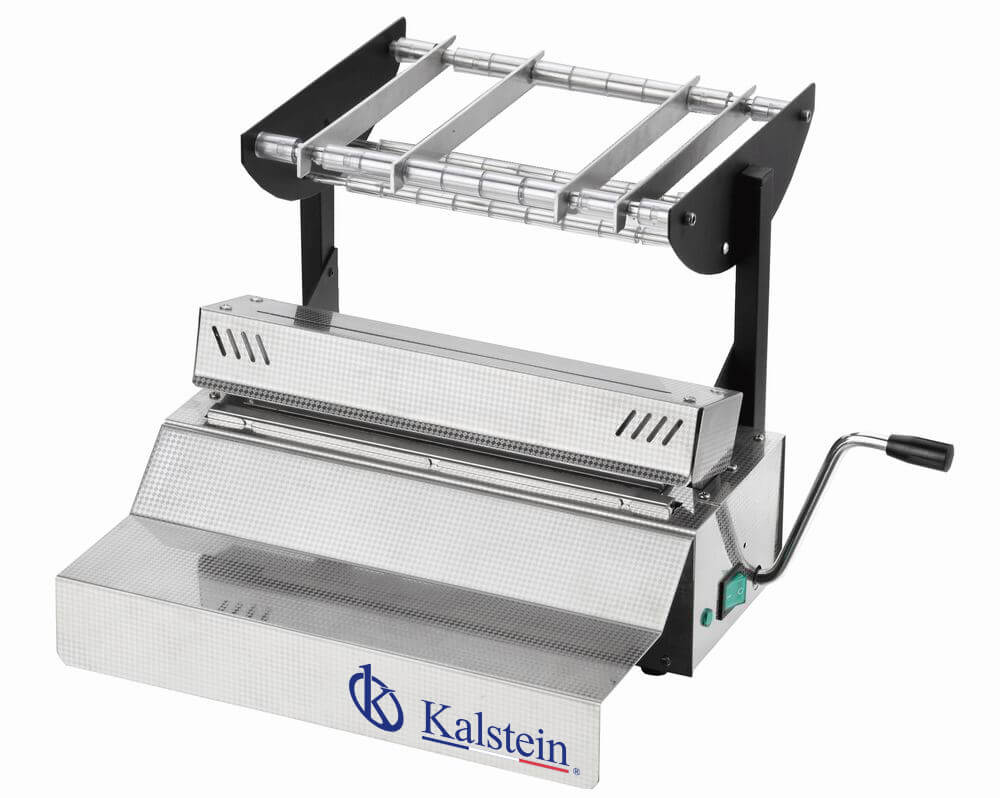

Installation and Commissioning Guide for the YR05987 Sealing Machine
The YR05987 sealing machine is an essential tool for ensuring that sterilized instruments remain uncontaminated. This guide will walk you through the necessary steps for installation and commissioning to ensure that you are able to operate this machine efficiently and effectively.
Unboxing Checklist
Before you begin the installation of the YR05987, it is crucial to unbox the device carefully and check that all components are present. The unboxing checklist includes:
- YR05987 sealing machine unit
- Power cord
- Instruction manual
- Calibration tools
- Spare sealing film roll
- Protective cover for the sealing machine
Site Requirements
Before installation, ensure that your workspace meets the following environmental conditions:
| Parameter | Requirements |
|---|---|
| Temperature Range | 15°C to 30°C |
| Humidity | 30% to 70% |
| Power Voltage | 220V/50Hz |
| Clearance | At least 15 cm around the unit |
Leveling and Anchoring the YR05987
The YR05987 should be installed on a level surface to ensure accurate sealing and optimal performance. Follow these steps:
- Place the machine in the desired location.
- Use a leveling tool to check the surface; adjust as necessary.
- Secure the machine using appropriate anchors if required.
Power-Up Sequence
Once the machine is in position and secured, follow these steps to power it up:
- Connect the power cord to the socket.
- Turn on the power switch located on the back of the machine.
- Wait approximately 2 minutes for the cooling unit to reach operational temperature.
- Check if the signal lamp is off, indicating readiness.
Calibration and First-Run Validation
After powering up, perform the following calibration steps:
- Ensure that the sealing bar is clean and free from obstructions.
- Load the sealing film into the machine following the instructions provided in the manual.
- Run a test seal with a sample package to validate the sealing process. The seal should measure 10 mm in width.
Common Setup Mistakes
To ensure a successful installation and commissioning, watch out for these common mistakes:
- Incorrect power supply settings, leading to faulty machine operation.
- Improper leveling, which can affect the sealing quality.
- Failure to validate the first seal, which can lead to undetected issues.
Technical Specifications of the YR05987
| Specification | Details |
|---|---|
| Model | YR05987 |
| Voltage | 220V/50Hz |
| Power | 500 W |
| Sealing Width | 10 mm |
| External Size | 480×410×290 mm |
| Net Weight | 5.5 KG |
Frequently Asked Questions
What is the best way to maintain the YR05987 sealing machine?
The YR05987 sealing machine should be regularly cleaned and inspected for wear. Ensure that the sealing bars are free from residue and that the machine is calibrated regularly. Maintenance should be performed according to the manufacturer's instructions.
Can I use other types of sealing films with the YR05987?
Yes, ensure that the sealing films meet the required specifications for width and thickness as per the manufacturer’s guidelines to maintain sealing integrity.
What should I do if the YR05987 does not power on?
If the machine does not power on, check the power supply connection and ensure that the outlet is functional. If these checks do not resolve the issue, consult the troubleshooting section of the manual or contact customer support.
How long does the sealing process take with the YR05987?
The sealing process is completed in approximately 2 seconds once the pressure bar is engaged. This rapid sealing ensures efficiency in a clinical setting.
Is there a warranty on the YR05987 sealing machine?
Yes, the YR05987 typically comes with a warranty that covers manufacturing defects. Check the manufacturer's warranty policy for specific terms and conditions.
What are the common issues faced during the initial setup of the YR05987?
Common issues during setup include incorrect power configurations, failure to properly level the machine, and not validating the first seal. Addressing these proactively can prevent operational problems.
How can I request a quote for the YR05987 sealing machine?
You can request a quote by contacting Kalstein customer service or through the designated quote request form available on the website.
