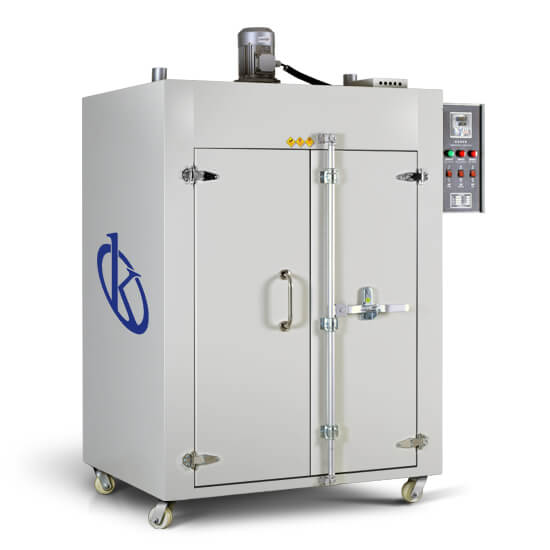

Installation and Commissioning Guide for the YR05259-1-SS Electric Heating Drying Stove
The YR05259-1-SS Electric Heating Drying Stove is a sophisticated piece of equipment designed for efficient drying and dehydration across various industrial sectors. This guide provides a thorough foundation for users, focusing on the proper installation and commissioning of the YR05259-1-SS, ensuring that operatives can maximize its functionality and safety standards.
Understanding the YR05259-1-SS Electric Heating Drying Stove
The YR05259-1-SS model features a double-layer door, intelligent temperature control via a microcomputer, and a digital display, enhancing usability for drying applications in industries such as electronics, food processing, and more. This section will elaborate on its primary functions and operational capabilities.
Technical Specifications of YR05259-1-SS
| Model | Power Supply Voltage | Temperature Range (°C) | Timer Range | Temperature Accuracy | Material of Chamber | Power (kW) | Net Weight (KG) |
|---|---|---|---|---|---|---|---|
| YR05259-1-SS | 380 | RT+5 to 250 | 0 to 999h | ±1 | Stainless Steel | 8 to 12 | 214 |
Pre-Installation Checklist
Before commencing the installation of the YR05259-1-SS, ensure the following prerequisites are met:
- Verify the equipment specifications to match the operational requirements.
- Choose an appropriate location with sufficient space for ventilation and service access.
- Ensure a stable and level surface for proper functioning.
- Confirm electrical supply meets machine requirements (380V).
- Prepare any optional safety installations, such as explosion-proof locks and doors if required.
Step-by-Step Installation Process
Follow these detailed steps for installing the YR05259-1-SS Electric Heating Drying Stove:
1. Unboxing and Inspection
Carefully unbox the dryer and inspect for any shipping damage. Ensure all components are present as per the packing list.
2. Positioning the Stove
Place the stove on a sturdy, level surface, ensuring it is located in a well-ventilated area, away from flammable materials.
3. Electrical Connection
Connect the stove to the power supply according to the specifications. Ensure the connection is secure and compliant with local electrical codes.
4. Initial Calibration
Upon powering up, access the digital control panel to set the initial temperature parameters and timer settings based on the intended use.
Common Installation Mistakes and Solutions
Identifying common pitfalls during the installation of the YR05259-1-SS can prevent operational issues:
- Improper leveling: Ensure the stove is perfectly level to avoid uneven heating.
- Neglecting ventilation: Always provide adequate airflow to avoid overheating.
- Incorrect electrical connections: Double-check wiring and voltage requirements before powering on.
Commissioning the YR05259-1-SS
Once installed, the commissioning phase is crucial for ensuring the unit operates correctly. Follow these steps:
1. Power-Up Sequence
Turn on the main power supply and activate the stove from the control panel. Monitor the startup process for any error codes.
2. Run a Test Cycle
Set the stove to a test cycle, selecting optimal temperature and time settings. Monitor the performance closely.
3. Validate Results
Ensure the stove reaches set temperatures within an acceptable timeframe. Check for uniform heating and any operational irregularities.
Frequently Asked Questions
What safety measures should be taken when using the YR05259-1-SS?
When using the YR05259-1-SS, ensure that safety protocols are followed, including using proper personal protective equipment (PPE), verifying the stability of the installation, and maintaining proper ventilation to prevent overheating.
What types of materials can be dried using the YR05259-1-SS?
The YR05259-1-SS is suitable for drying various materials including electronic components, food products, and industrial parts, but it is not designed for flammable or explosive materials.
How do I troubleshoot if the YR05259-1-SS fails to reach the desired temperature?
If the YR05259-1-SS does not reach the desired temperature, check the electrical connections, ensure the heating elements are functioning properly, and verify that the temperature settings are correctly programmed.
Can the YR05259-1-SS be modified for specific applications?
Yes, the YR05259-1-SS can be customized with optional accessories and configurations for specific applications, enhancing its versatility in various industrial environments.
What maintenance is required for the YR05259-1-SS?
Regular maintenance includes cleaning the internal chamber, checking electrical connections, and ensuring the temperature sensors are calibrated for accurate readings.
How can I obtain replacement parts for the YR05259-1-SS?
Replacement parts for the YR05259-1-SS can typically be ordered through authorized distributors or directly from manufacturers specializing in industrial ovens.
