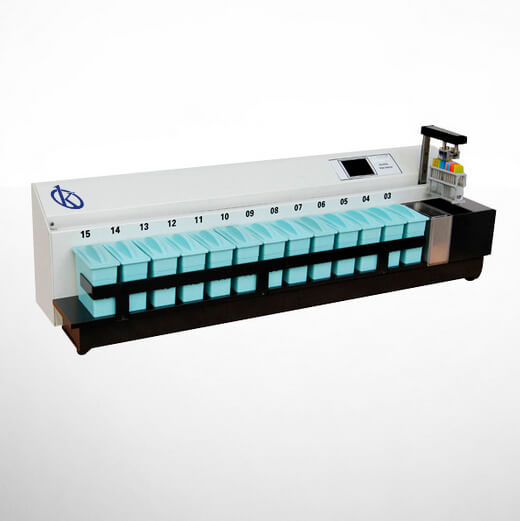

Understanding Environmental Conditions and Installation Requirements for the YR436-1 Automated Slide Stainer
The YR436-1 Automated Slide Stainer is designed to enhance laboratory efficiency with its advanced technology and user-friendly features. However, to harness its full potential, it is crucial to adhere to specific environmental conditions and installation requirements. This article delves into these aspects, ensuring that operators can set up the YR436-1 for optimal performance and durability.
Technical Data of the YR436-1
| Specification | Details |
|---|---|
| Model | YR436-1 |
| Number of Tanks | 15 (station 1 for drying, station 2 for washing, other 13 for reagents) |
| Capacity of Each Tank | Approximately 350ml |
| Treatment Duration in Tank | Adjustable between 0 and 59 minutes and 0 and 59 seconds |
| Temperature Control Accuracy | ± 1% |
| Drip Time | Adjustable between 0 and 60 seconds |
| Stirring Frequency | Adjustable between 0 and 6 times/minute |
| Working Voltage | AC220V ± 10% 50Hz (standard model); AC 110V ± 10% 60Hz |
| Power Consumption | 400W |
| Dimensions | 925 × 250 × 260 mm (L × W × H) |
| Weight | 27 kg |
Environmental Conditions for Optimal Operation
To ensure proper functioning and longevity of the YR436-1, specific environmental conditions must be maintained. These include temperature, humidity, and ventilation requirements.
Temperature Range
The YR436-1 operates effectively within a temperature range of 15°C to 30°C. Maintaining this temperature is essential as it influences the chemical reactions during the staining process. Excessive heat can lead to premature degradation of staining reagents, while low temperatures may slow down the reaction rates, affecting the overall quality of the staining.
Humidity Levels
The ideal relative humidity for the operation of the YR436-1 is between 40% and 70%. High humidity levels can result in water condensation on electronic components, leading to malfunction, while low humidity may cause evaporation of reagents, impacting staining quality.
Ventilation Requirements
Proper ventilation is crucial to avoid the accumulation of fumes from chemicals used in the staining process. An adequately ventilated workspace will help maintain air quality and prevent any harmful interactions between reagents and environmental factors.
Installation Requirements for the YR436-1
Setting up the YR436-1 correctly is vital for ensuring optimal performance. The installation process involves several critical steps.
Unboxing and Inspection
Upon receiving the YR436-1, conduct a thorough inspection for any shipping damage. Ensure all components are included as per the manufacturer's checklist. Any discrepancies should be reported immediately.
Securing the Device
Place the YR436-1 on a stable laboratory bench that can support its weight (27 kg). Ensure the surface is level to avoid misalignment during operation. The device must be securely anchored to prevent any movement during use.
Power Supply Connections
The YR436-1 requires a power supply of AC220V ± 10% 50Hz or AC 110V ± 10% 60Hz. Check the voltage requirements and connect the device accordingly. Ensure that the power cord is in good condition and not exposed to moisture or potential damage.
Calibration and First Run
After ensuring the device is properly connected to power, perform the initial calibration. This step includes setting up the control panel and verifying the accuracy of the temperature and timing settings. Refer to the user manual for specific calibration procedures.
Common Installation Mistakes to Avoid
When installing the YR436-1, certain common mistakes can lead to performance issues. Here are some pitfalls to avoid:
- Inadequate Ventilation: Ensure the installation area is well-ventilated to avoid chemical build-up.
- Ignoring Electrical Specifications: Always adhere to the specified voltage and frequency requirements to prevent electrical issues.
- Improper Leveling: Ensure the device is level to avoid operational inconsistencies.
Site Preparation Checklist for the YR436-1
| Preparation Step | Description |
|---|---|
| Check Power Supply | Ensure voltage matches requirements (AC220V or AC110V). |
| Assess Room Temperature | Confirm the temperature is within the 15°C to 30°C range. |
| Monitor Humidity Levels | Maintain humidity between 40% and 70%. |
| Ensure Ventilation | Check that the area is well-ventilated. |
| Prepare Workspace | Ensure the surface is level and stable for the equipment. |
Frequently Asked Questions
What environmental conditions are ideal for the YR436-1?
The YR436-1 operates best within a temperature range of 15°C to 30°C and a relative humidity of 40% to 70%. Proper ventilation is also essential to maintain air quality and prevent chemical buildup.
How do I ensure proper installation of the YR436-1?
To ensure proper installation, verify that the area is stable and level, adhere to the specified electrical requirements, and conduct a thorough calibration after setup. It's important to unpack and inspect the equipment for any damages upon arrival.
What should I do if my YR436-1 is experiencing performance issues?
If the YR436-1 is experiencing performance issues, check the environmental conditions, ensure correct power supply connections, and verify calibration settings. Refer to the troubleshooting section of the user manual for specific guidance.
Can I use the YR436-1 in humid environments?
While the YR436-1 can function in humid environments, it is recommended to maintain humidity levels between 40% and 70% to prevent condensation on electronic components.
What is the power requirement for the YR436-1?
The YR436-1 requires a power supply of AC220V ± 10% 50Hz or AC 110V ± 10% 60Hz. Always check the electrical specifications before connecting the device.
How often should the YR436-1 be calibrated?
Calibration frequency can depend on usage, but it's advisable to calibrate the YR436-1 before first use and periodically thereafter, especially if the device has been moved or if it has experienced temperature fluctuations.
Where can I find replacement parts for the YR436-1?
Replacement parts for the YR436-1 can be obtained through authorized distributors or directly from the manufacturer. Always refer to the user manual for details on compatible parts.
