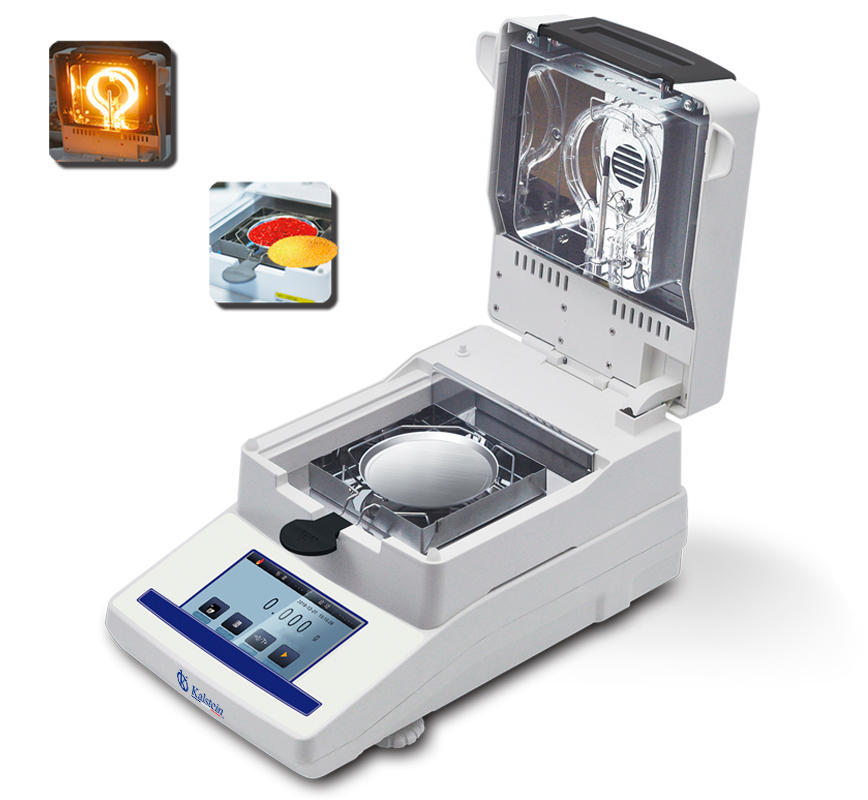

Understanding Environmental Conditions and Installation Requirements for the YR05557 Halogen Moisture Analyzer
The YR05557 Halogen Moisture Analyzer is a sophisticated device designed for accurately measuring moisture content in various materials. To ensure optimal performance and accuracy, it is crucial to understand the environmental conditions and installation requirements specific to this model. This guide provides an in-depth look at these factors, enabling users to utilize the YR05557 effectively.
Technical Specifications of the YR05557
| Parameter | Value |
|---|---|
| Model | YR05557 |
| Capacity | 110g |
| Readability | 0.001g |
| Operating Temperature | 5℃-35℃ |
| Screen | 5-inch Touchscreen |
| Calibration | External Calibration |
| Interface | RS232/RJ45/USB |
| Pan Size | Ø90mm |
| Packaging Size | 490x350x360mm |
| Gross Weight | 7.5 kg |
| Heating Source | Halogen Lamp-2 |
| Temperature Sensor | PT100 |
| Temperature Range | 40℃-199℃ |
| Temperature Step | 1℃ |
| Humidity Range | 0.00%-100.00% |
| Humidity Reading | 0.01% |
| Dry Range | 100.00%-0.00% |
| Dry Readability | 0.01% |
| Temperature Adjustment | 40℃-199℃ in 1℃ steps |
| Hour Configuration | 1-99 min in 10s steps |
| Storage Number | 20 |
| History Number | 20 |
| Heater | 220V ±15% 50HZ/110V ±15% 60HZ/400W |
| Balance | Input: 220V 50HZ/110V 60HZ Output: 9V |
Environmental Conditions for the YR05557
Understanding the environmental conditions in which the YR05557 operates is critical for accurate moisture analysis. The following factors must be considered:
- Operating Temperature: The analyzer is designed to function optimally within a temperature range of 5℃ to 35℃. Operating outside this range can affect measurement accuracy.
- Humidity Levels: The unit can measure humidity from 0.00% to 100.00%. Therefore, it is essential to maintain the surrounding environment within this range to ensure reliable readings.
- Ventilation: Adequate ventilation is necessary to dissipate heat generated by the halogen lamp. Poor ventilation can lead to overheating and potentially damaging the equipment.
- Vibration and EMI: The presence of vibrations and electromagnetic interference (EMI) can lead to inaccurate readings. It is advisable to place the analyzer on a stable surface away from sources of vibration.
- Clearances: Ensure that there is enough space around the device for proper airflow and accessibility during operation and maintenance.
Installation Requirements for the YR05557
Proper installation is key to the functionality of the YR05557 Halogen Moisture Analyzer. Follow these steps for a successful setup:
- Unboxing Checklist: When unboxing the YR05557, check for all components, including the analyzer, power cord, user manual, and any additional accessories.
- Location Selection: Choose a location that meets the environmental conditions outlined previously. The surface should be stable, level, and free from vibrations.
- Power Setup: Connect the analyzer to a power source that matches the required voltage (220V ±15% 50HZ or 110V ±15% 60HZ).
- Leveling the Device: Ensure the analyzer is level to avoid inaccurate readings. Use a spirit level for this process.
- First-Run Calibration: Upon powering up the device, perform an initial calibration as instructed in the user manual. This step is crucial for accurate measurements.
- Network/USB Setup: If applicable, connect the analyzer to a network or computer using the provided RS232/RJ45/USB interfaces.
Common Installation Mistakes
While setting up the YR05557, users often make several common mistakes that can lead to operational issues. Below are some errors to avoid:
- Ignoring Environmental Conditions: Failure to consider the temperature and humidity levels can lead to inaccurate measurements.
- Poor Ventilation: Overlooking the need for adequate ventilation can result in overheating.
- Improper Leveling: Not ensuring the device is level can result in faulty readings.
- Overloading the Analyzer: Exceeding the maximum capacity of 110g can damage the equipment.
Maintenance of the YR05557
Regular maintenance ensures the longevity and accuracy of the YR05557. Follow these tips:
- Routine Cleaning: Clean the exterior and interior of the device regularly to prevent dust accumulation that may affect performance.
- Periodic Calibration: Schedule regular recalibration intervals to maintain measurement accuracy.
- Check for Firmware Updates: Stay informed about any firmware updates that may enhance the analyzer’s performance.
- Monitor Environmental Conditions: Continuously monitor temperature and humidity levels to ensure they remain within the specified range for optimal readings.
Frequently Asked Questions
What are the ideal environmental conditions for operating the YR05557?
The ideal environmental conditions for operating the YR05557 include a temperature range of 5℃ to 35℃ and a humidity range of 0.00% to 100.00%. Proper ventilation and stable surfaces free from vibrations are also essential.
How do I calibrate the YR05557 for the first time?
To calibrate the YR05557 for the first time, follow the instructions in the user manual. Typically, this involves powering up the device, accessing the calibration menu, and using standard reference materials to ensure accurate measurements.
What maintenance is required for the YR05557?
Maintenance for the YR05557 includes routine cleaning, periodic calibration, checking for firmware updates, and monitoring environmental conditions to ensure they stay within the specified range.
What should I do if the YR05557 displays an error code?
If the YR05557 displays an error code, consult the user manual to identify the cause of the error. Common troubleshooting steps include checking for proper calibration, ensuring the device is level, and verifying that environmental conditions are within specifications.
Can the YR05557 be used in varying humidity conditions?
Yes, the YR05557 can measure moisture content in materials under varying humidity conditions, as it is designed to function accurately within the full range of 0.00% to 100.00% humidity.
What power requirements does the YR05557 have?
The YR05557 requires either 220V ±15% 50HZ or 110V ±15% 60HZ power supply. Ensure to connect it to a compatible voltage source to avoid damage.
Conclusion
Understanding the environmental conditions and installation requirements for the YR05557 Halogen Moisture Analyzer is essential for achieving accurate and reliable results. By ensuring optimal operating conditions, following correct installation procedures, and performing regular maintenance, users can maximize the performance of this valuable laboratory tool.
