Environmental Conditions and Installation Requirements for the YR02082 Surgical Pendant
The YR02082 Single Arm Surgical Pendant is essential for modern medical environments, including operating rooms, emergency rooms, intensive care units, and recovery areas. To ensure optimal performance and safety, it is crucial to understand the environmental conditions and installation requirements specific to this model. This guide delves into the necessary prerequisites for effectively setting up the YR02082 Surgical Pendant.

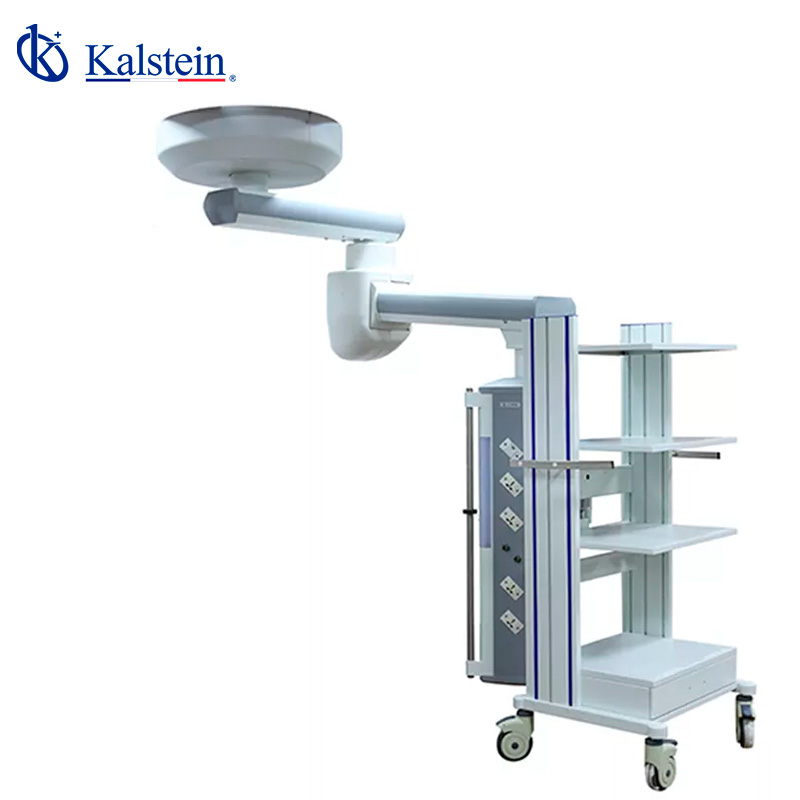

Understanding the YR02082 Surgical Pendant
The YR02082 is designed to enhance surgical workflows by providing easy access to medical devices and utilities. Its unique design allows for a rotational range of 340 degrees, enabling precise positioning of the terminal box, which is critical in emergency and surgical settings. The pendant is constructed from high-quality aluminum alloy, ensuring durability and a lightweight profile.
Technical Specifications of the YR02082
| Specification | Details |
|---|---|
| Model | YR02082 |
| Arm Rotating Radius | 800mm + 800mm |
| Arm Rotating Angle | 340° |
| Braking System | Friction brake |
| Maximum Load Capacity | 120 kg |
| Electrical Socket | 2 earth studs |
| Standard Configuration | 1 oxygen (O2), 1 air, 1 vacuum suction (VAC), 6x10A power outlets, 1 network socket, 1 grounding terminal |
| Annex | 2 pallets, 1 drawer, 1 infusion stand |
| Accessories | 2 equipment shelves, 1 IV pole & infusion pump rack |
Site Requirements for YR02082 Installation
To ensure the YR02082 Surgical Pendant operates effectively, specific site conditions must be met. These include:
- Temperature Range: The operating environment should maintain a temperature range of 20°C to 25°C for optimal performance.
- Humidity Levels: Humidity should be kept between 30% to 70% to prevent any electrical issues or condensation within the device.
- Voltage and Frequency: The pendant is designed to operate within a voltage range of 220-240V and a frequency of 50-60Hz.
- Ventilation: Adequate ventilation is necessary to prevent overheating. Ensure that there are no obstructions around the pendant.
- Vibration and EMI: The installation site should be free from excessive vibration and electromagnetic interference (EMI) to ensure accurate performance.
- Clearances: Maintain a clearance of at least 2 meters above the pendant to allow for full rotation and access.
- Drainage and Utilities: Ensure that the pendant is installed near gas and water supplies, as well as drainage systems, to facilitate its functions.
Installation Process for the YR02082
The installation of the YR02082 Surgical Pendant involves careful planning and execution. Here’s a brief overview of the critical steps:
- Unboxing and Inspection: Carefully unpack the pendant and inspect for any damage or missing components.
- Ceiling Preparation: Ensure the ceiling structure can support the weight of the pendant and that the installation area is clear.
- Mounting: Securely attach the pendant to the ceiling using the provided hardware, ensuring it is level and stable.
- Electrical Connections: Connect the electrical sockets according to the manufacturer's guidelines, ensuring all safety protocols are followed.
- Calibration: Once installed, calibrate the pendant’s functions and ensure all systems are operational.
- Final Inspection: Conduct a thorough inspection and ensure the pendant operates correctly before use.
Common Installation Mistakes to Avoid
Many issues can arise during the installation of the YR02082 if not approached carefully. Here are common mistakes to avoid:
- Neglecting site requirements, which can lead to operational failures.
- Improper mounting, which can cause instability and safety hazards.
- Incorrect electrical connections, which can lead to malfunction or damage.
- Failure to level the pendant, impacting its functionality.
Frequently Asked Questions
What are the environmental conditions required for the YR02082 Surgical Pendant?
The YR02082 requires a temperature range of 20°C to 25°C, humidity levels between 30% and 70%, and should operate at 220-240V with 50-60Hz frequency.
How does the YR02082 ensure stability during use?
The pendant features a robust construction with a friction braking system that maintains stability during operations. Additionally, proper ceiling mounting is crucial for its performance.
What is the maximum load capacity of the YR02082?
The YR02082 has a maximum load capacity of 120 kg, allowing it to carry various medical devices and utilities safely.
How important is site clearance for the installation of the YR02082?
Site clearance is essential; at least 2 meters of space above the pendant is required to allow full rotation and access to medical professionals.
What are the recommended accessories for the YR02082?
Recommended accessories include two equipment shelves and an IV pole with an infusion pump rack, which enhance the functionality of the pendant.
Can the YR02082 be used in different medical settings?
Yes, the YR02082 is versatile and can be used in operating rooms, emergency rooms, intensive care units, and recovery areas, adapting to various medical needs.
Request a Quote
If you are interested in the YR02082 Surgical Pendant, please reach out for a personalized quote. Our team is ready to assist you with your needs.
