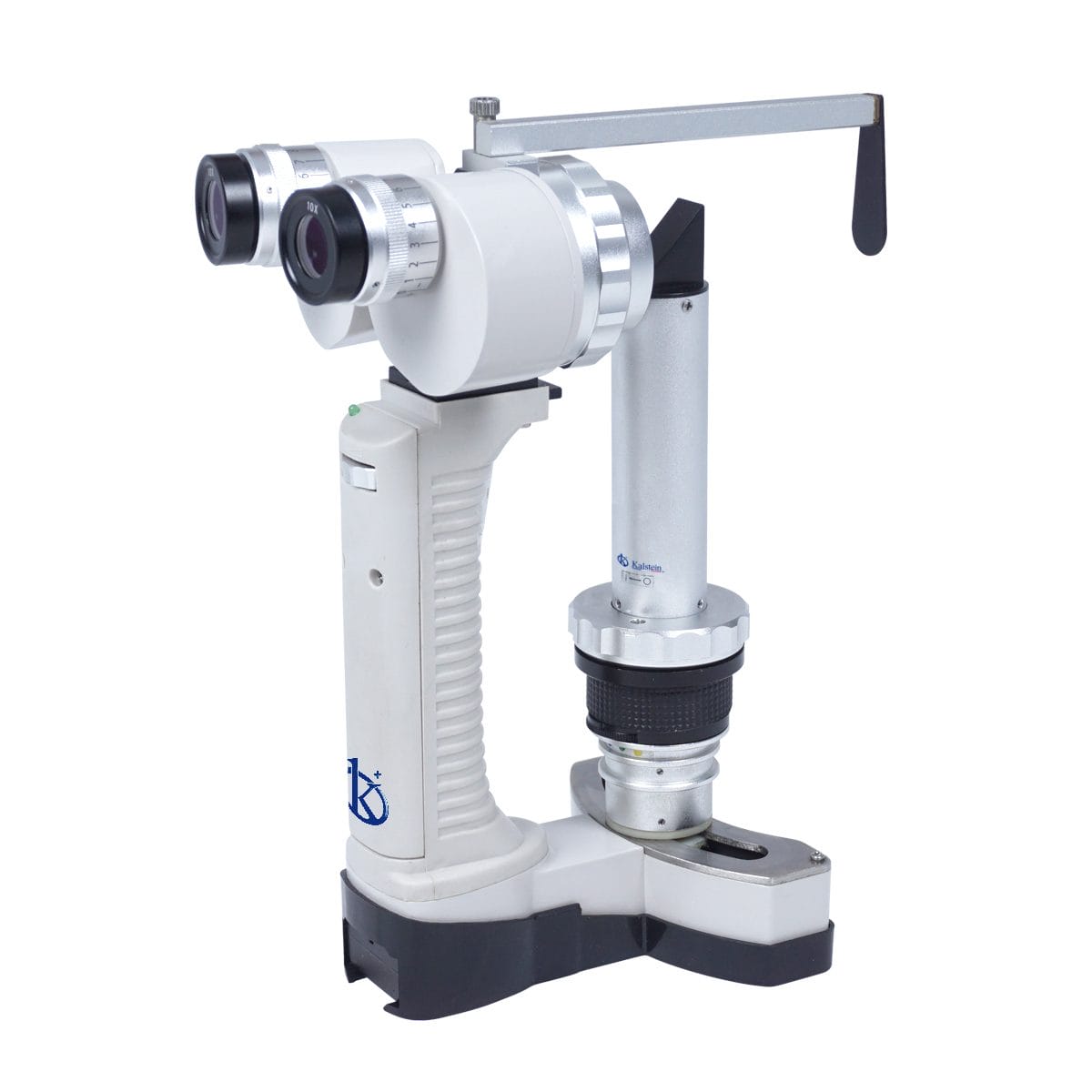

Customization Options and Advanced Configurations for the YR06199 Handheld Veterinary Slit Lamp
The YR06199 Handheld Veterinary Slit Lamp is a state-of-the-art instrument designed for veterinary applications, offering enhanced diagnostic capabilities thanks to its advanced features and modular configurations. This article delves into the customization options and advanced configurations available for the YR06199, ensuring that users can maximize the utility of this powerful tool in various veterinary settings.
Technical Specifications of the YR06199
| Model | YR06199 |
|---|---|
| Type | Handheld Veterinary Slit Lamp |
| Illumination Type | High-Brightness Cold Light LED |
| Brightness | >= 30000 Lux |
| Objective Lens Magnifications | 1.0X, 1.6X |
| Eyepiece Magnification | 10X |
| Total Magnifications | 10X, 16X |
| Weight | <= 700g (including battery) |
| Battery Life | 5-6 hours on full charge |
| Dimensions | 169.5mm x 109.5mm x 228.5mm |
Customization Options for the YR06199
The YR06199 offers various customization options that enhance its functionality and adaptability in different veterinary settings. Here are some options to consider:
- Lens Options: The YR06199 supports various objective lenses that enable different magnifications (1.0X, 1.6X). Depending on the specific requirements of veterinary examinations, users can opt for a lens that best suits their needs.
- Filter Modules: The slit lamp can utilize several filters, including heat absorption, yellow, red-free, and cobalt blue filters. These filters allow for enhanced imaging capabilities and improved visibility for specific examinations.
- Adjustable Slit Width and Height: The width of the slit can be continuously adjusted from 0 to 12mm, and the height can be set between 1 to 12mm. This customization allows for delicate adjustments depending on the animal and the area under examination.
- Ergonomic Design Choices: The YR06199 features a telescopic forehead rest and adjustable diopter settings, making it adaptable for different users and ensuring comfort during long examination sessions.
Advanced Configurations for Enhanced Performance
To further enhance the performance of the YR06199, several advanced configurations can be employed, allowing for tailored use in diverse clinical situations.
- Battery Management Configuration: Optimize the battery usage by configuring settings that extend the operating time. With a fully charged battery, the YR06199 can operate for 5-6 hours, making it ideal for fieldwork.
- Operation Modes: Users can switch between different operational modes to suit the specific needs of their veterinary practice. This includes settings for high brightness for detailed examinations or lower settings for routine checks.
- Mounting Accessories: Optional mounting accessories allow the YR06199 to be used in conjunction with other veterinary equipment, such as imaging devices or diagnostic tools, enhancing its versatility in clinical examination.
Filters and Accessories Compatibility
Utilizing appropriate filters and accessories can significantly improve the diagnostic capabilities of the YR06199. Here is a compatibility table for various filters:
| Filter Type | Purpose |
|---|---|
| Heat Absorption | Reduces thermal impact on tissues during examinations. |
| Yellow Filter | Enhances contrast during examinations. |
| Red-Free (Green) Filter | Improves visibility of retinal details. |
| Cobalt Blue Filter | Useful for fluorescence examinations. |
Site Requirements and Environmental Conditions
For optimal performance of the YR06199, specific site requirements and environmental conditions should be maintained. Here are some key considerations:
- Temperature Range: Ideal operating temperature should be maintained within 10-35°C.
- Humidity Levels: Relative humidity should ideally be between 30-70% to avoid moisture-related issues.
- Power Supply: Ensure a stable power supply to prevent disruptions during examinations.
Frequently Asked Questions
What are the main applications of the YR06199 in veterinary practice?
The YR06199 is primarily used for ocular examinations in veterinary practice, allowing veterinarians to assess eye health, diagnose conditions, and perform follow-up checks. Its adjustable slit width and various filters make it suitable for detailed examinations of small animals.
How can I replace the filters on the YR06199?
Replacing filters on the YR06199 is straightforward. Ensure the lamp is turned off, carefully remove the existing filter by releasing the locking mechanism, and replace it with the new filter, securing it in place. Always refer to the user manual for specific instructions.
What maintenance does the YR06199 require?
Regular maintenance includes cleaning the lens and filters, checking the battery condition, and ensuring all movable parts are functioning smoothly. It is recommended to conduct a thorough inspection before significant examinations or use.
Can the YR06199 be used outdoors?
Yes, the YR06199 is portable and can be used outdoors, provided environmental conditions such as temperature and humidity are within the specified ranges. Always protect the device from direct sun exposure and moisture.
How do I adjust the slit width and height?
To adjust the slit width and height on the YR06199, use the dedicated controls located on the lamp. The slit width can be adjusted continuously between 0-12mm, and the height settings range from 1-12mm for precise assessments.
What should I do if the YR06199 does not power on?
If the YR06199 does not power on, check the battery charge level and ensure it is properly installed. If the issue persists, inspect the connections for any damage or obstructions. Refer to the troubleshooting section of the manual for further guidance.
Where can I find additional accessories for the YR06199?
Additional accessories for the YR06199 can be sourced from authorized dealers or directly through the manufacturer. Ensure compatibility by checking part numbers and specifications.
To conclude, the YR06199 Handheld Veterinary Slit Lamp is an invaluable tool for veterinary professionals, providing numerous customization and configuration options to meet varied diagnostic needs. Explore these options to enhance your veterinary practice.
